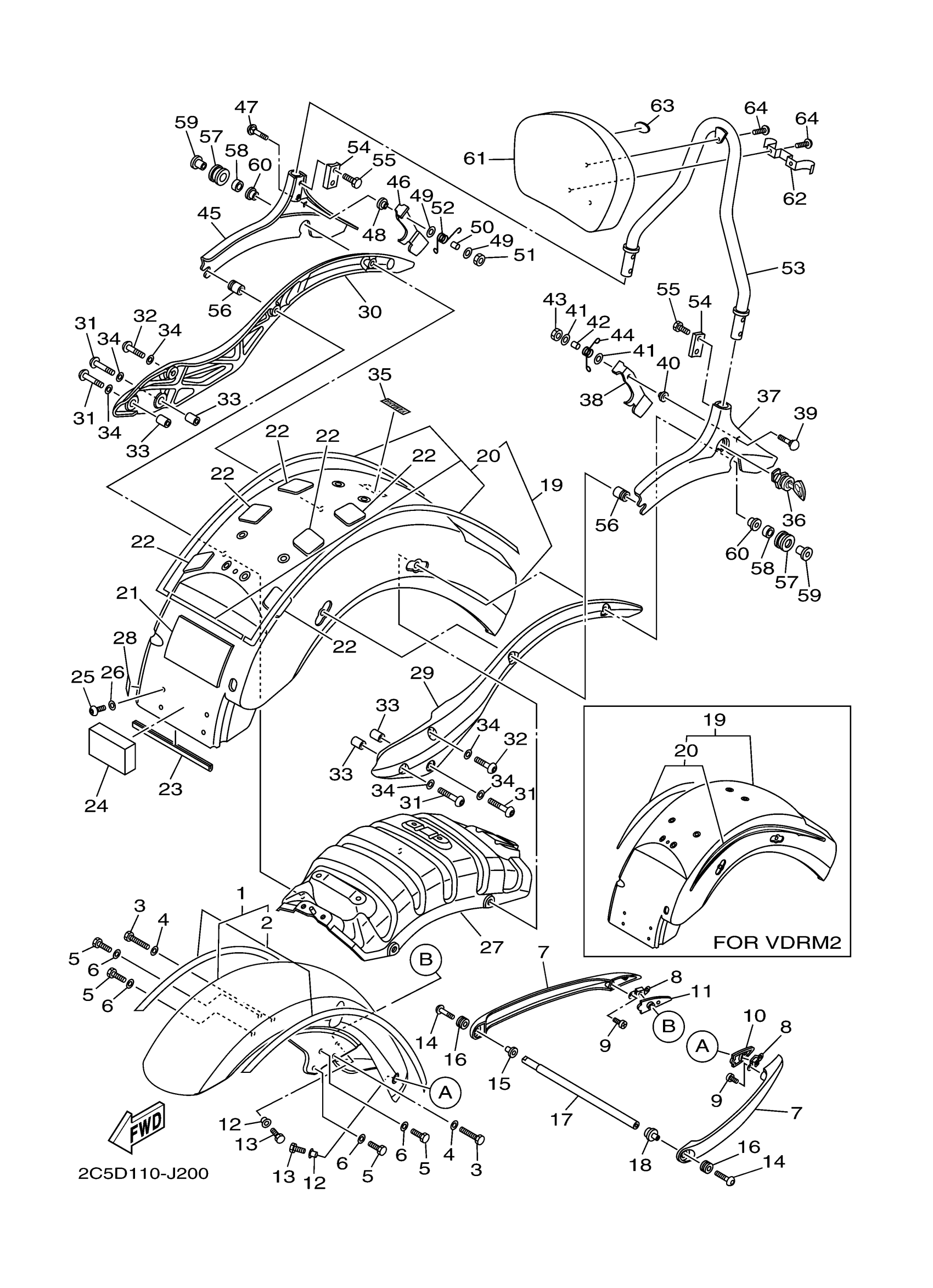

Yamaha XV19CTSZR (STRATOLINER S) 2C5D 2010 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

1D7-Y2151-J1-P0

Unavailable

2

GRAPHIC SET, FRONT FENDER

4P0-21570-40-00

Unavailable

3

BOLT, HEXAGON

97017-08030-00

$9.49

4

WASHER(6TA)

92907-08600-00

$3.03

5

BOLT, HEXAGON

97017-08016-00

$8.49

6

WASHER(6TA)

92907-08600-00

$3.03

7

STAY, FENDER 3

1D7-21562-01-00

$139.99

8

BRACKET, FENDER

1D7-21512-00-00

$7.99

9

SCREW, PAN TAP.2 SLIT

97707-40610-00

$8.49

10

DAMPER 1

1D7-21541-00-00

$7.99

11

DAMPER 2

1D7-21542-00-00

Unavailable

12

COLLAR(50M)

90387-087L0-00

$8.49

13

BOLT

97012-06014-00

$7.49

14

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

15

COLLAR

90387-06125-00

$8.49

16

GROMMET (16R)

90480-14329-00

Unavailable

17

COLLAR 1

1D7-21544-00-00

Unavailable

18

PLATE 3

1D7-21545-00-00

Unavailable

19

REAR FENDER COMP.

1D7-Y2161-M0-P0

Unavailable

20

GRAPHIC SET,REAR FENDER

2C5-2165A-00-00

Unavailable

21

DAMPER, LOCATING 2

5PX-21779-00-00

Unavailable

22

SEAL

5PX-21669-01-00

Unavailable

23

MOLD, FUEL TANK

1D7-24188-00-00

Unavailable

24

DAMPER 2

1D7-21639-00-00

Unavailable

25

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

26

WASHER, PLATE

90201-06036-00

Unavailable

27

STAY, REAR

1D7-21643-00-00

Unavailable

28

SEAL 1

3FY-21575-01-00

Unavailable

29

STAY, FENDER 1

1D7-21613-00-00

Unavailable

30

STAY, FENDER 2

1D7-21614-00-00

Unavailable

31

BOLT, BUTTON HEAD(3LS)

92014-10050-00

Unavailable

32

BOLT, BUTTON HEAD

92014-10040-00

Unavailable

33

PIN, DOWEL

99530-14016-00

Unavailable

34

WASHER, PLATE

90201-10081-00

Unavailable

35

EMBLEM, YAMAHA

3WF-2153E-71-00

Unavailable

36

LOCK ASSY,2

2C5-28409-01-00

Unavailable

37

PLATE,4

2C5-F846H-00-00

Unavailable

38

HOOK

2C5-F8488-00-00

Unavailable

39

SHAFT 1

2C5-F844M-00-00

Unavailable

40

SPACER

2C5-F8467-00-00

Unavailable

41

WASHER

2C5-F8319-00-00

Unavailable

42

PLATE, GUIDE

2C5-F849T-00-00

Unavailable

43

NUT, U

95680-06100-00

Unavailable

44

SPRING

2C5-F8489-00-00

Unavailable

45

PLATE 5

2C5-F847H-00-00

Unavailable

46

HOOK 2

2C5-F8498-00-00

Unavailable

47

SHAFT 1

2C5-F844M-00-00

Unavailable

48

SPACER

2C5-F8467-00-00

Unavailable

49

WASHER

2C5-F8319-00-00

Unavailable

50

PLATE, GUIDE

2C5-F849T-00-00

Unavailable

51

NUT, U

95680-06100-00

Unavailable

52

SPRING 2

2C5-F848A-00-00

Unavailable

53

PSNGER BKRST UPRIGHT TALL, CHR

STR-2C541-30-02

Unavailable

54

PLATE

2C5-F8417-00-00

Unavailable

55

BOLT, HEXAGON

97014-08020-00

Unavailable

56

PIN, STOPPER

2C5-F842L-00-00

Unavailable

57

STOPPER, OPEN

2C5-F845L-00-00

Unavailable

58

DAMPER, LOCATING 1

2C5-F836T-00-00

Unavailable

59

SPACER

2C5-F8329-00-00

Unavailable

60

DAMPER 3

2C5-F8425-00-00

Unavailable

61

BACK REST ASSY

1D6-2840F-11-00

Unavailable

62

STAY 2

5GA-2164G-00-00

Unavailable

63

EMBLEM

5GA-24786-01-00

Unavailable

64

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable
