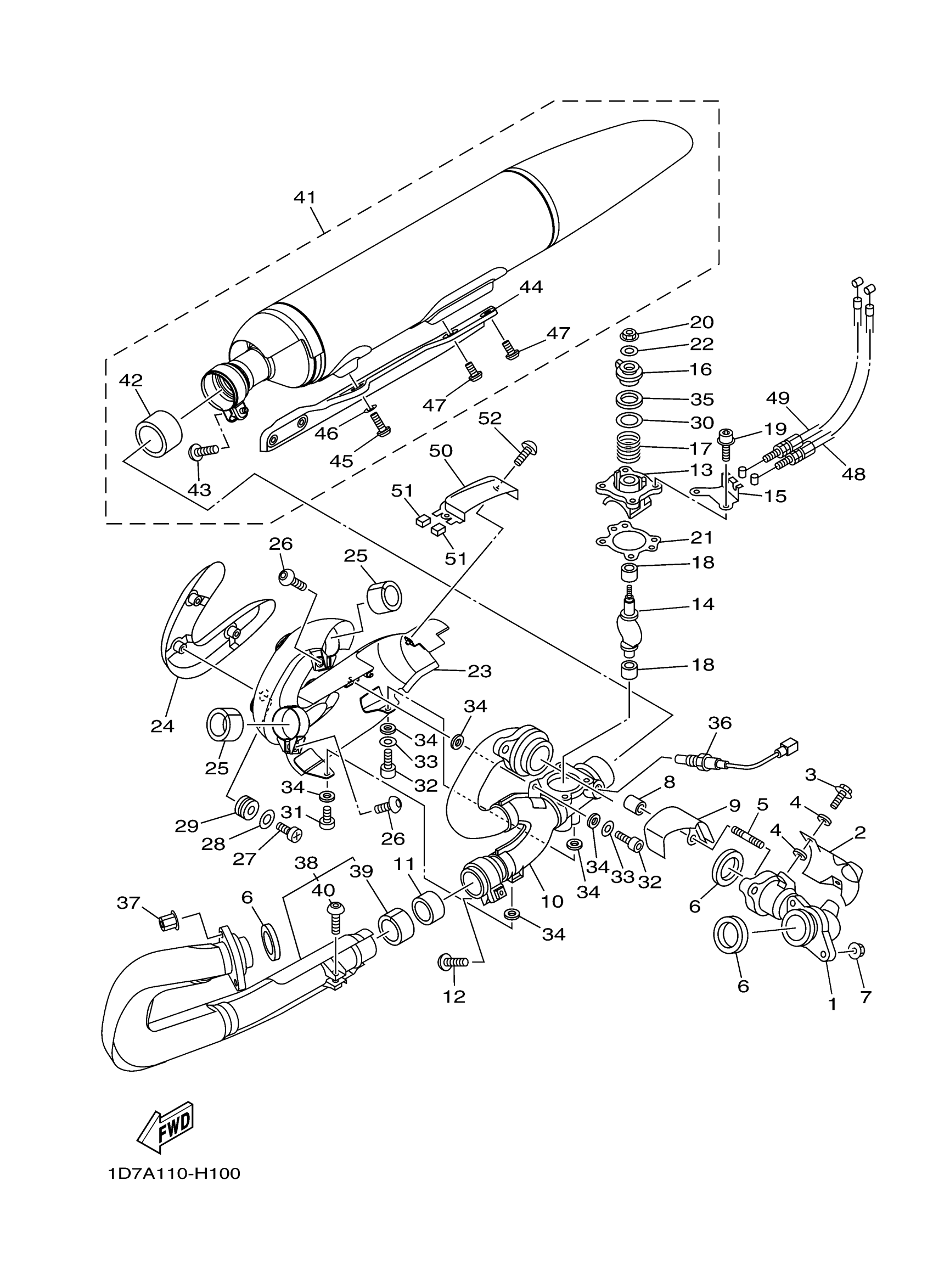

Yamaha XV19CTSZR (STRATOLINER S) 2C5D 2010 EXHAUST Diagram

#

Description
Price

1

JOINT, EXHAUST 1

1D7-14615-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

1D7-14628-00-00

Unavailable

3

BOLT, FLANGE

95880-06012-00

$4.14

4

WASHER, PLATE

90201-05015-00

$8.49

5

BOLT, STUD 3

95617-08630-00

$4.99

6

GASKET, EXHAUST PIPE

3EG-14613-00-00

$23.99

7

NUT, SELF-LOCKING(3BN)

90185-08146-00

$9.49

8

NUT

90179-08022-00

$12.49

9

COVER, EXHAUST

1D7-14624-00-00

$95.99

10

EXHAUST PIPE COMP.

1D7-14602-01-00

$398.99

11

GASKET, SILENCER

5YU-14755-00-00

$30.99

12

BOLT, BUTTON HEAD(3YF)

92014-08035-00

$8.49

13

HOUSING

1D7-14811-01-00

Unavailable

14

ARM, SHAFT (VALVE)

1D7-14821-00-00

Unavailable

15

BRACKET

1D7-14849-00-00

Unavailable

16

PULLEY

1D7-14865-01-00

Unavailable

17

SPRING

1D7-14856-00-00

Unavailable

18

COLLAR

5VY-14638-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-06025-00

Unavailable

20

NUT

90179-06063-00

Unavailable

21

GASKET 3

1D7-14643-00-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

23

PROTECTOR, MUFFLER 1

1D7-14718-01-00

Unavailable

24

PROTECTOR, MUFFLER 2

1D7-14728-00-00

Unavailable

25

GASKET, MUFFLER

1D7-14714-00-00

Unavailable

26

BOLT, BUTTON

92014-08020-00

Unavailable

27

SCREW, BIND(J45)

98980-06012-00

Unavailable

28

WASHER, PLATE

90201-06081-00

Unavailable

29

GROMMET

90480-17001-00

Unavailable

30

VALVE, PLATE

5VY-14674-00-00

Unavailable

31

SCREW, BIND(J45)

98980-06012-00

Unavailable

32

BOLT, SOCKET

91314-06016-00

Unavailable

33

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

34

WASHER, PLATE

90201-05015-00

$8.49

35

COLLAR 2

5VY-14648-00-00

Unavailable

36

SENSOR

1D7-8592A-00-00

Unavailable

37

NUT (22U)

90179-08410-00

Unavailable

38

EXHAUST PIPE ASSY 2

1D7-14620-00-00

Unavailable

39

GASKET, MUFFLER

1D7-14714-00-00

Unavailable

40

BOLT, BUTTON

92014-08020-00

Unavailable

41

MUFFLER ASSY 1

1D7-14710-01-00

Unavailable

42

GASKET, MUFFLER

5YU-14714-00-00

Unavailable

43

BOLT, BUTTON HEAD(3YF)

92014-08035-00

$8.49

44

MUFF. STAY SUB-KUMI

1D7-21440-00-00

Unavailable

45

BOLT

90111-08030-00

Unavailable

46

WASHER, PLATE

90201-08048-00

Unavailable

47

BOLT

90111-08029-00

Unavailable

48

CABLE, PULLEY 1

1D7-1133E-01-00

Unavailable

49

CABLE, PULLEY 2

1D7-1133F-00-00

Unavailable

50

PROTECTOR, EXHAUST

1D7-14826-00-00

Unavailable

51

DAMPER, LOCATING 1

3MA-24181-00-00

Unavailable

52

BOLT, BUTTON HEAD

92014-06010-00

Unavailable
