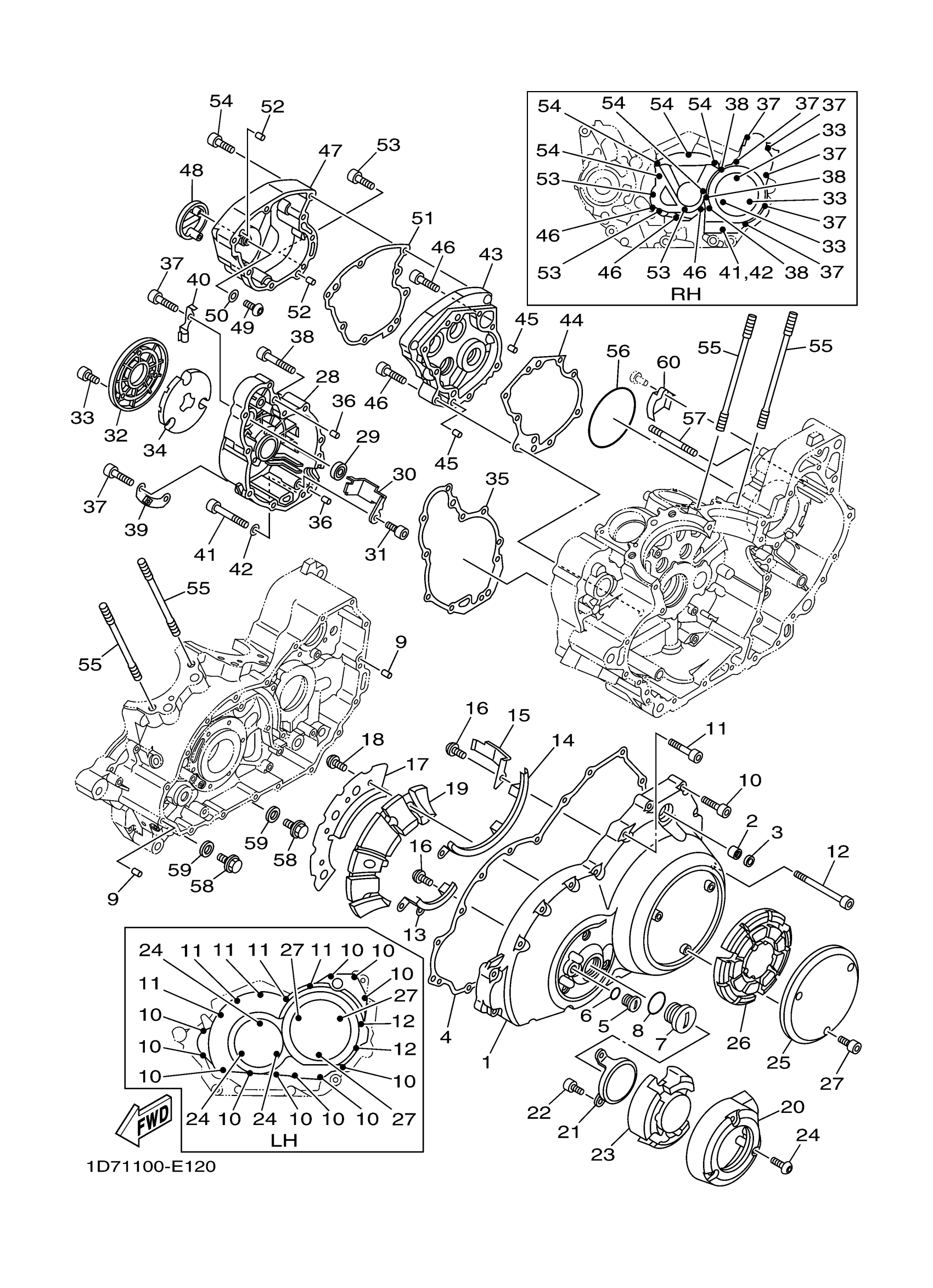

Yamaha XV19CTSZR (STRATOLINER S) 2C5D 2010 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1D7-15411-00-00

Unavailable

2

BEARING

93317-11287-00

$23.99

3

OIL SEAL (4G0)

93102-12224-00

$10.49

4

GASKET, CRANKCASE COVER 1

1D7-15451-00-00

Unavailable

5

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

6

O-RING (2H9)

93210-14369-00

$7.49

7

PLUG, STRAIGHT SCREW(2GV)

90340-32116-00

$15.49

8

O-RING (341)

93210-32172-00

$7.49

9

PIN, DOWEL

99530-08012-00

Unavailable

10

BOLT, SOCKET

91314-06035-00

$8.49

11

BOLT, SOCKET

91314-06045-00

$8.49

12

BOLT,SOCKET

91314-06100-00

Unavailable

13

GUIDE 1

1D7-15142-00-00

Unavailable

14

GUIDE

1D7-15143-00-00

$9.99

15

CLAMP 2

5C7-15484-00-00

Unavailable

16

SCREW

90149-06068-00

Unavailable

17

SHIM, KICK SHAFT

1D7-15645-01-00

Unavailable

18

SCREW

90149-06068-00

Unavailable

19

DAMPER 2

1D7-1542B-01-00

Unavailable

20

COVER 2

1D7-15423-00-00

Unavailable

21

COVER, GENERATOR 2

1D7-15425-00-00

Unavailable

22

BOLT

91312-05010-00

Unavailable

23

DAMPER, ENGINE MOUNT 1

1D7-15316-00-00

Unavailable

24

BOLT, BUTTON HEAD

92014-06040-00

Unavailable

25

COVER, GENERATOR

1D7-15415-00-00

Unavailable

26

DAMPER 1

1D7-1542A-00-00

Unavailable

27

BOLT,SOCKET HEAD

91314-06012-00

Unavailable

28

COVER, CRANKCASE 2

1D7-15421-00-00

Unavailable

29

BRG,R-B 6000 26MM 19G KY

93306-00004-00

Unavailable

30

GUIDE, INLET

4WM-15377-00-00

Unavailable

31

SCREW

90149-06156-00

Unavailable

32

COVER

1D7-15492-00-00

Unavailable

33

BOLT, SOCKET

91314-05010-00

Unavailable

34

DAMPER, ENGINE MOUNT 2

1D7-15326-00-00

Unavailable

35

GASKET, CRANKCASE COVER 2

1D7-15461-00-00

Unavailable

36

PIN, DOWEL

99530-08012-00

Unavailable

37

BOLT, SOCKET

91314-06035-00

$8.49

38

BOLT,SOCKET

91314-06055-00

Unavailable

39

PLATE, MIRROR FITTING 1

1D7-26298-00-00

Unavailable

40

BRACKET

1D7-2612E-00-00

Unavailable

41

BOLT, SOCKET

91314-06065-00

Unavailable

42

GASKET 256113960000

90430-06014-00

Unavailable

43

CRANKCASE COVER ASSY 3

1D7-15430-01-00

Unavailable

44

GASKET, CRANKCASE COVER 3

1D7-15462-00-00

Unavailable

45

PIN, DOWEL

99530-08012-00

Unavailable

46

BOLT, HEXAGON SOCKET HEAD

90110-06299-00

Unavailable

47

COVER, SHIFTER

1D7-15429-00-00

Unavailable

48

COVER, CAP 2

1D7-15427-00-00

Unavailable

49

SCREW

90149-06068-00

Unavailable

50

GASKET 256113960000

90430-06014-00

Unavailable

51

GASKET, DECOMPRESSION

1D7-12286-00-00

Unavailable

52

PIN, DOWEL

99530-08012-00

Unavailable

53

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

54

BOLT, SOCKET

91314-06040-00

Unavailable

55

BOLT, STUD

90116-12240-00

Unavailable

56

O-RING (173)

93210-85075-00

Unavailable

57

BOLT, STUD

90116-10028-00

Unavailable

58

PLUG, STRAIGHT SCREW

90340-14005-00

Unavailable

59

GASKET

214-11198-01-00

Unavailable

60

COVER

1D7-15413-00-00

Unavailable
