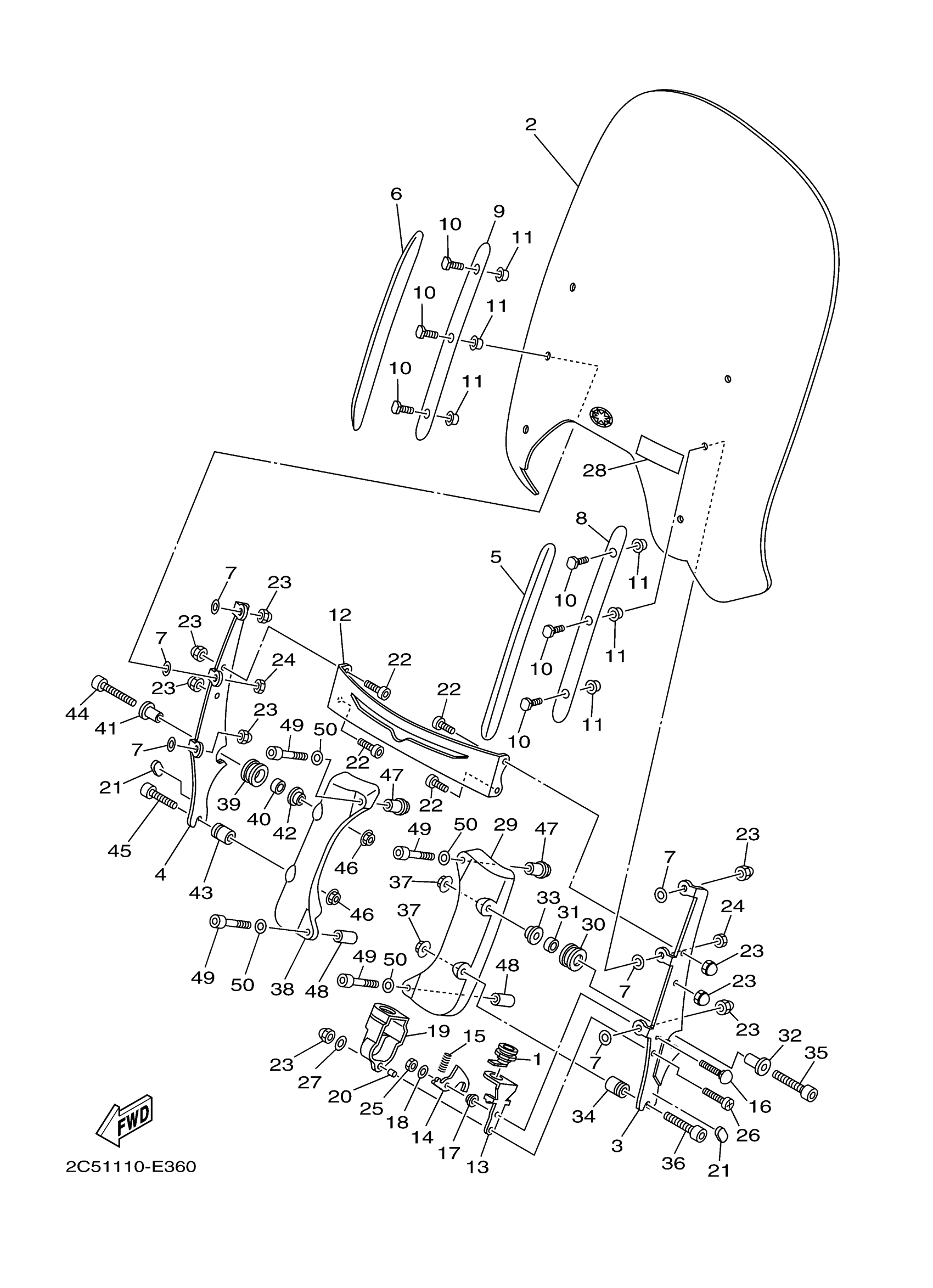

Yamaha XV19CTSZR (STRATOLINER S) 2C5D 2010 COWLING Diagram
#
1
LOCK ASSY,2
2C5-28409-01-00
Unavailable
2
WINDSCREEN REPLACEMENT, MED
STR-2C507-11-00
Unavailable
3
BRACKET 1
2C5-F836A-00-00
Unavailable
4
BRACKET 2
2C5-F836E-00-00
Unavailable
5
PLATE
2C5-F8336-00-00
Unavailable
6
HOLDER
2C5-F8337-00-00
Unavailable
7
DAMPER
2C5-F8371-00-00
Unavailable
8
DAMPER
2C5-F8372-00-00
Unavailable
9
DAMPER 5
2C5-F837J-00-00
Unavailable
10
BOLT, LEG SHIELD
2C5-F8331-00-00
Unavailable
11
COLLAR
2C5-F8373-00-00
Unavailable
12
PLATE, FRONT
2C5-F8361-00-00
Unavailable
13
STAY 1
2C5-F8356-00-00
Unavailable
14
HOOK
2C5-F8379-00-00
Unavailable
15
SPRING
2C5-F8388-00-00
Unavailable
16
BOLT
2C5-F8333-00-00
Unavailable
17
STAY 1
2C5-F8321-00-00
Unavailable
18
WASHER
2C5-F8319-00-00
Unavailable
19
COVER
2C5-F8365-00-00
Unavailable
20
STAY 2
2C5-F8322-00-00
Unavailable
21
DAMPER 3
2C5-F834E-00-00
Unavailable
22
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
23
NUT (J17)
95380-06800-00
Unavailable
24
NUT, HEXAGON
95314-06600-00
Unavailable
25
NUT, U
95680-06100-00
Unavailable
26
SCREW, BIND (705)
98980-06016-00
Unavailable
27
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
28
LABEL, NOTICE WINDSHIELD 1
2C5-F815K-00-00
Unavailable
29
BRACKET 3
2C5-F836F-00-00
Unavailable
30
STOPPER 1
2C5-F83D1-00-00
Unavailable
31
DAMPER, LOCATING 1
2C5-F836T-00-00
Unavailable
32
SPACER
2C5-F8329-00-00
Unavailable
33
STAY, LEG SHIELD
2C5-F8332-00-00
Unavailable
34
STOPPER 2
2C5-F83D2-00-00
Unavailable
35
BOLT, BUTTON HEAD(3YF)
92014-08035-00
Unavailable
36
BOLT, BUTTON HEAD
92014-08030-00
Unavailable
37
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
38
BRACKET 4
2C5-F836G-00-00
Unavailable
39
STOPPER 1
2C5-F83D1-00-00
Unavailable
40
DAMPER, LOCATING 1
2C5-F836T-00-00
Unavailable
41
SPACER
2C5-F8329-00-00
Unavailable
42
STAY, LEG SHIELD
2C5-F8332-00-00
Unavailable
43
STOPPER 2
2C5-F83D2-00-00
Unavailable
44
BOLT, BUTTON HEAD(3YF)
92014-08035-00
Unavailable
45
BOLT, BUTTON HEAD
92014-08030-00
Unavailable
46
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
47
STAY 2
2C5-F8357-00-00
Unavailable
48
STAY 3
2C5-F8358-00-00
Unavailable
49
BOLT,SOCKET
91314-08045-00
Unavailable
50
WASHER, PLAIN
92990-08200-00
Unavailable
