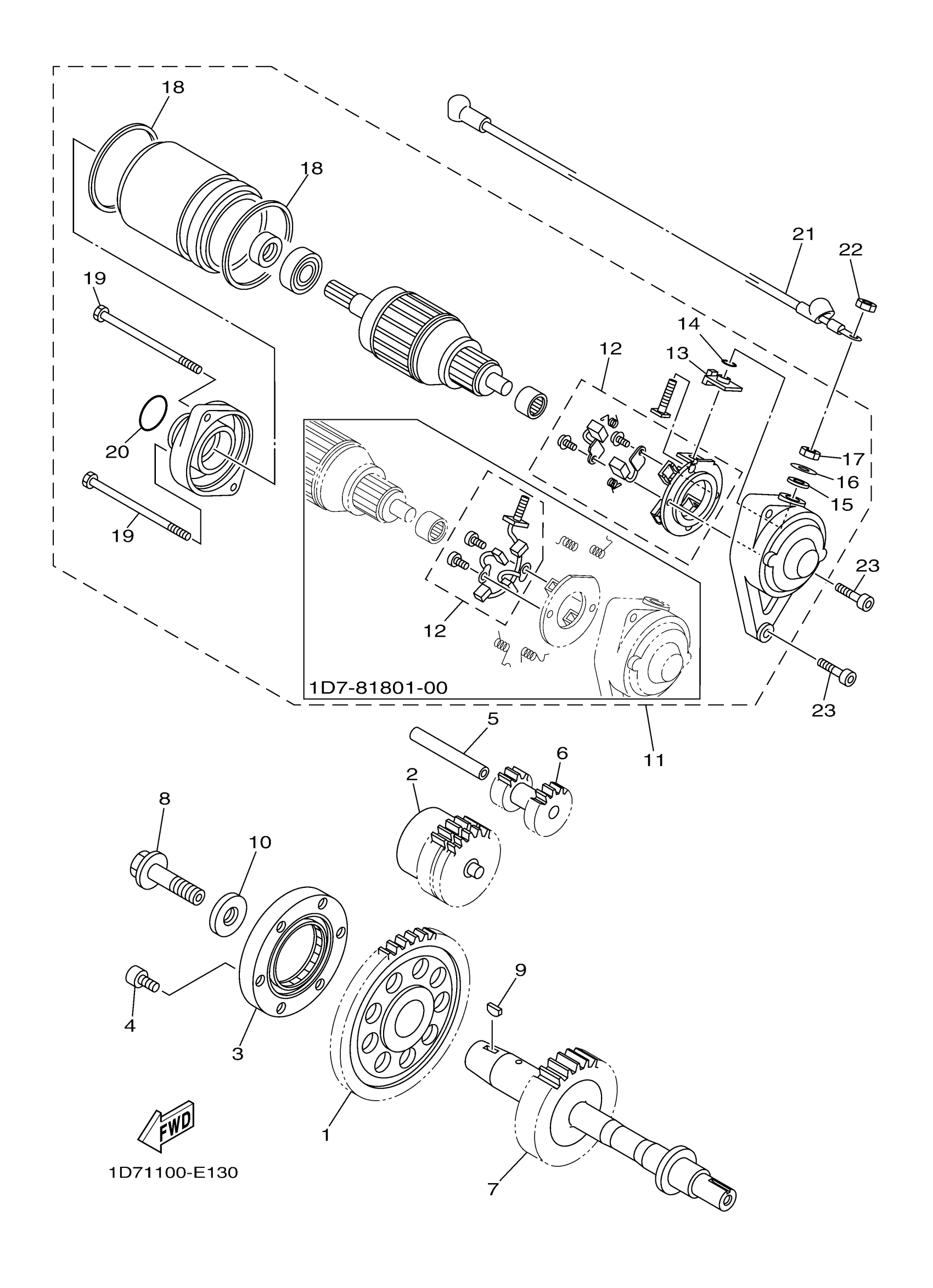

Yamaha XV19CTSZCB (STRATOLINER DELUXE CA) 2C5E 2010 STARTER Diagram

#

Description
Price

1

GEAR 3

1D7-15515-00-00

$176.99

2

DAMPER ASSY

1D7-15560-10-00

$518.99

3

STARTER ONE-WAY ASSY

4WM-15590-00-00

$305.99

4

BOLT, SOCKET

91317-08016-00

$8.49

5

SHAFT 1

1D7-15521-00-00

Unavailable

6

GEAR, IDLER 1

1D7-15512-00-00

Unavailable

7

SHAFT

1D7-15659-00-00

Unavailable

8

BOLT, WASHER BASED

90105-12005-00

$29.99

9

KEY, WOODRUFF

90280-05001-00

$12.49

10

WASHER, PLATE

90201-12008-00

$14.99

11

MOTOR ASSY

1D7-81890-01-00

$326.99

11

MOTOR ASSY

1D7-81890-01-00

$326.99

12

BRUSH SET

1D7-81801-00-00

$73.99

12

BRUSH SET

2S3-81801-00-00

$82.99

13

BUSH, TERMINAL

5PX-8182G-00-00

$6.99

14

O-RING (26H)

93210-06632-00

Unavailable

15

WASHER, PLAIN

5PX-8181L-00-00

Unavailable

16

WASHER, PLATE (8H9)

90201-06726-00

Unavailable

17

NUT(650)

95380-06700-00

Unavailable

18

GASKET

1D7-81861-00-00

Unavailable

19

SCREW

5PX-81846-00-00

Unavailable

20

O-RING(1RL)

93210-25711-00

Unavailable

21

CORD COMP.

1D7-8183G-00-00

Unavailable

22

NUT(650)

95380-06700-00

Unavailable

23

BOLT,SOCKET HEAD

91314-06025-00

Unavailable
