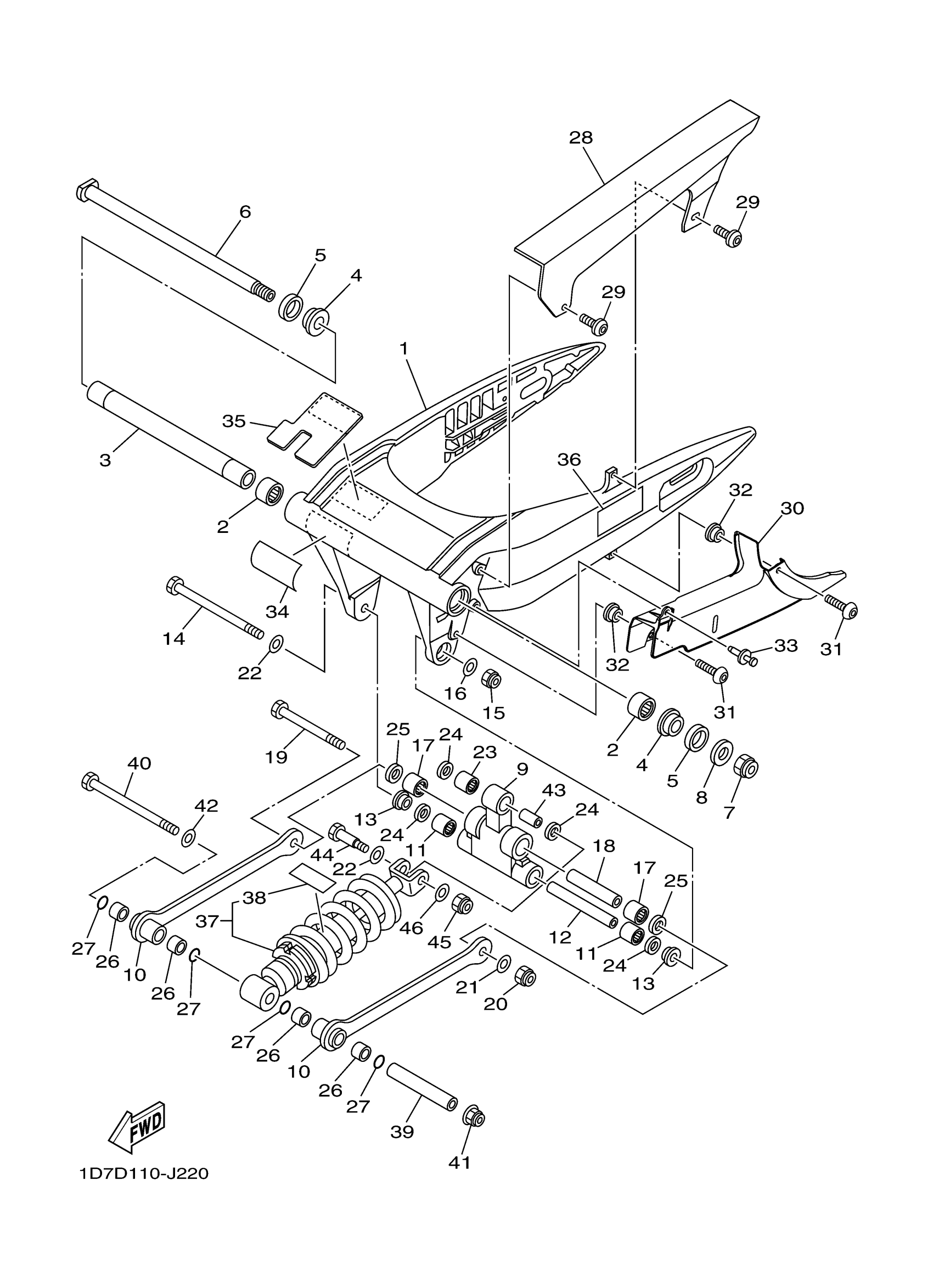

Yamaha XV19CTSZCB (STRATOLINER DELUXE CA) 2C5E 2010 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

1D7-22110-01-00

Unavailable

2

BEARING

93317-42599-00

$29.99

3

BUSH

1D7-22184-00-00

Unavailable

4

COLLAR, DISTANCE

1D7-22126-00-00

Unavailable

5

OIL SEAL(23Y)

93109-33052-00

$15.99

6

SHAFT, PIVOT

5PX-22141-10-00

$70.99

7

NUT, SELF-LOCKING

90185-18009-00

$18.99

8

WASHER, PLATE

90201-18020-00

Unavailable

9

ARM, RELAY

1D7-2217A-01-00

Unavailable

10

ARM 1

1D7-2217M-00-00

$188.99

11

BEARING

93317-31798-00

Unavailable

12

COLLAR, ROD 1

1D7-2248B-00-00

Unavailable

13

COLLAR

90387-12032-00

Unavailable

14

BOLT

90101-12018-00

$12.49

15

NUT, U (4PM)

95617-12100-00

$4.16

16

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

17

BEARING, CYLINDRICAL(4RR)

93315-32053-00

Unavailable

18

COLLAR

90387-12035-00

Unavailable

19

BOLT(2GH)

90101-12673-00

Unavailable

20

NUT, U (4PM)

95617-12100-00

$4.16

21

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

22

WASHER, PLATE

90201-13013-00

Unavailable

23

BEARING

93315-31759-00

Unavailable

24

OIL SEAL

93109-17071-00

Unavailable

25

OIL SEAL

93109-20001-00

Unavailable

26

BUSH, BIMETAL FORMED (5X6)

90384-18157-00

Unavailable

27

O-RING (1L9)

93210-18322-00

Unavailable

28

CHAIN CASE ASSY

1D7-22310-20-00

Unavailable

29

SCREW(3XV)

90149-06298-00

Unavailable

30

CASE, CHAIN 2

1D7-22312-00-00

Unavailable

31

SCREW(3XV)

90149-06298-00

Unavailable

32

COLLAR

90387-065T2-00

Unavailable

33

RIVET

90269-08001-00

Unavailable

34

SEAL 1

1D7-22358-00-00

Unavailable

35

COVER, THRUST 1

1D7-22128-00-00

Unavailable

36

PLATE, EPA (NON CALIFORNIA)

1D7-2179W-40-00

Unavailable

37

SHOCK ABSORBER ASSY, REAR

2C5-22210-00-00

Unavailable

38

LABEL, WARNING

4AA-22259-80-00

Unavailable

39

COLLAR

90387-1214E-00

Unavailable

40

BOLT

90101-12017-00

Unavailable

41

NUT, U FLANGE

95607-12200-00

Unavailable

42

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

43

COLLAR(3TJ)

90387-127W0-00

Unavailable

44

BOLT(1WG)

90101-10659-00

Unavailable

45

NUT, U

95617-10100-00

Unavailable

46

WASHER, PLATE(47X)

90201-101J1-00

Unavailable
