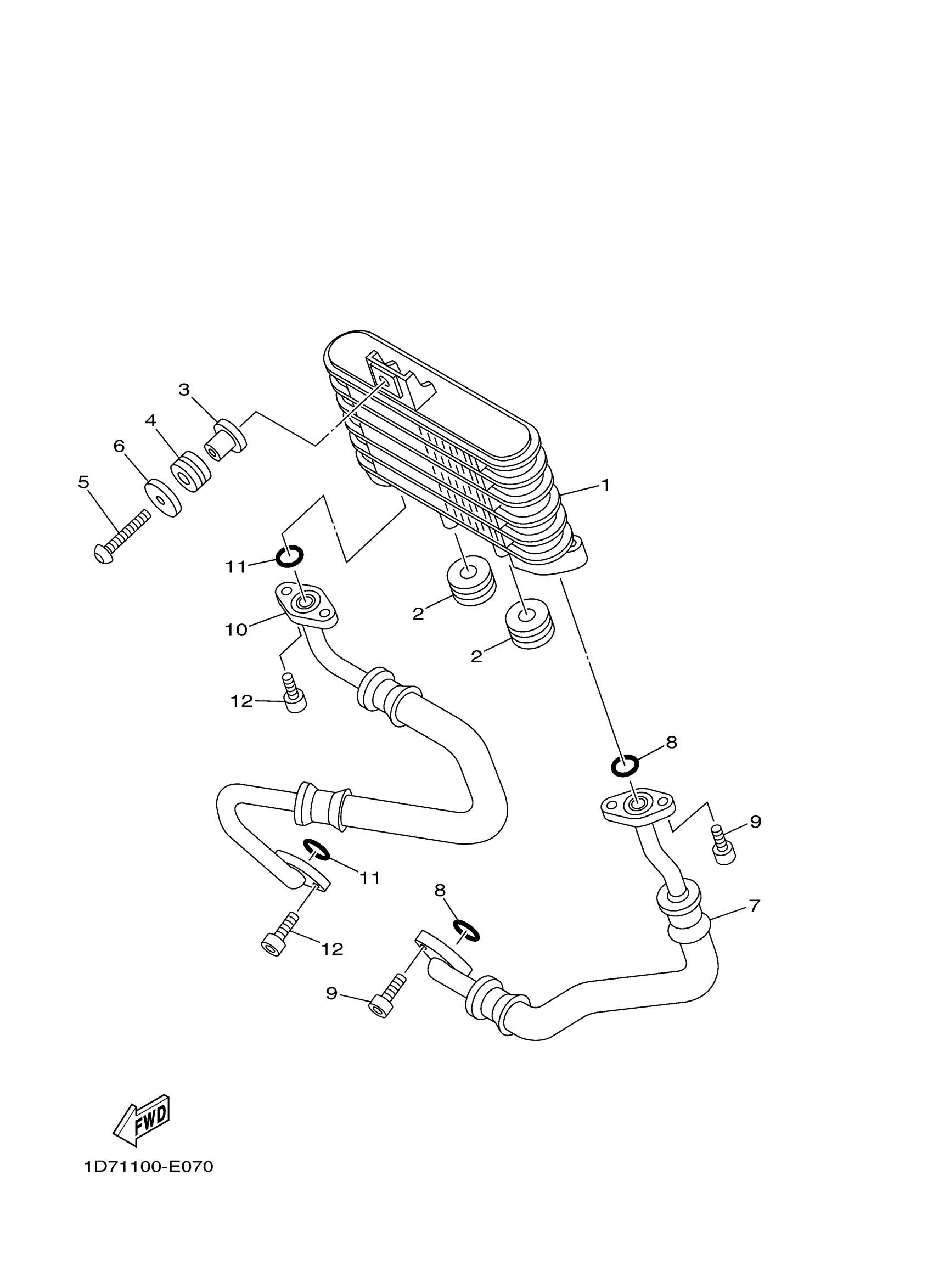

Yamaha XV19CTSZCB (STRATOLINER DELUXE CA) 2C5E 2010 OIL COOLER Diagram

#

Description

Price

1

OIL COOLER ASSY

1D7-13470-00-00

Unavailable

2

GROMMET(2GH)

90480-12475-00

$8.49

3

COLLAR(46X)

90387-063L7-00

$9.49

4

GROMMET(3SX)

90480-14532-00

$4.67

5

BOLT, BUTTON

92017-06030-00

$8.49

6

WASHER, PLATE(1JK)

90201-064K6-00

$9.49

7

HOSE, OIL 1

1D7-1316F-01-00

$187.99

8

O-RING (2H7)

93210-13361-00

$5.60

9

BOLT, SOCKET

91314-06016-00

$8.49

10

HOSE, OIL 2

1D7-1316G-00-00

Unavailable

11

O-RING (2H7)

93210-13361-00

$5.60

12

BOLT, SOCKET

91314-06016-00

$8.49
