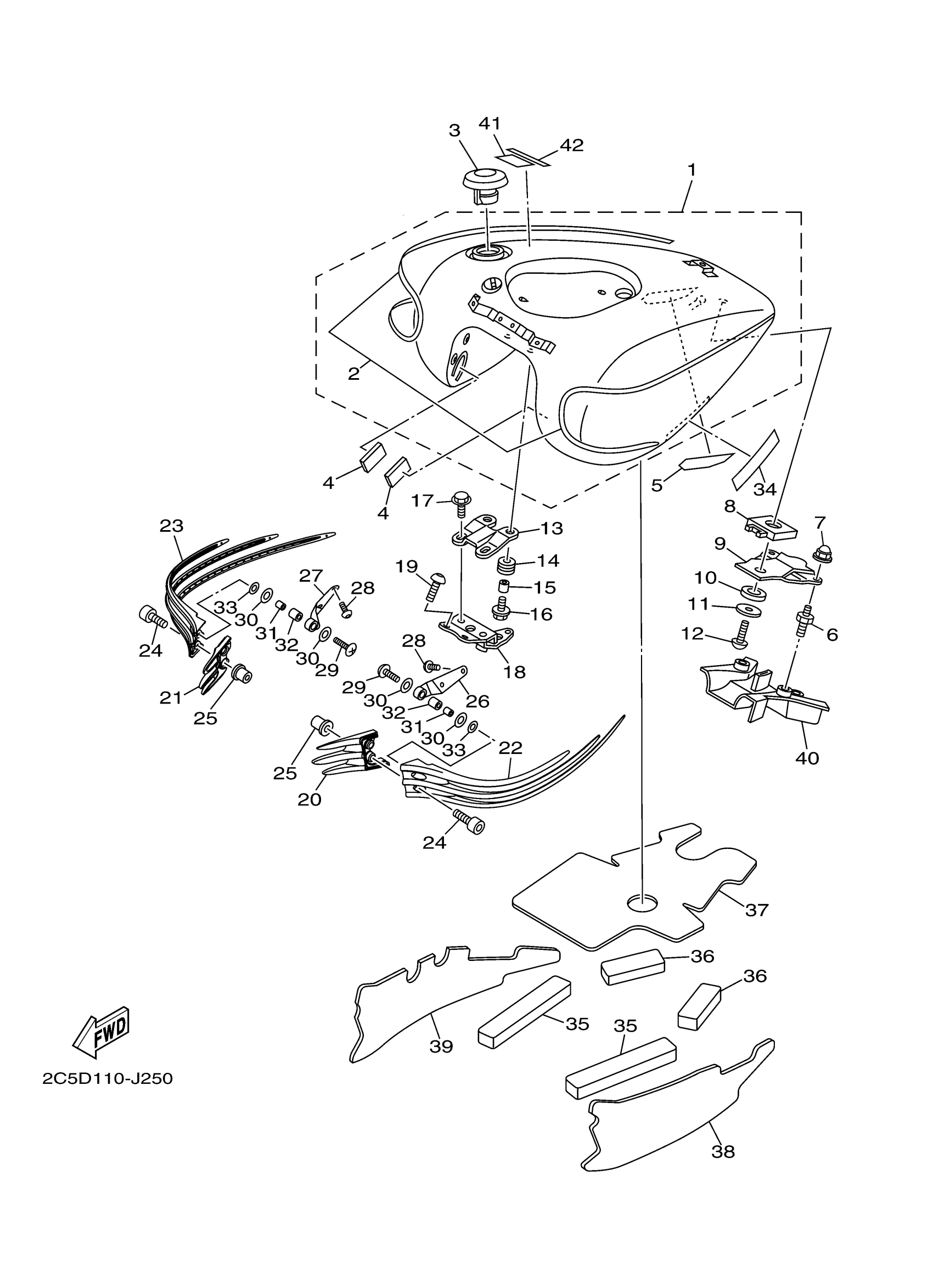

Yamaha XV19CTSZCB (STRATOLINER DELUXE CA) 2C5E 2010 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1D7-YK241-00-P1

$1,131.99

2

. GRAPHIC SET (BLACK METALLIC X)

2C5-24240-00-00

Unavailable

3

CAP ASSY

4NK-24602-20-00

$129.99

4

DAMPER

1FK-21746-00-00

$6.99

5

PLATE

1D7-2413X-00-00

Unavailable

6

BOLT 1

5PX-24176-01-00

Unavailable

7

NUT, CROWN(1FN)

90176-06055-00

$5.60

8

DAMPER, LOCATING 2

1D7-24182-00-00

Unavailable

9

BRACKET, TANK FITTING

1D7-2413Y-00-00

Unavailable

10

DAMPER, LOCATING 3

4TR-24183-00-00

$6.99

11

WASHER, PLATE

90201-06110-00

$8.49

12

BOLT, BUTTON HEAD

92017-06012-00

$7.49

13

BRACKET, FUEL TANK 1

1D7-24191-01-00

Unavailable

14

GROMMET(1WG)

90480-15483-00

$7.49

15

COLLAR

90387-06054-00

$8.49

16

BOLT, WITH WASHER

90119-06234-00

Unavailable

17

BOLT, FLANGE

95817-08012-00

Unavailable

18

BRACKET, FUEL TANK 2

1D7-24192-00-00

Unavailable

19

BOLT, BUTTON

92017-08025-00

Unavailable

20

COVER, SIDE 1

1D7-24129-01-00

Unavailable

21

COVER, SIDE 2

1D7-24139-01-00

Unavailable

22

TANK SIDE COVER ASSY 1

1D7-24106-00-00

Unavailable

23

TANK SIDE COVER ASSY 2

1D7-24108-00-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-05037-00

Unavailable

25

NUT(1KT)

90179-05523-00

Unavailable

26

STAY, FUEL TANK 1

1D7-24115-00-00

Unavailable

27

STAY, FUEL TANK 2

1D7-24116-00-00

Unavailable

28

BOLT, BUTTON HEAD

92012-05010-00

Unavailable

29

SCREW, TRUSS TAP.

97707-50025-00

Unavailable

30

WASHER, PLATE

90201-06079-00

Unavailable

31

COLLAR

90387-09009-00

Unavailable

32

BUSH

90386-08003-00

Unavailable

33

WASHER (M01)

90202-04182-00

Unavailable

34

TAPE

3TU-28344-00-00

Unavailable

35

DAMPER, PLATE 4

1D7-2414N-00-00

Unavailable

36

DAMPER, PLATE 4

1D7-2414N-00-00

Unavailable

37

DAMPER, PLATE 5

1D7-2414P-00-00

Unavailable

38

DAMPER, PLATE 3

1D7-2414K-00-00

Unavailable

39

DAMPER, PLATE 1

1D7-2414H-00-00

Unavailable

40

COVER

1D7-24217-00-00

Unavailable

41

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

42

LABEL, CAUTION

5PW-2415E-12-00

Unavailable
