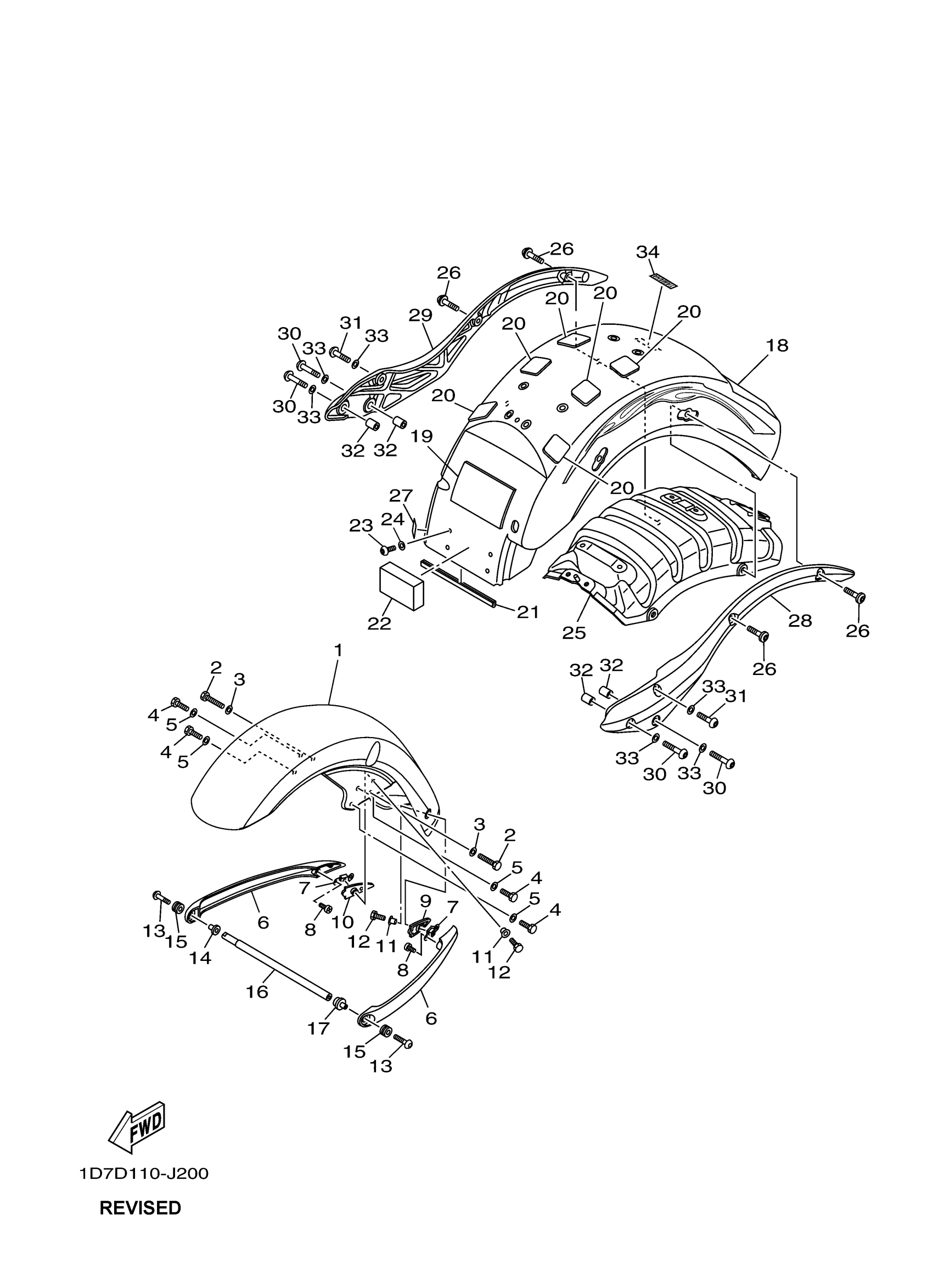

Yamaha XV19CTSZCB (STRATOLINER DELUXE CA) 2C5E 2010 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

1D7-YK215-01-P1

Unavailable

2

BOLT, HEXAGON

97017-08030-00

$9.49

3

WASHER(6TA)

92907-08600-00

$3.03

4

BOLT, HEXAGON

97017-08016-00

$8.49

6

STAY, FENDER 3

1D7-21562-01-00

$139.99

7

BRACKET, FENDER

1D7-21512-00-00

$7.99

8

SCREW, PAN TAP.2 SLIT

97707-40610-00

$8.49

9

DAMPER 1

1D7-21541-00-00

$7.99

10

DAMPER 2

1D7-21542-00-00

Unavailable

11

COLLAR(50M)

90387-087L0-00

$8.49

12

BOLT

97012-06014-00

$7.49

13

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

14

COLLAR

90387-06125-00

$8.49

15

GROMMET (16R)

90480-14329-00

$8.49

16

COLLAR 1

1D7-21544-00-00

Unavailable

17

PLATE 3

1D7-21545-00-00

Unavailable

18

REAR FENDER C0MP.

1D7-YK216-00-P1

Unavailable

19

DAMPER, LOCATING 2

5PX-21779-00-00

Unavailable

20

SEAL

5PX-21669-01-00

Unavailable

21

MOLD, FUEL TANK

1D7-24188-00-00

Unavailable

22

DAMPER 2

1D7-21639-00-00

Unavailable

23

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

24

WASHER, PLATE

90201-06036-00

Unavailable

25

STAY, REAR

1D7-21643-00-00

Unavailable

27

SEAL 1

3FY-21575-01-00

Unavailable

28

STAY, FENDER 1

1D7-21613-20-00

Unavailable

29

STAY, FENDER 2

1D7-21614-20-00

Unavailable

30

BOLT, BUTTON HEAD(3LS)

92014-10050-00

Unavailable

31

BOLT, BUTTON HEAD

92014-10040-00

Unavailable

32

PIN, DOWEL

99530-14016-00

Unavailable

33

WASHER, PLATE

90201-10081-00

Unavailable

34

EMBLEM, YAMAHA

3WF-2153E-71-00

Unavailable
