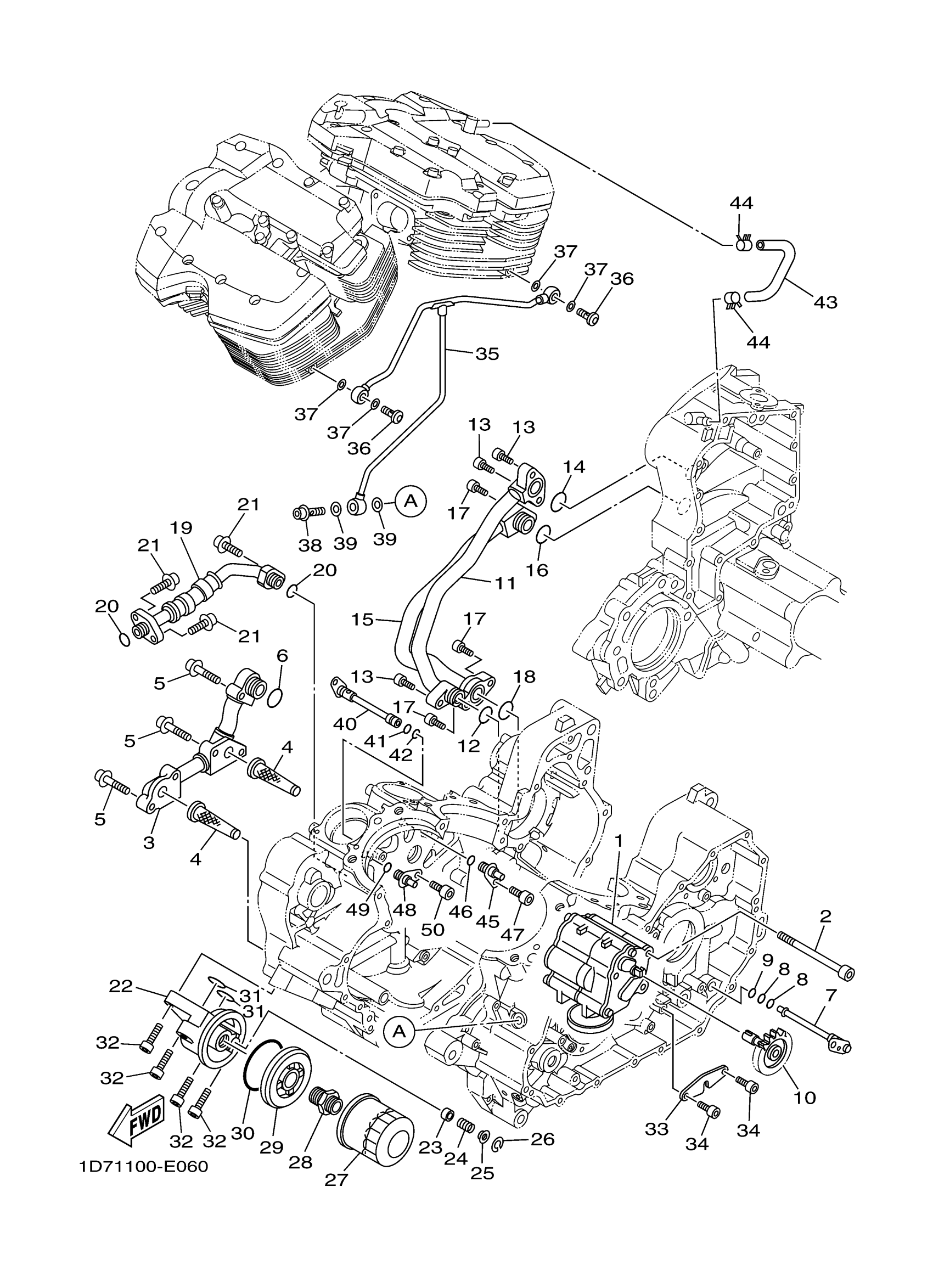

Yamaha XV19CTSWC (STRATOLINER S CA) 2C55 2007 OIL PUMP Diagram
#
1
OIL PUMP ASSY
1D7-13300-00-00
Unavailable
2
BOLT, HEXAGON SOCKET HEAD
90110-08055-00
Unavailable
7
PIPE, DELIVERY 2
1D7-13171-00-00
Unavailable
10
DRIVEN GEAR ASSY
1D7-13360-00-00
Unavailable
11
PIPE, OIL 1
1D7-13416-00-00
Unavailable
15
PIPE, OIL 2
1D7-13418-00-00
Unavailable
19
PIPE, DELIVERY 1
1D7-13161-00-00
Unavailable
20
O-RING(36Y)
93210-13657-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-06195-00
Unavailable
22
PLATE, ADAPTOR
1D7-13461-00-00
Unavailable
23
PLUNGER
4KM-13493-00-00
Unavailable
24
SPRING, COMPRESSION (1J7)
90501-12413-00
Unavailable
25
WASHER (2H9)
90209-06173-00
Unavailable
26
CIRCLIP(24H)
99009-17500-00
Unavailable
27
ELEMENT ASSY, OIL CLEANER
3FV-13440-31-00
Unavailable
28
BOLT, UNION
90401-18002-00
Unavailable
29
PLATE
1D7-13489-00-00
Unavailable
30
O-RING
93210-626A7-00
Unavailable
31
O-RING (4V2)
93210-23326-00
Unavailable
32
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
33
PLATE, STOPPER 1
4WM-1357N-01-00
Unavailable
34
BOLT,SOCKET
91317-06016-00
Unavailable
35
OIL PIPE COMP. 1
1D7-13405-00-00
Unavailable
36
BOLT, UNION
90401-10175-00
Unavailable
37
GASKET
90430-10188-00
Unavailable
38
BOLT, BANJO
1D7-13165-00-00
Unavailable
39
GASKET
90430-08119-00
Unavailable
40
PIPE, DELIVERY 3
1D7-13181-00-00
Unavailable
41
O-RING
93210-08003-00
Unavailable
42
O-RING (11M)
93210-07540-00
Unavailable
43
HOSE, OIL 1
1D7-13464-00-00
Unavailable
44
CLIP
90467-120A0-00
Unavailable
45
NOZZLE
1D7-13352-00-00
Unavailable
46
O-RING (11M)
93210-07540-00
Unavailable
47
BOLT (33M)
91312-06014-00
Unavailable
48
NOZZLE
1D7-13454-00-00
Unavailable
49
O-RING (11M)
93210-07540-00
Unavailable
50
BOLT (33M)
91312-06014-00
Unavailable
