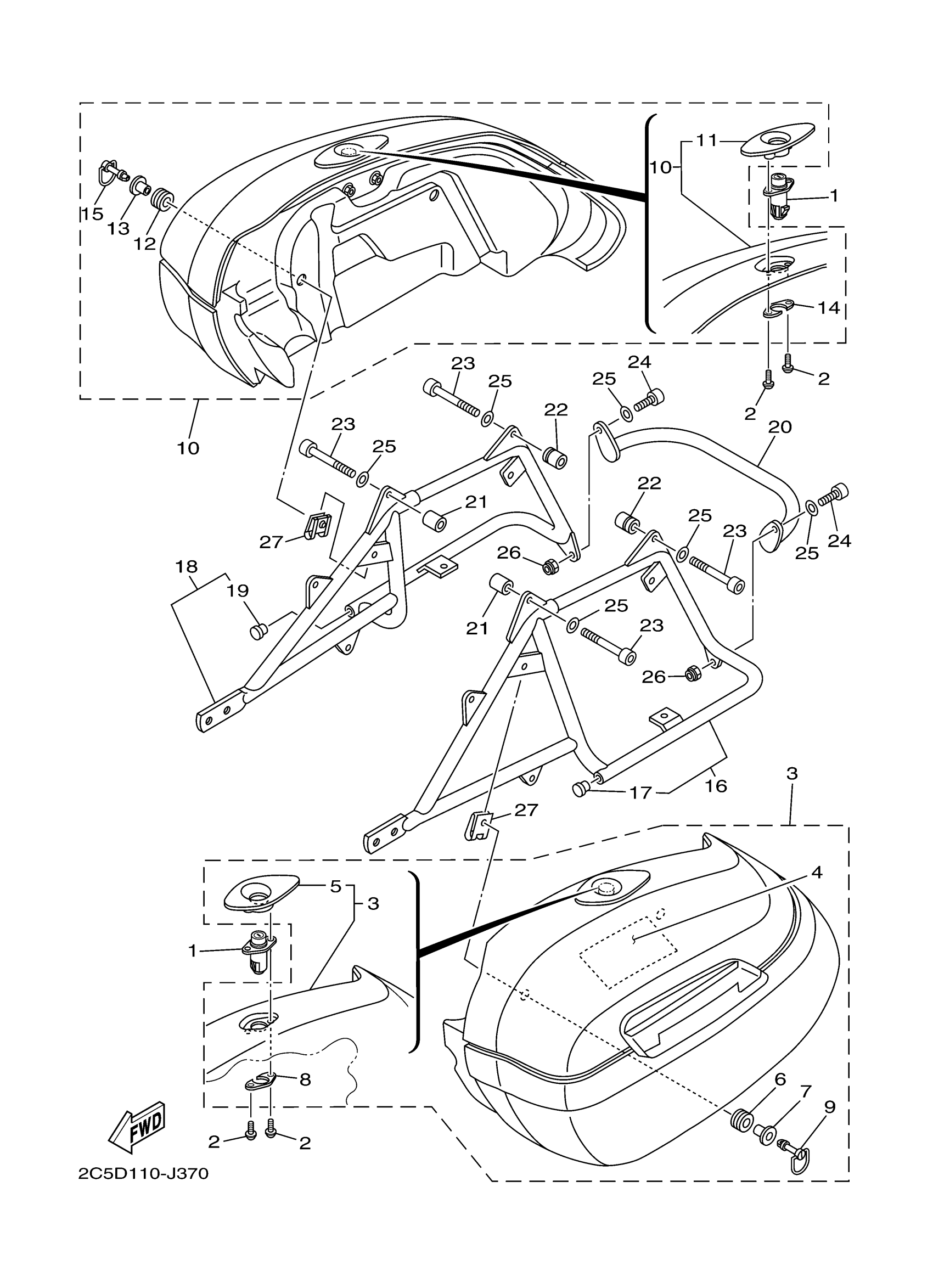

Yamaha XV19CTSES (STRATOLINE S) 2BH4 2014 SADDLEBAG 1 Diagram

#

Description
Price

1

LOCK ASSY.1

2C5-28408-01-00

$167.95

2

BOLT, BUTTON HEAD(4NK)

92014-05010-00

$6.58

3

SADDLE BAG - LEFT

2C5-F8441-01-00

Unavailable

4

LABEL, CAUTION

4YE-28446-01-00

$29.48

5

. COVER LOCK ASSY 2

2C5-F8493-00-00

Unavailable

6

. DAMPER 2

2C5-F8416-00-00

Unavailable

7

. PLATE

2C5-F843L-00-00

$13.50

8

. PLATE, LOCK 1

2C5-F848T-00-00

Unavailable

9

. HOOK 3

2C5-F8494-00-00

$20.00

10

SADDLE BAG - RIGHT

2C5-F8442-01-00

Unavailable

11

. COVER LOCK ASSY 2

2C5-F849K-00-00

Unavailable

12

. DAMPER 2

2C5-F8416-00-00

Unavailable

13

. PLATE

2C5-F843L-00-00

$13.50

14

. PLATE, LOCK 1

2C5-F848T-00-00

Unavailable

15

. HOOK 3

2C5-F8494-00-00

$20.00

16

FRAME, SADDLEBAG 1

2C5-F8473-00-00

Unavailable

17

. COVER 1

2C5-F842M-00-00

Unavailable

18

FRAME, SADDLEBAG 2

2C5-F8474-00-00

Unavailable

19

. COVER 1

2C5-F842M-00-00

Unavailable

20

STAY, SIDE BAG

2C5-F8423-00-00

Unavailable

21

PIPE, 1

2C5-F841B-00-00

Unavailable

22

PIPE, 5

2C5-F841C-00-00

Unavailable

23

BOLT

91314-08070-00

Unavailable

24

BOLT,SOCKET

91314-08020-00

Unavailable

25

WASHER, PLAIN

92990-08200-00

$2.36

26

NUT, U

95614-08100-00

Unavailable

27

CLIP

2C5-F8457-00-00

$4.81
