2014 Yamaha Stratoline S (XV19CTSES) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2014 Yamaha Stratoline S (XV19CTSES), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

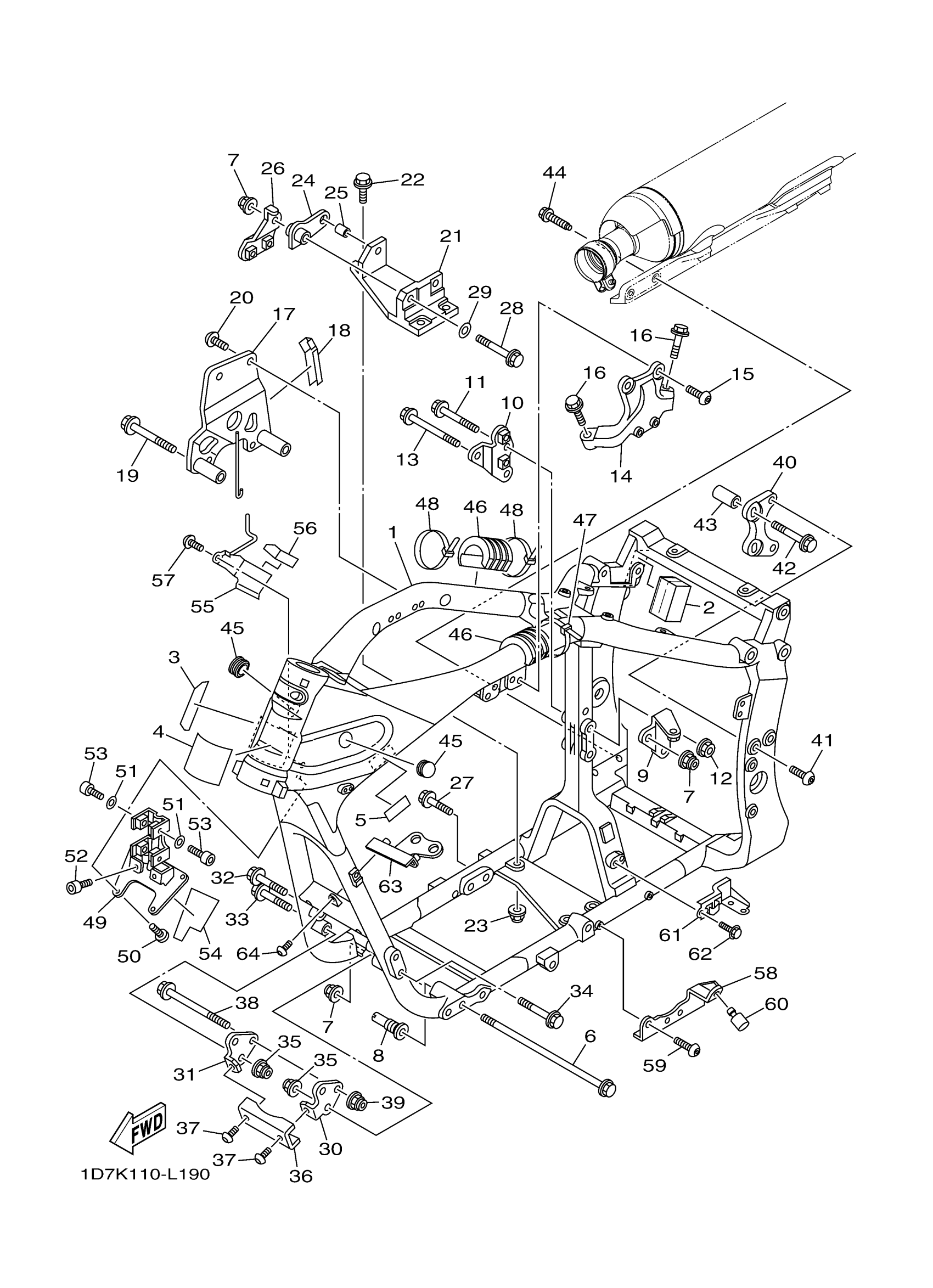

2014 Yamaha Stratoline S (XV19CTSES) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

1D7-21110-01-00

1
Out of stock

2

DAMPER, LOCATING 2

1D7-21779-00-00

—
Out of stock

3

PROTECTOR, FUEL TANK

1D7-24141-00-00

—
Out of stock

4

SEAL

1D7-2639G-00-00

—
Out of stock

5

SEAL

5PX-21268-00-00

1
Out of stock

6

BOLT, WASHER BASED

90105-126A6-00

—
Out of stock

7

NUT, SELF-LOCKING

95602-12200-00

1
Out of stock

8

BOLT, ENGINE ADJUSTING

5PX-21495-01-00

—
Out of stock

9

STAY, ENGINE 2

1D7-21315-00-00

—
Out of stock

10

STAY, ENGINE 3

5PX-21316-00-00

—
Out of stock

11

BOLT, WASHER BASED(4HM)

90105-10737-00

1
Out of stock

12

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

13

BOLT, WASHER BASED(36Y)

90105-12309-00

1
Out of stock

14

STAY, ENGINE 3

1D7-21317-00-00

—
Out of stock

15

BOLT

90111-10003-00

1
Out of stock

16

BOLT, FLANGE

90105-12018-00

—
Out of stock

17

STAY, ENGINE 6

1D7-21319-10-00

—
Out of stock

18

SEAL

1D7-21669-00-00

—
Out of stock

19

BOLT, FLANGE

90105-12038-00

—
Out of stock

20

BOLT

90111-10003-00

1
Out of stock

21

STAY, ENGINE 5

1D7-21318-01-00

—
Out of stock

22

BOLT, FLANGE

95817-10030-00

—
Out of stock

23

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

24

STAY 1

1D7-2142G-00-00

—
Out of stock

25

COLLAR

90387-12033-00

—
Out of stock

26

STAY, ENGINE 7

1D7-21387-00-00

—
Out of stock

27

BOLT, FLANGE (8V9)

95812-10045-00

—
Out of stock

28

BOLT

90101-12025-00

—
Out of stock

29

WASHER, PLATE

90201-12045-00

—
Out of stock

30

STAY 2

1D7-2142H-01-00

1
Out of stock

31

STAY 3

1D7-2142J-01-00

1
Out of stock

32

BOLT, FLANGE

90105-10049-00

—
Out of stock

33

BOLT, FLANGE

90105-10060-00

—
Out of stock

34

BOLT, FLANGE

90105-10167-00

—
Out of stock

35

NUT, SELF-LOCKING

90185-10008-00

—
Out of stock

36

BRACKET, MEMBER 1

1D7-2115L-00-00

—
Out of stock

37

BOLT, BUTTON

92014-08020-00

—
Out of stock

38

BOLT, FLANGE

90105-12016-00

—
Out of stock

39

NUT, SELF-LOCKING

90185-12002-00

—
Out of stock

40

STAY 1

1D7-2137F-00-00

—
Out of stock

41

BOLT

90111-10009-00

—
Out of stock

42

BOLT, FLANGE

90105-10447-00

—
Out of stock

43

COLLAR

1D7-21116-01-00

—
Out of stock

44

BOLT, FLANGE

90105-10166-00

—
Out of stock

45

PLUG

90338-27009-00

—
Out of stock

46

DAMPER, LOCATING 3

4YR-24183-01-00

—
Out of stock

47

CLAMP

90464-80002-00

—
Out of stock

48

CLAMP

90464-80002-00

—
Out of stock

49

BRACKET, COIL

1D7-21359-00-00

—
Out of stock

50

BOLT, BUTTON HEAD

92012-06014-00

—
Out of stock

51

WASHER, PLATE

90201-06045-00

—
Out of stock

52

BOLT,SOCKET HEAD

91314-06020-00

—
Out of stock

53

. BOLT

91380-06020-00

1
Out of stock

54

DAMPER

1D7-2139X-00-00

—
Out of stock

55

HOLDER, WIRE 2

1D7-21598-00-00

—
Out of stock

56

SEAL

1D7-21269-00-00

—
Out of stock

57

BOLT,HEX. SOCKET BUTTON

90111-06146-00

—
Out of stock

58

BRACKET, HORN

1D7-21343-00-00

—
Out of stock

59

BOLT, BUTTON HEAD

92012-08020-00

—
Out of stock

60

STOPPER, MAIN STAND

1D7-27114-00-00

—
Out of stock

61

BRACKET, SWITCH

1D7-21453-00-00

—
Out of stock

62

BOLT, WASHER BASED(JA9)

90105-06696-00

—
Out of stock

63

STAY, OIL COOLER

1D7-2136H-00-00

—
Out of stock

64

BOLT, BUTTON

92017-06020-00

—
Out of stock
