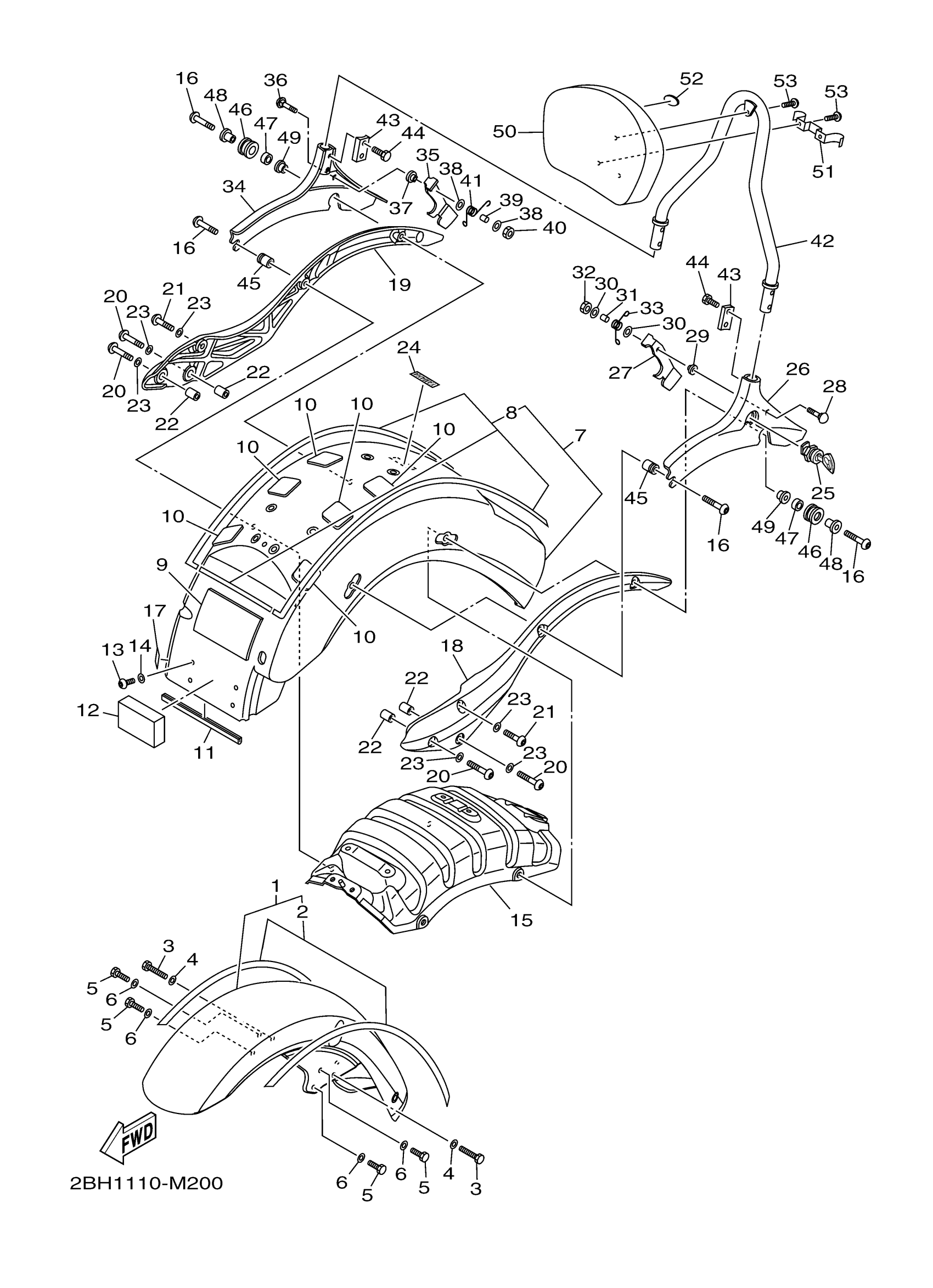

Yamaha XV19CTSES (STRATOLINE S) 2BH4 2014 FENDER Diagram
#
1
FRONT FENDER ASSY
1D7-Y2151-P0-P0
Unavailable
4
.. WASHER, PLATE
92990-08600-00
Unavailable
6
.. WASHER, PLATE
92990-08600-00
Unavailable
7
REAR FENDER COMP.
1D7-Y2161-T0-P5
Unavailable
8
GRAPHIC SET,REAR FENDER
4P0-2165A-70-00
Unavailable
11
MOLD, FUEL TANK
1D7-24188-00-00
Unavailable
15
STAY, REAR
1D7-21643-00-00
Unavailable
16
BOLT
90111-08033-00
Unavailable
17
SEAL 1
3FY-21575-01-00
Unavailable
18
STAY, FENDER 1
1D7-21613-00-00
Unavailable
19
STAY, FENDER 2
1D7-21614-00-00
Unavailable
20
BOLT, BUTTON HEAD(3LS)
92014-10050-00
Unavailable
21
BOLT, BUTTON HEAD
92014-10040-00
Unavailable
22
PIN, DOWEL
99530-14016-00
Unavailable
23
WASHER, PLATE
90201-10081-00
Unavailable
24
EMBLEM, YAMAHA
3WF-2153E-71-00
Unavailable
25
LOCK ASSY,2
2C5-28409-01-00
Unavailable
26
PLATE,4
2C5-F846H-00-00
Unavailable
27
HOOK
2C5-F8488-00-00
Unavailable
28
SHAFT 1
2C5-F844M-00-00
Unavailable
29
SPACER
2C5-F8467-00-00
Unavailable
30
WASHER
2C5-F8319-00-00
Unavailable
31
PLATE, GUIDE
2C5-F849T-00-00
Unavailable
32
NUT, U
95680-06100-00
Unavailable
33
SPRING
2C5-F8489-00-00
Unavailable
34
PLATE 5
2C5-F847H-00-00
Unavailable
35
HOOK 2
2C5-F8498-00-00
Unavailable
36
SHAFT 1
2C5-F844M-00-00
Unavailable
37
SPACER
2C5-F8467-00-00
Unavailable
38
WASHER
2C5-F8319-00-00
Unavailable
39
PLATE, GUIDE
2C5-F849T-00-00
Unavailable
40
NUT, U
95680-06100-00
Unavailable
41
SPRING 2
2C5-F848A-00-00
Unavailable
42
PSNGER BKRST UPRIGHT TALL, CHR
STR-2C541-30-02
Unavailable
43
PLATE
2C5-F8417-00-00
Unavailable
44
BOLT, HEXAGON
97014-08020-00
Unavailable
45
PIN, STOPPER
2C5-F842L-00-00
Unavailable
46
STOPPER, OPEN
2C5-F845L-00-00
Unavailable
47
DAMPER, LOCATING 1
2C5-F836T-00-00
Unavailable
48
SPACER
2C5-F8329-00-00
Unavailable
49
DAMPER 3
2C5-F8425-00-00
Unavailable
50
BACK REST ASSY
1D6-2840F-11-00
Unavailable
51
STAY 2
5GA-2164G-00-00
Unavailable
52
EMBLEM
5GA-24786-01-00
Unavailable
53
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
