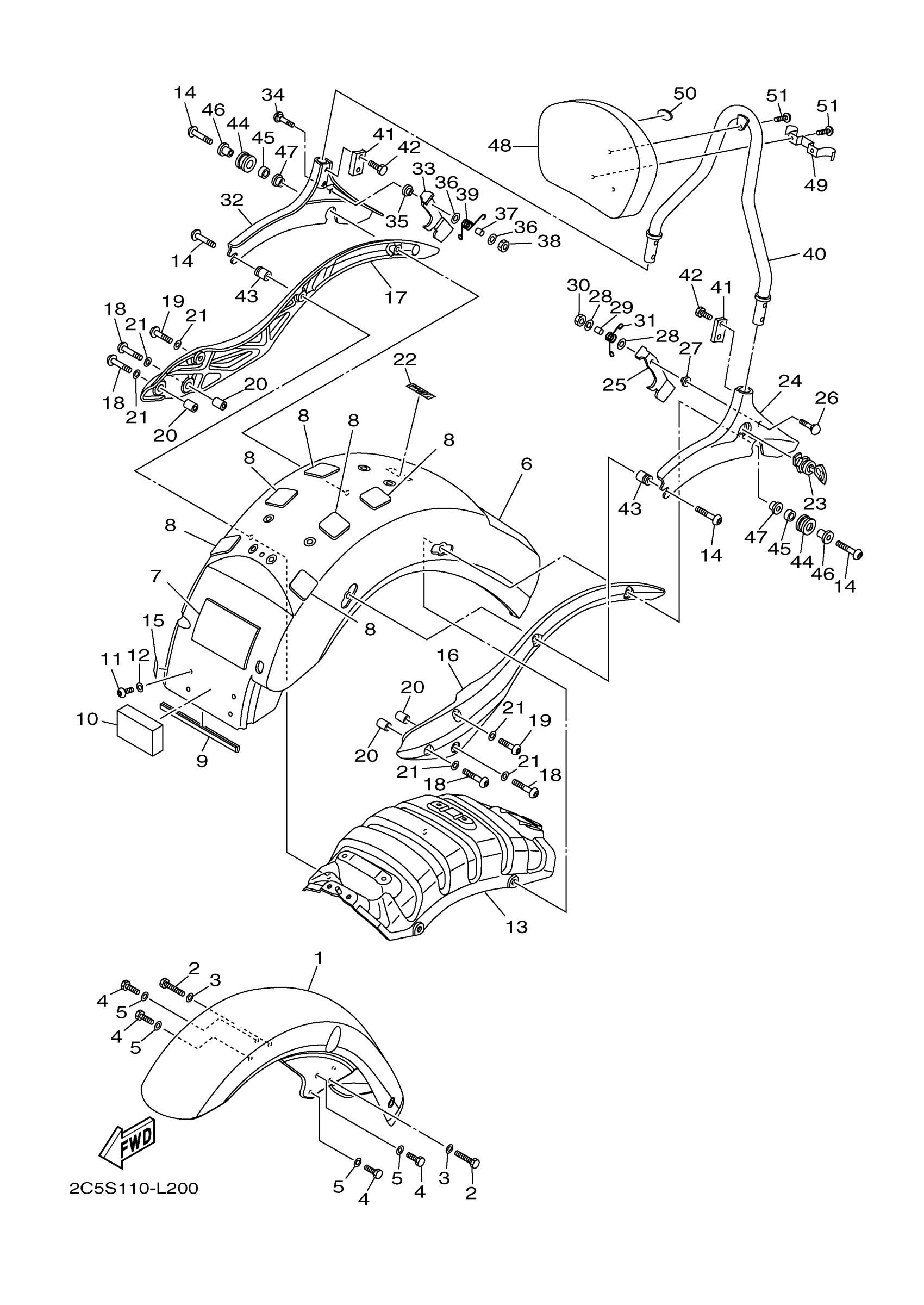

Yamaha XV19CTSBCB (STRATOLINER S CA) 2C5T 2012 FENDER Diagram
#
1
FRONT FENDER COMP.
1D7-YK215-10-P1
Unavailable
3
.. WASHER, PLATE
92990-08600-00
Unavailable
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
REAR FENDER COMP.
1D7-YK216-00-PD
Unavailable
9
MOLD, FUEL TANK
1D7-24188-00-00
Unavailable
13
STAY, REAR
1D7-21643-00-00
Unavailable
16
STAY, FENDER 1
1D7-21613-00-00
Unavailable
17
STAY, FENDER 2
1D7-21614-00-00
Unavailable
18
BOLT, BUTTON HEAD(3LS)
92014-10050-00
Unavailable
19
BOLT, BUTTON HEAD
92014-10040-00
Unavailable
20
PIN, DOWEL
99530-14016-00
Unavailable
21
WASHER, PLATE
90201-10081-00
Unavailable
22
EMBLEM, YAMAHA
3WF-2153E-71-00
Unavailable
23
LOCK ASSY,2
2C5-28409-01-00
Unavailable
24
PLATE,4
2C5-F846H-00-00
Unavailable
25
HOOK
2C5-F8488-00-00
Unavailable
26
SHAFT 1
2C5-F844M-00-00
Unavailable
27
SPACER
2C5-F8467-00-00
Unavailable
28
WASHER
2C5-F8319-00-00
Unavailable
29
PLATE, GUIDE
2C5-F849T-00-00
Unavailable
30
NUT, U
95680-06100-00
Unavailable
31
SPRING
2C5-F8489-00-00
Unavailable
32
PLATE 5
2C5-F847H-00-00
Unavailable
33
HOOK 2
2C5-F8498-00-00
Unavailable
34
SHAFT 1
2C5-F844M-00-00
Unavailable
35
SPACER
2C5-F8467-00-00
Unavailable
36
WASHER
2C5-F8319-00-00
Unavailable
37
PLATE, GUIDE
2C5-F849T-00-00
Unavailable
38
NUT, U
95680-06100-00
Unavailable
39
SPRING 2
2C5-F848A-00-00
Unavailable
40
PSNGER BKRST UPRIGHT TALL, CHR
STR-2C541-30-02
Unavailable
41
PLATE
2C5-F8417-00-00
Unavailable
42
BOLT, HEXAGON
97014-08020-00
Unavailable
43
PIN, STOPPER
2C5-F842L-00-00
Unavailable
44
STOPPER, OPEN
2C5-F845L-00-00
Unavailable
45
DAMPER, LOCATING 1
2C5-F836T-00-00
Unavailable
46
SPACER
2C5-F8329-00-00
Unavailable
47
DAMPER 3
2C5-F8425-00-00
Unavailable
48
BACK REST ASSY
1D6-2840F-11-00
Unavailable
49
STAY 2
5GA-2164G-00-00
Unavailable
50
EMBLEM
5GA-24786-01-00
Unavailable
51
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
