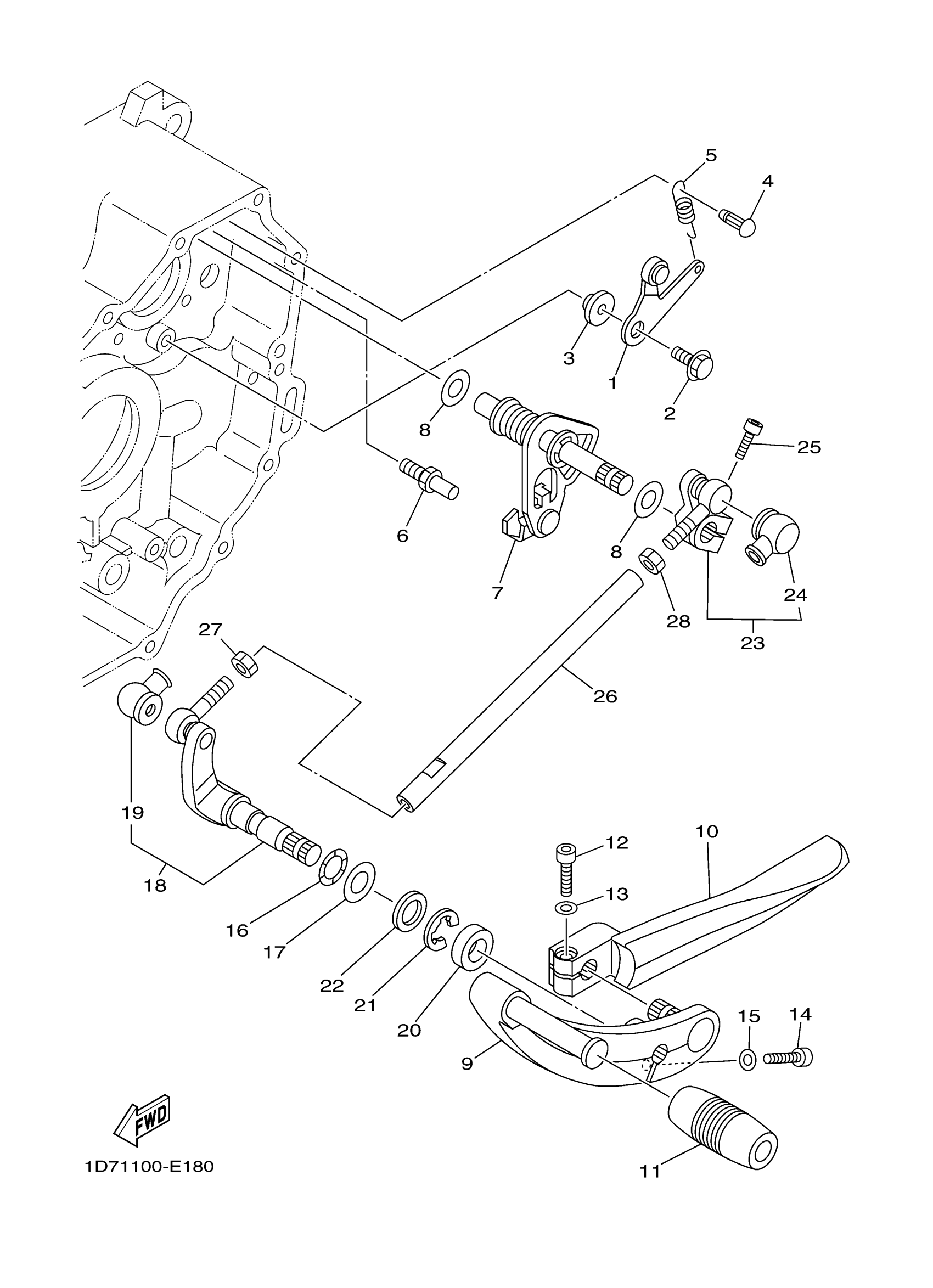

Yamaha XV19CTMVC (STRATOLINER MIDNIGHT CA) 4P12 2006 SHIFT SHAFT Diagram

#

Description
Price

1

STOPPER LEVER ASSY

1D7-18140-00-00

Unavailable

2

SCREW, WITH WASHER

90159-06028-00

$7.49

3

SPACER

4NX-18175-00-00

Unavailable

4

HOOK, SPRING

132-16346-00-00

$9.99

5

HANGER, SPRING

1D7-18144-01-00

Unavailable

6

STOPPER, SCREW

5VK-18127-00-00

Unavailable

7

SHIFT SHAFT ASSY

1D7-18101-01-00

$97.99

8

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

9

PEDAL, SHIFT

1D7-18162-10-00

$460.99

10

PEDAL, REAR

1D7-18163-10-00

$227.99

11

COVER, SHIFT PEDAL

5VN-18113-00-00

$15.49

12

BOLT,SOCKET HEAD

91314-06025-00

$8.49

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

BOLT,SOCKET HEAD

91314-06025-00

$8.49

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

WASHER, WAVE(6T4)

90206-14086-00

Unavailable

17

WASHER, PLATE

90201-14018-00

Unavailable

18

KNOB, SHIFTER

1D7-18164-00-00

Unavailable

19

COVER, DUST

2H9-18154-00-00

Unavailable

20

COVER, DUST

5PX-18154-00-00

Unavailable

21

. CIRCLIP

99001-12600-00

Unavailable

22

WASHER,PLATE (BA2)

90201-14019-00

Unavailable

23

SHIFT SHAFT ASSY

1D7-18130-00-00

Unavailable

24

COVER, DUST

2H9-18154-00-00

Unavailable

25

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

26

ROD, SHIFT

1D7-18115-00-00

Unavailable

27

. NUT

95380-08700-00

Unavailable

28

NUT(1KT)

90170-08358-00

Unavailable
