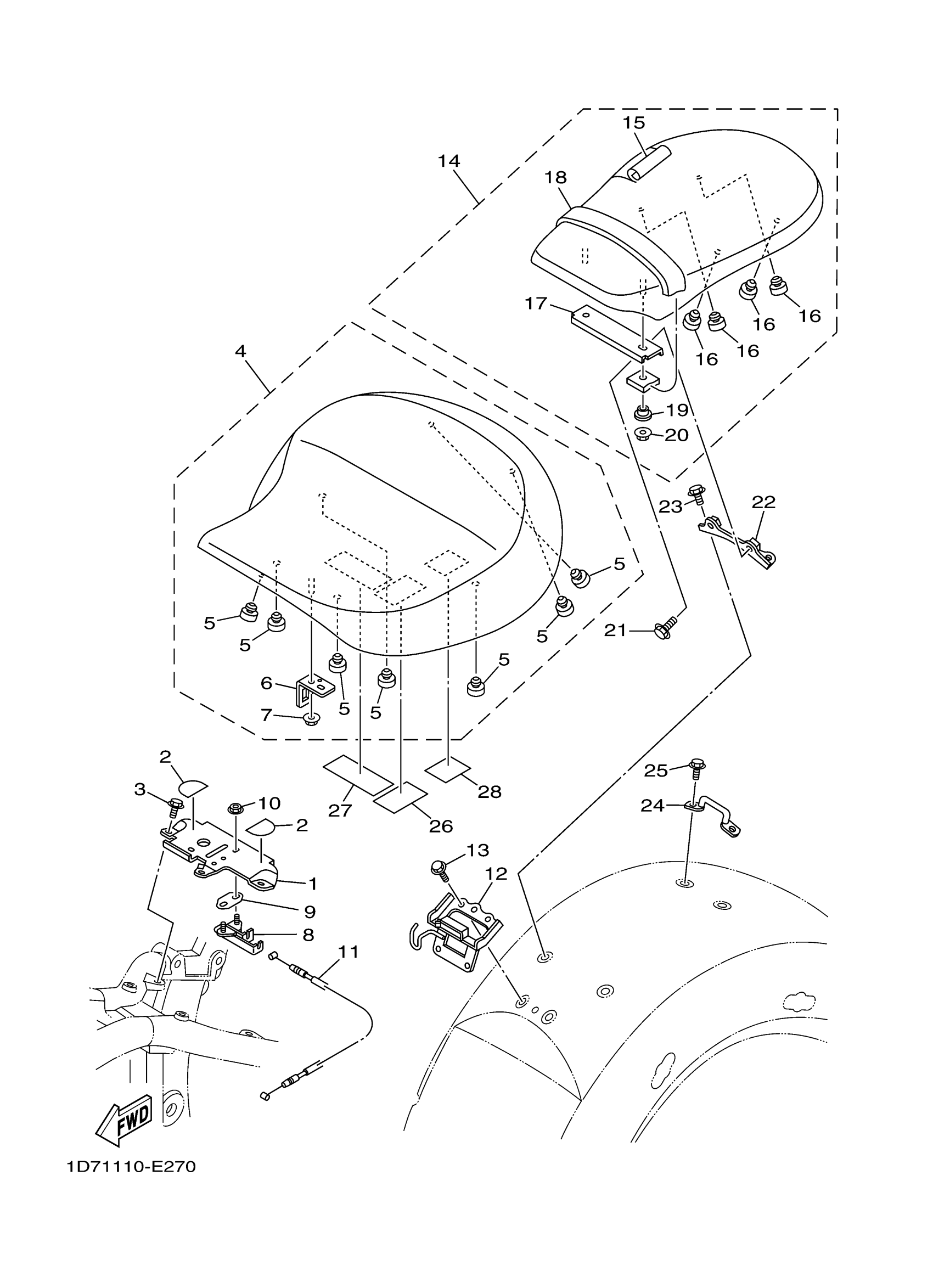

Yamaha XV19CTMVC (STRATOLINER MIDNIGHT CA) 4P12 2006 SEAT Diagram

BRACKET, SEAT 1

1D7-21341-00-00

$39.99

SEAL 2

5PX-21735-00-00

Unavailable

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

SINGLE SEAT ASSY

1D7-24710-01-00

Unavailable

PAD, SEAT

22W-24741-00-00

$8.99

BRACKET, SEAT

4NK-24728-00-00

$11.99

NUT, U FLANGE

95604-06200-00

$8.49

SEAT LOCK ASSY

4BP-24780-00-00

$97.99

PLATE

4BP-24792-00-00

Unavailable

NUT, FLANGE(4MV)

95707-06500-00

$1.23

CABLE, SEAT LOCK

5PX-2478E-00-00

$20.99

BRACKET

1D7-2475N-00-00

Unavailable

BOLT, FLANGE

95022-08012-00

$12.49

TANDEM SEAT ASSY

1D7-24750-01-00

Unavailable

SEAT COVER COMP. ,2

1D7-2470H-00-00

$92.99

PAD, SEAT

22W-24741-00-00

$8.99

. BRACKET, SEAT LEVER 2

1D7-2475J-00-00

Unavailable

. BAND, SEAT

1D7-24734-00-00

Unavailable

. COLLAR 1

1D7-2471N-00-00

Unavailable

NUT, U FLANGE

95604-06200-00

$8.49

BOLT, FLANGE

95022-08012-00

$12.49

BRACKET, SEAT LEVER 1

1D7-2475H-00-00

Unavailable

BOLT, FLANGE

95022-08012-00

$12.49

BRACKET 6

1D7-2475R-00-00

Unavailable

BOLT, FLANGE

95022-08012-00

$12.49

LABEL, TIRE

1D7-21668-00-00

Unavailable

PLATE, EPA 2 (CALIFORNIA)

1D7-2179R-00-00

Unavailable

PLATE, EPA (NON CALIFORNIA)

1D7-2179W-00-00

Unavailable

PLATE, ROUTING 2

5PX-21686-00-00

Unavailable
