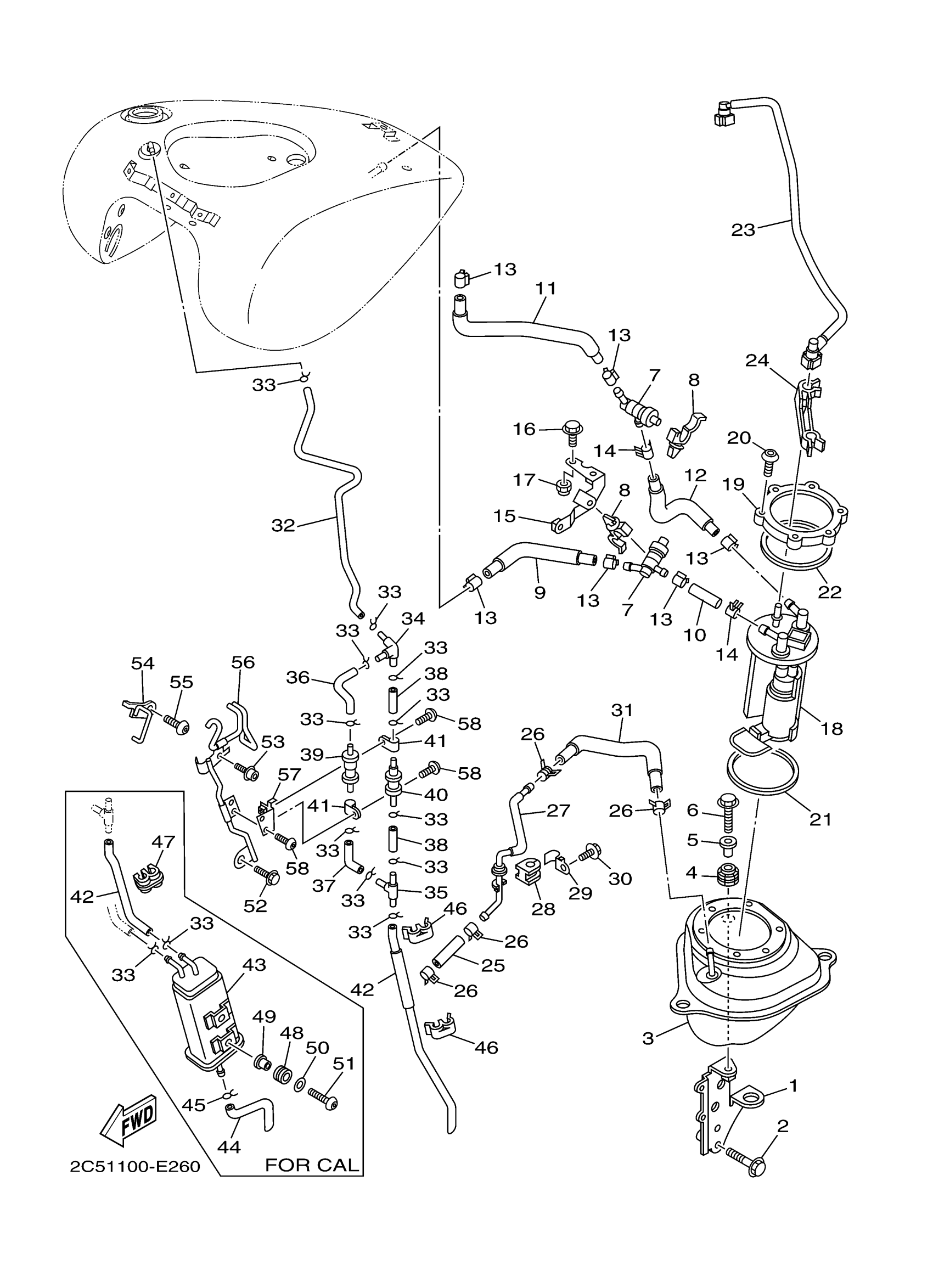

Yamaha XV19CTMVC (STRATOLINER MIDNIGHT CA) 4P12 2006 FUEL TANK 2 Diagram
#
1
STAY, SIDE COVER 1
1D7-2172E-00-00
Unavailable
4
DAMPER, LOCATING 5
1D7-24185-00-00
Unavailable
16
BOLT, WITH WASHER
90119-05004-00
Unavailable
17
NUT, CAP
95307-05800-00
Unavailable
18
FUEL PUMP COMP.
1D7-13907-01-00
Unavailable
19
BRACKET, FUEL PUMP
5PX-24491-00-00
Unavailable
20
BOLT,HEX. SOCKET BUTTON
90111-05026-00
Unavailable
21
O-RING
5PX-24486-00-00
Unavailable
22
PLATE, DAMPER
5PX-24145-00-00
Unavailable
23
PIPE, FUEL 1
1D7-13971-00-00
Unavailable
24
CLAMP
90464-15004-00
Unavailable
25
PIPE, FUEL 3
5PX-13973-01-00
Unavailable
26
CLIP(3YX)
90467-13133-00
Unavailable
27
PIPE, FUEL
1D7-14295-00-00
Unavailable
28
GROMMET
5PX-14435-00-00
Unavailable
29
HOLDER
5PX-14261-01-00
Unavailable
30
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
31
PIPE, FUEL 4
1D7-13974-00-00
Unavailable
32
PIPE 6
1D7-24316-10-00
Unavailable
33
CLIP
90467-09002-00
Unavailable
33
CLIP
90467-09002-00
Unavailable
34
WAY 3
90413-06002-00
Unavailable
35
WAY 3
90413-06031-00
Unavailable
36
PIPE 7
1D7-24317-10-00
Unavailable
37
PIPE 10
1D7-24321-00-00
Unavailable
38
PIPE 11
1D7-24322-00-00
Unavailable
39
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
40
ROLL OVER VALVE ASSY
4WM-24180-00-00
Unavailable
41
CLAMP
90464-15014-00
Unavailable
42
PIPE 7
1D7-24317-00-00
Unavailable
42
PIPE 13
1D7-24324-00-00
Unavailable
43
CANISTER ASSY
1D7-24170-00-00
Unavailable
44
PIPE 14
1D7-24325-00-00
Unavailable
45
CLIP
90467-100A1-00
Unavailable
46
CLAMP(6R8)
90464-10M38-00
Unavailable
47
CLAMP
90464-10M57-00
Unavailable
48
GROMMET (1E5)
90480-13163-00
Unavailable
49
COLLAR(42G)
90387-062L2-00
Unavailable
50
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
51
BOLT
90111-06046-00
Unavailable
52
BOLT, WASHER BASED(4EB)
90105-06791-00
Unavailable
53
BOLT,SOCKET HEAD
91314-06014-00
Unavailable
54
GUIDE, CABLE
1D7-26328-10-00
Unavailable
55
BOLT,HEX. SOCKET BUTTON
90111-06146-00
Unavailable
56
STAY
1D7-26292-00-00
Unavailable
57
PLATE, MIRROR FITTING 2
1D7-26299-00-00
Unavailable
58
BOLT, BUTTON
92017-05010-00
Unavailable
