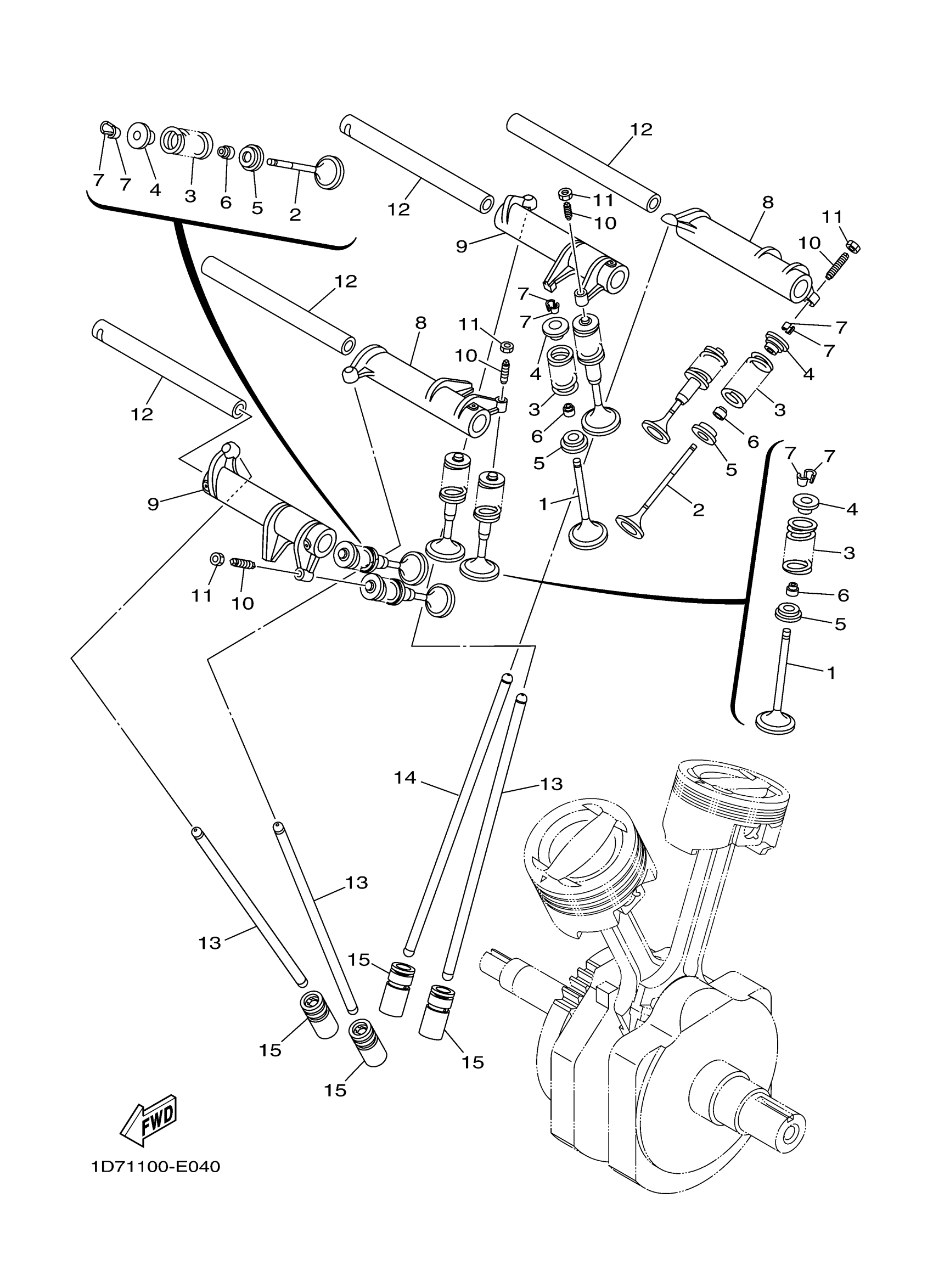

Yamaha XV19CTFER (STRATOLINER DELUXE) 2BY4 2014 VALVE Diagram

VALVE, INTAKE

1D7-12111-00-00

$36.20

VALVE, EXHAUST

1D7-12121-00-00

$62.62

SPRING, VALVE INNER

1D7-12113-00-00

$12.71

RETAINER, VALVE SPRING

3YF-12117-01-00

$12.22

SEAT, VALVE SPRING

1D7-12116-00-00

$2.61

SEAL, VALVE STEM

4KM-12119-00-00

$12.22

COTTER, VALVE

4G0-12118-00-00

$6.29

ARM, VALVE ROCKER

1D7-12151-10-00

Unavailable

ARM, VALVE ROCKER 2

1D7-12161-10-00

Unavailable

SCREW, VALVE ADJUSTING

31G-12159-02-00

$7.96

NUT, LOCK

31G-12158-00-00

$5.37

SHAFT, ROCKER

1D7-12146-00-00

Unavailable

ROD, VALVE PUSH

1D7-12154-01-00

$22.35

ROD, VALVE PUSH 2

1D7-12144-00-00

Unavailable

LIFTER, VALVE

4WM-12153-10-00

$65.40
