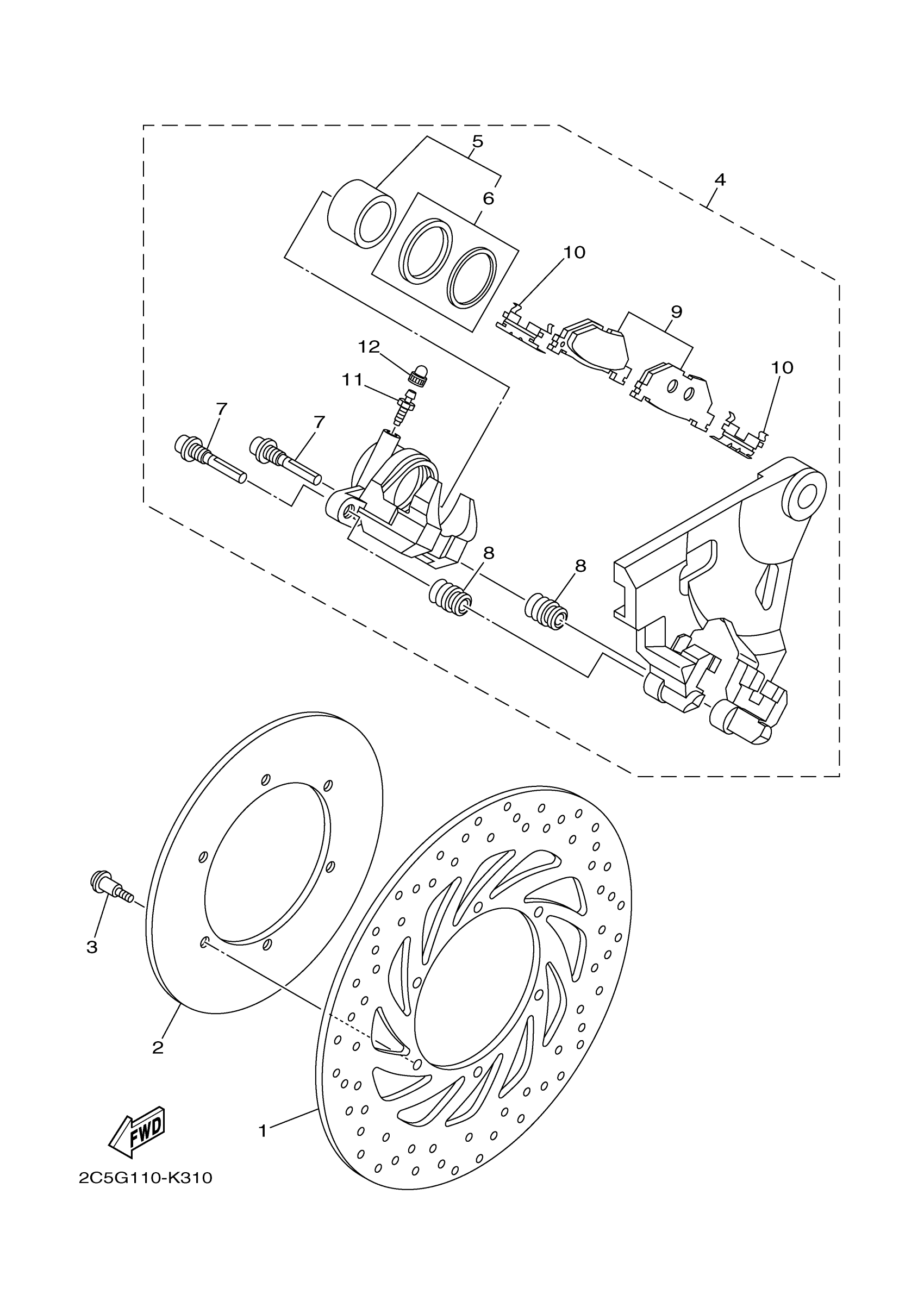

Yamaha XV19CTFER (STRATOLINER DELUXE) 2BY4 2014 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

1D7-2582W-00-00

Unavailable

2

PLATE, DISK

1D7-2581A-10-00

Unavailable

3

BOLT

90109-06050-00

$5.50

4

CALIPER ASSY, REAR 2

1D7-2580W-20-00

Unavailable

5

PISTON ASSY, CALIPER

1D7-25802-00-00

$45.90

6

CALIPER SEAL KIT

5JW-25803-00-00

$13.44

7

PIN, SLIDE

3P6-25914-00-00

$13.02

8

BOOT 2

4TT-25937-00-00

$13.33

9

BRAKE PAD KIT 2

3D8-25806-00-00

$42.94

10

SUPPORT, PAD

1D7-25919-00-00

$14.81

11

SCREW, BLEED

47X-25824-01-00

$11.87

12

CAP

1D7-25825-00-00

$6.29
