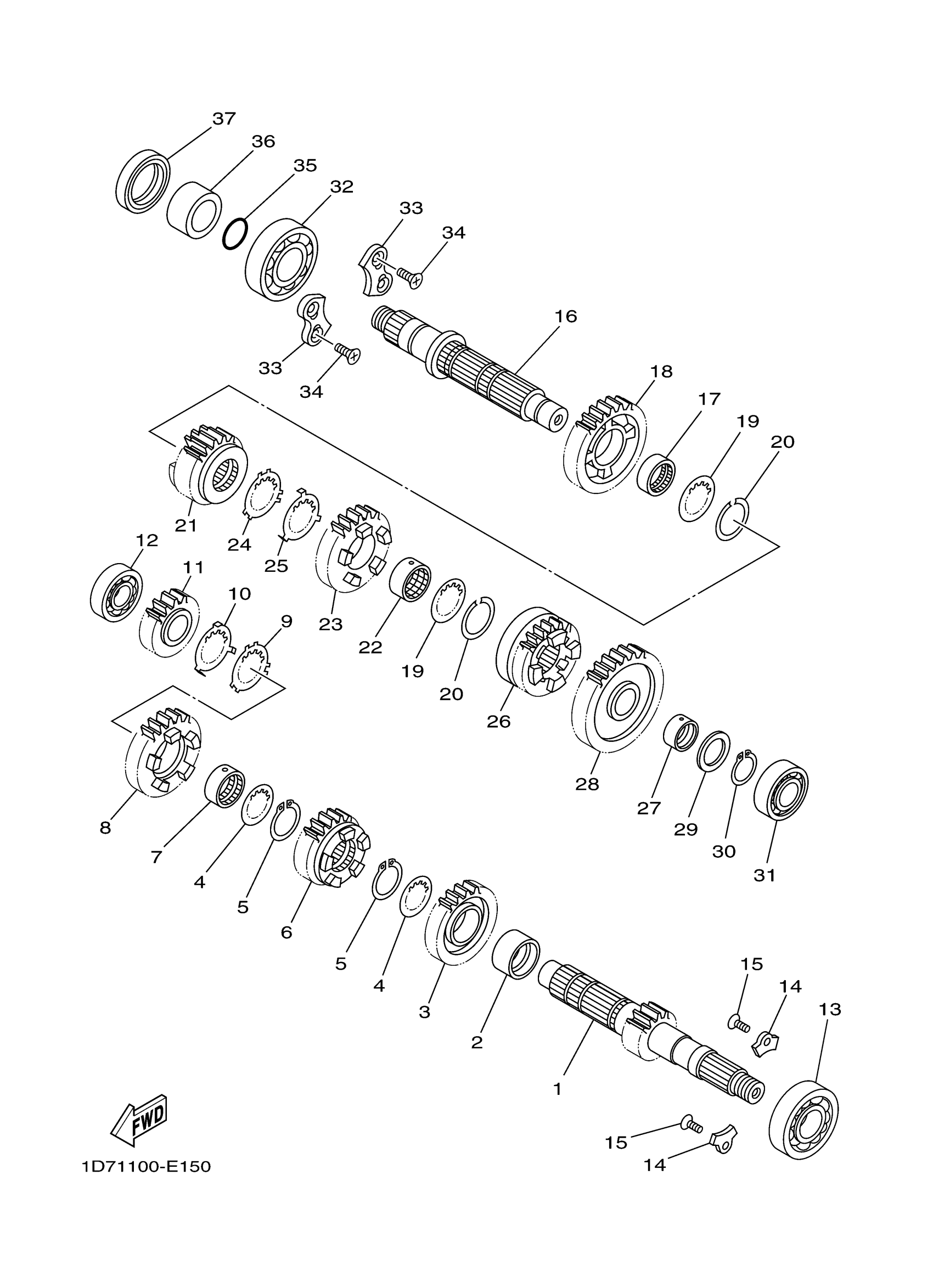

Yamaha XV19CTFBS (STRATOLINER DELUXE) 2C5V 2012 TRANSMISSION Diagram
#
2
COLLAR
90387-32004-00
Unavailable
3
GEAR, 4TH PINION
1D7-17141-00-00
Unavailable
4
WASHER(3VD)
90209-28331-00
Unavailable
6
GEAR, 3RD PINION
1D7-17131-10-00
Unavailable
8
GEAR, 5TH PINION
1D7-17151-10-00
Unavailable
10
WASHER(3VD)
90209-28330-00
Unavailable
11
GEAR, 2ND PINION
1D7-17121-00-00
Unavailable
13
BEARING
93306-37806-00
Unavailable
16
AXLE, DRIVE
1D7-17421-00-00
Unavailable
17
COLLAR
90387-3311C-00
Unavailable
18
GEAR, 2ND WHEEL
1D7-17221-00-00
Unavailable
19
WASHER
90209-30344-00
Unavailable
20
CIRCLIP (2H7)
93440-32063-00
Unavailable
21
GEAR, 5TH WHEEL
1D7-17251-10-00
Unavailable
22
COLLAR
90387-3310V-00
Unavailable
23
GEAR, 3RD WHEEL
1D7-17231-20-00
Unavailable
24
WASHER
90209-30345-00
Unavailable
25
WASHER
90209-30343-00
Unavailable
26
GEAR, 4TH WHEEL
1D7-17241-01-00
Unavailable
27
COLLAR
90387-25008-00
Unavailable
28
GEAR, 1ST WHEEL
1D7-17211-01-00
Unavailable
29
WASHER, PLATE(1FK)
90201-256K6-00
Unavailable
30
CIRCLIP (256)
93410-25017-00
Unavailable
32
BEARING
93306-30641-00
Unavailable
33
PLATE, BEARING COVER 1
31A-15381-00-00
Unavailable
34
SCREW, COUNTERSUNK
90151-08002-00
Unavailable
35
O-RING
93210-28001-00
Unavailable
36
COLLAR
90387-32006-00
Unavailable
37
OIL SEAL
93103-44011-00
Unavailable
