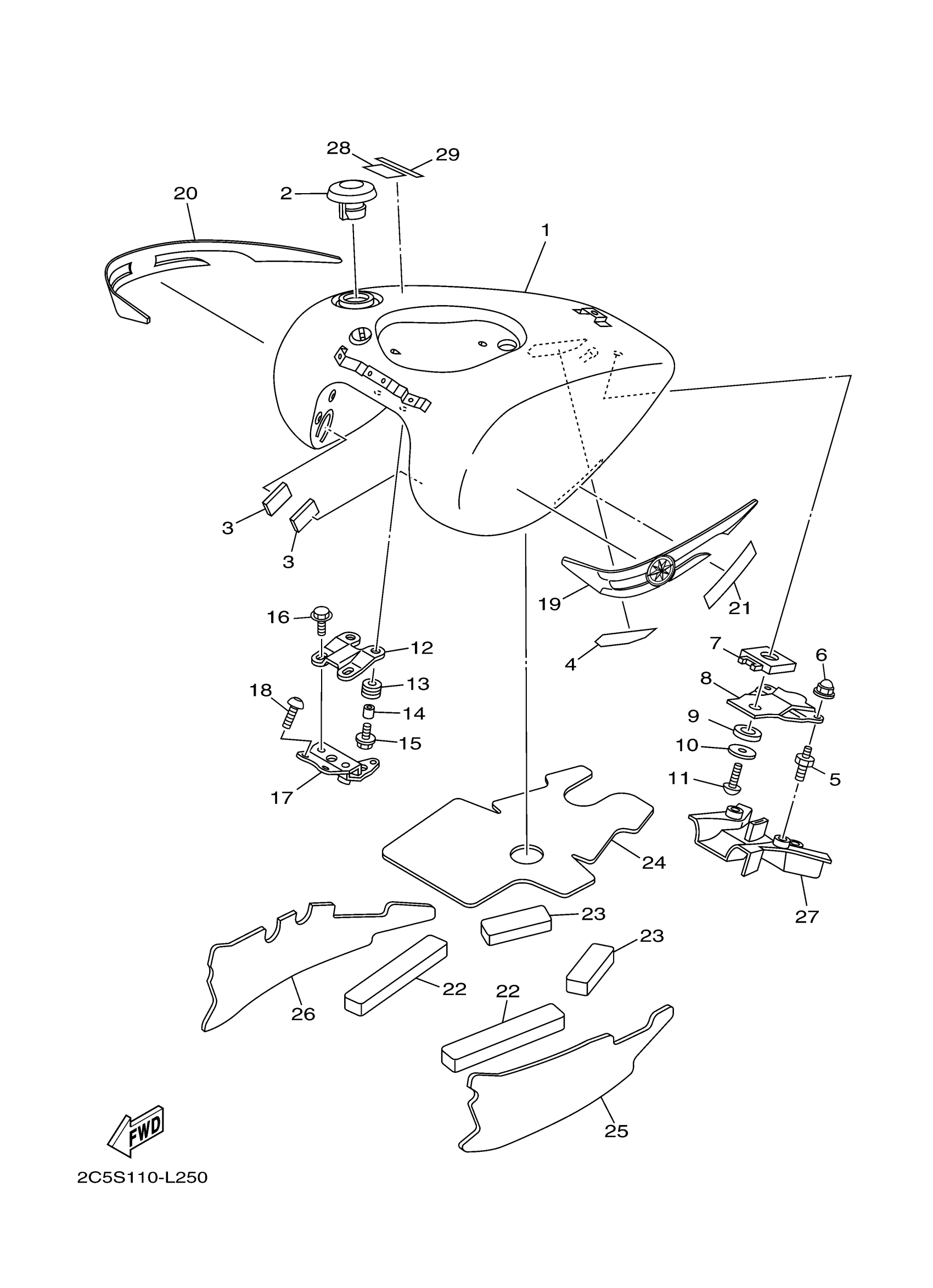

Yamaha XV19CTFBS (STRATOLINER DELUXE) 2C5V 2012 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1D7-YK241-00-P5

Unavailable

2

CAP ASSY

4NK-24602-20-00

$129.99

3

DAMPER

1FK-21746-00-00

$6.99

4

PLATE

1D7-2413X-00-00

Unavailable

5

BOLT 1

5PX-24176-01-00

Unavailable

6

NUT, CROWN(1FN)

90176-06055-00

$5.60

7

DAMPER, LOCATING 2

1D7-24182-00-00

Unavailable

8

BRACKET, TANK FITTING

1D7-2413Y-00-00

Unavailable

9

DAMPER, LOCATING 3

4TR-24183-00-00

$6.99

10

WASHER, PLATE

90201-06110-00

$8.49

11

BOLT, BUTTON HEAD

92012-06012-00

$4.35

12

BRACKET, FUEL TANK 1

1D7-24191-01-00

Unavailable

13

GROMMET(1WG)

90480-15483-00

$7.49

14

COLLAR

90387-06054-00

$8.49

15

BOLT, WITH WASHER

90119-06264-00

Unavailable

16

BOLT, FLANGE

95817-08012-00

Unavailable

17

BRACKET, FUEL TANK 2

1D7-24192-00-00

Unavailable

18

BOLT, BUTTON

92017-08025-00

Unavailable

19

EMBLEM 1

1D7-24161-10-00

Unavailable

20

EMBLEM 2

1D7-24162-10-00

Unavailable

21

TAPE

3TU-28344-00-00

Unavailable

22

DAMPER, PLATE 4

1D7-2414N-00-00

Unavailable

23

DAMPER, PLATE 5

1D7-2414P-00-00

Unavailable

24

DAMPER, PLATE 3

1D7-2414K-00-00

Unavailable

25

DAMPER, PLATE 1

1D7-2414H-00-00

Unavailable

26

DAMPER, PLATE 2

1D7-2414J-00-00

Unavailable

27

COVER

1D7-24217-00-00

Unavailable

28

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

29

LABEL, CAUTION

5PW-2415E-12-00

Unavailable
