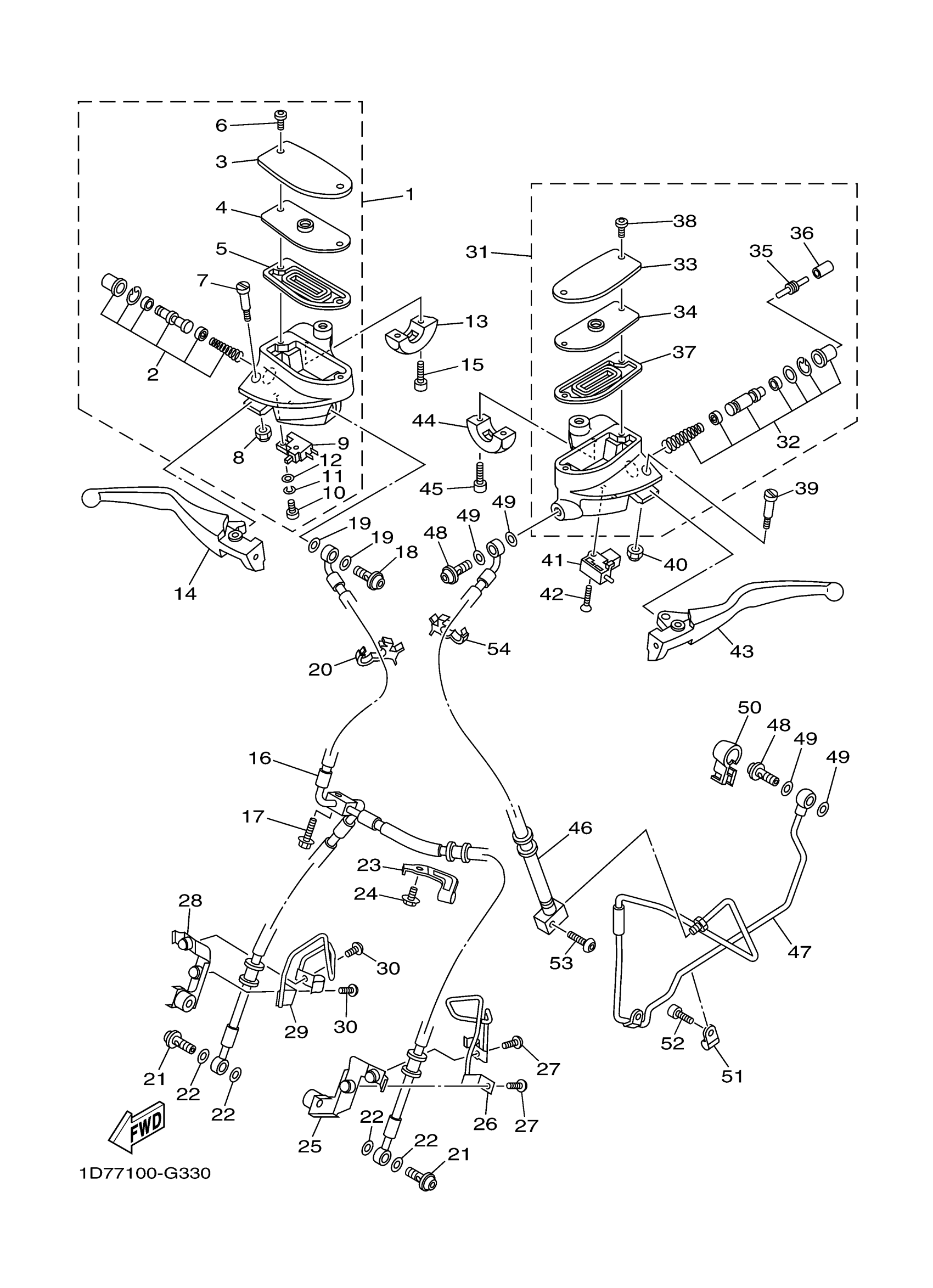

Yamaha XV19CTFBS (STRATOLINER DELUXE) 2C5V 2012 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

1D7-W2587-20-00

Unavailable

2

CYLINDER KIT, MASTER

5PX-W0041-00-00

$75.99

3

CAP, RESERVOIR

1D7-25852-20-00

Unavailable

4

PLATE, DIAPHRAGM

1D7-2585B-00-00

Unavailable

5

DIAPHRAGM, RESERVOIR

1D7-25854-01-00

$30.99

6

SCREW

1D7-2589H-00-00

$14.49

7

BOLT, LEVER

1D7-2589F-00-00

Unavailable

8

NUT, U(4NK)

95604-06100-00

$8.49

9

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

10

SCREW, PAN HEAD

98511-04012-00

Unavailable

11

WASHER(6TA)

92907-04100-00

$8.49

12

WASHER(JF2)

92907-04600-00

$1.71

13

HOLDER

1D7-26467-20-00

Unavailable

14

LEVER 2

1D7-83922-10-00

$138.99

15

BOLT,SOCKET HEAD

91314-06025-00

$8.49

16

HOSE, BRAKE 1

1D7-25872-00-00

Unavailable

17

BOLT, WASHER BASED(4EB)

90105-06791-00

Unavailable

18

BOLT, UNION

90401-10172-00

Unavailable

19

GASKET

90430-10005-00

Unavailable

20

CLAMP(4HM)

90464-15192-00

Unavailable

21

BOLT, UNION

90401-10172-00

Unavailable

22

GASKET

90430-10005-00

Unavailable

23

HOLDER, BRAKE HOSE 2

1D7-25876-00-00

Unavailable

24

BOLT, FLANGE

95817-06014-00

Unavailable

25

HOLDER, BRAKE HOSE 1

1D7-25875-00-00

Unavailable

26

STAY

1D7-25192-00-00

Unavailable

27

BOLT

90111-06031-00

Unavailable

28

HOLDER, BRAKE HOSE

1D7-25886-00-00

Unavailable

29

STAY 2

1D7-2519F-00-00

Unavailable

30

BOLT

90111-06031-00

Unavailable

31

MASTER CYLINDER SUB ASSY

1D7-W2645-20-00

Unavailable

32

CYLINDER KIT, MASTER (CLUTCH)

5JW-W0099-00-00

Unavailable

33

CAP, RESERVOIR

1D7-25852-70-00

Unavailable

34

PLATE, DIAPHRAGM

1D7-2585B-10-00

Unavailable

35

ROD, PUSH

1D7-26464-00-00

Unavailable

36

BUSH

3GM-26455-00-00

Unavailable

37

DIAPHRAGM, RESERVOIR

1D7-25854-11-00

Unavailable

38

SCREW

1D7-2589H-00-00

$14.49

39

BOLT, LEVER

1D7-2589F-00-00

Unavailable

40

NUT, U(4NK)

95604-06100-00

$8.49

41

SWITCH

3YX-82917-01-00

Unavailable

42

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

43

LEVER 1

1D7-83912-10-00

Unavailable

44

HOLDER

1D7-26467-70-00

Unavailable

45

BOLT,SOCKET HEAD

91314-06025-00

$8.49

46

HOSE, CLUTCH 1

1D7-26472-00-00

Unavailable

47

HOSE, CLUTCH 2

1D7-26473-00-00

Unavailable

48

BOLT, UNION

90401-10172-00

Unavailable

49

GASKET

90430-10005-00

Unavailable

50

COVER

1D7-26477-00-00

Unavailable

51

HOLDER

1D7-26475-00-00

Unavailable

52

BOLT,SOCKET HEAD

91314-06014-00

Unavailable

53

BOLT,HEX. SOCKET BUTTON

90111-06146-00

Unavailable

54

CLAMP(4HM)

90464-15192-00

Unavailable
