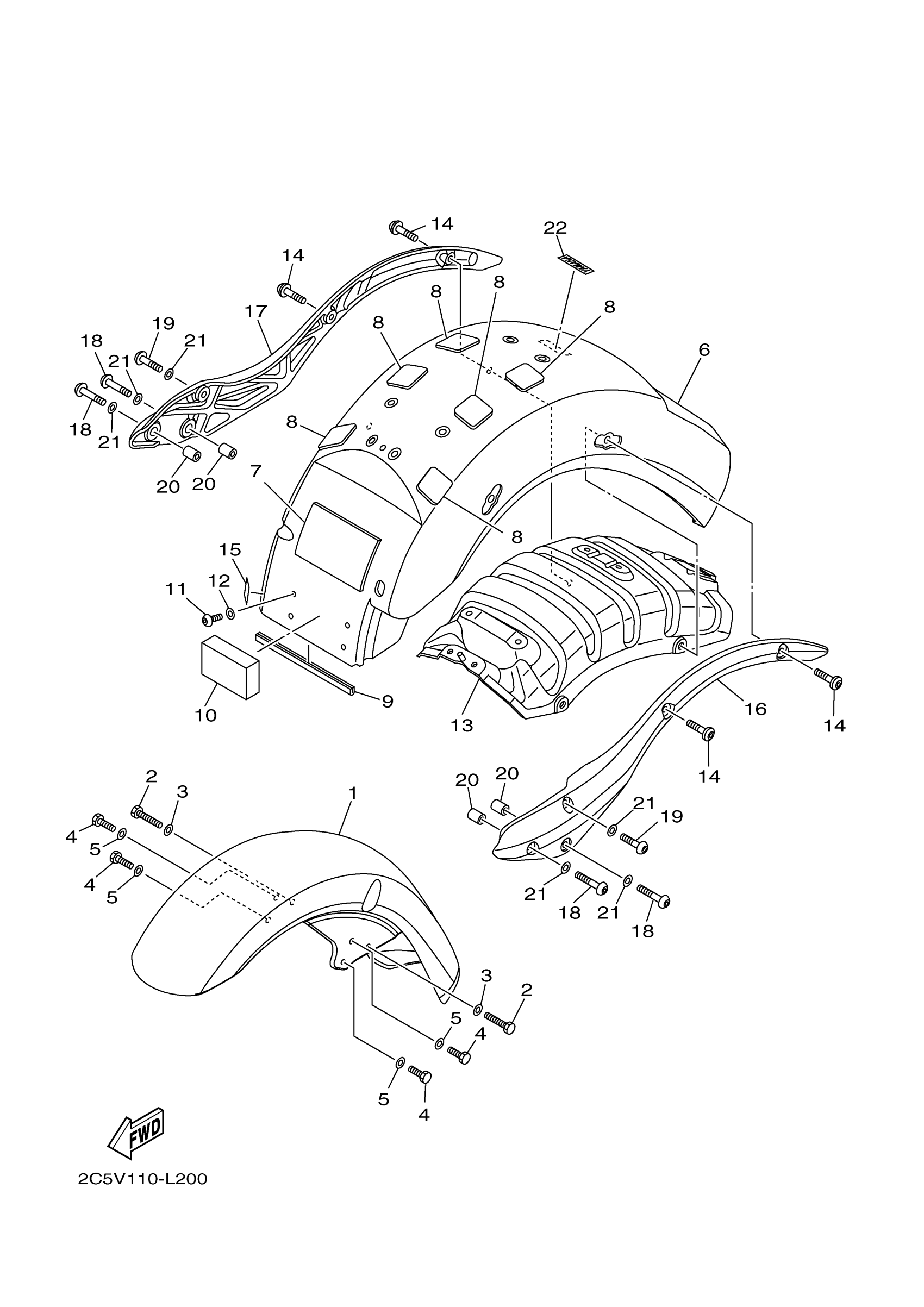

Yamaha XV19CTFBS (STRATOLINER DELUXE) 2C5V 2012 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

1D7-YK215-10-P0

Unavailable

2

BOLT, HEXAGON

97017-08030-00

$9.49

3

.. WASHER, PLATE

92990-08600-00

Unavailable

4

BOLT, HEXAGON

97017-08016-00

$8.49

5

.. WASHER, PLATE

92990-08600-00

Unavailable

6

REAR FENDER COMP. (SILVER 3)

1D7-YK216-00-P5

Unavailable

7

DAMPER, LOCATING 2

5PX-21779-00-00

$7.99

8

SEAL

5PX-21669-01-00

$11.99

9

MOLD, FUEL TANK

1D7-24188-00-00

Unavailable

10

DAMPER 2

1D7-21639-00-00

$9.99

11

BOLT, BUTTON HEAD

92012-06012-00

$4.35

12

WASHER, PLATE

90201-06036-00

$8.49

13

STAY, REAR

1D7-21643-00-00

Unavailable

14

BOLT

90111-08033-00

$8.49

15

SEAL 1

3FY-21575-01-00

$10.99

16

STAY, FENDER 1

1D7-21613-20-00

Unavailable

17

STAY, FENDER 2

1D7-21614-20-00

Unavailable

18

BOLT, BUTTON HEAD(3LS)

92014-10050-00

Unavailable

19

BOLT, BUTTON HEAD

92014-10040-00

Unavailable

20

PIN, DOWEL

99530-14016-00

Unavailable

21

WASHER, PLATE

90201-10081-00

Unavailable

22

EMBLEM, YAMAHA

3WF-2153E-71-00

Unavailable
