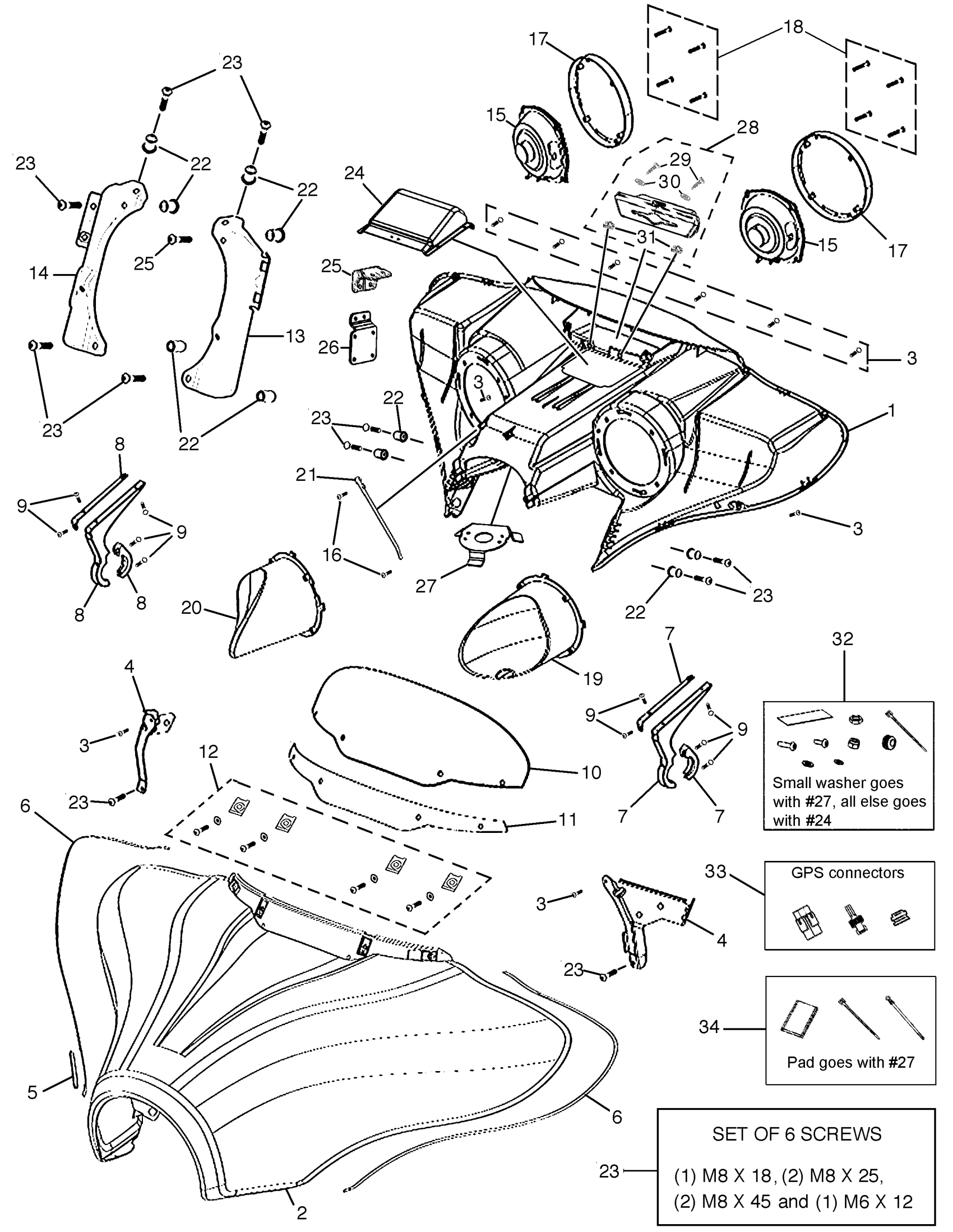

Yamaha XV19CTFBS (STRATOLINER DELUXE) 2C5V 2012 COWLING Diagram
#
1
COWLING BODY ASSY
2C5-F830A-T0-00
Unavailable
2
UPPER COWLING ASSY 1
2C5-F8330-N0-00
Unavailable
3
SCREW SET (M4 X 16)
2C5-F585H-T0-00
Unavailable
4
UPPER BRACKET ASSY
2C5-F2209-V0-00
Unavailable
5
PROTECTOR TAPE
2C5-F3472-V0-00
Unavailable
6
PROTECTOR TAPE
2C5-F8344-V0-00
Unavailable
7
BRACKET, HANDLE 1
2C5-F6223-V0-00
Unavailable
8
BRACKET, HANDLE 2
2C5-F6224-V0-00
Unavailable
9
SCREW SET (M5 X 16)
2C5-F585H-S0-00
Unavailable
10
WINDSCREEN ASSY
2C5-F83H0-R0-00
Unavailable
11
COVER, FRONT
2C5-F2865-V0-00
Unavailable
12
SCREW SET
2C5-F585H-R0-00
Unavailable
13
BRACKET 1
2C5-F334G-V0-00
Unavailable
14
BRACKET 2
2C5-F334H-V0-00
Unavailable
15
SPEAKER 1
2C5-H8161-V0-00
Unavailable
16
SCREW, SELF-TAPPING
2C5-H253U-V0-00
Unavailable
17
GRILLE, SPEAKER 1
2C5-H8163-V0-00
Unavailable
18
SCREW SET (M4 X 30)
2C5-F585H-V0-00
Unavailable
19
SPEAKER ENCLOSURE 1
2C5-H8160-V0-00
Unavailable
20
SPEAKER ENCLOSURE 2
2C5-H8170-V0-00
Unavailable
21
BAND
2C5-H2591-V0-00
Unavailable
22
COLLAR SET
2C5-F511X-V0-00
Unavailable
23
SCREW SET
2C5-F585H-P0-00
Unavailable
24
BRKT., GPS 2
2C5-HA892-V0-00
Unavailable
25
HINGE
2C5-HA8H0-V0-00
Unavailable
26
BRKT., GPS 1
2C5-HA891-V0-00
Unavailable
27
BRKT., GPS ANTENNA 1
2C5-H8144-V0-00
Unavailable
28
COWLING SHELF DOOR KIT
2C5-F83P0-V0-00
Unavailable
29
. SCREW
2C5-F8354-V0-00
Unavailable
30
. WASHER
2C5-F8319-V0-00
Unavailable
31
. LOCK TAB
2C5-F8457-V0-00
Unavailable
32
SCREW SET
2C5-F585H-N0-00
Unavailable
33
HARDWARE KIT
2C5-F15F2-V0-00
Unavailable
34
HARDWARE KIT, INNER FENDER
2C5-F1552-T0-00
Unavailable
