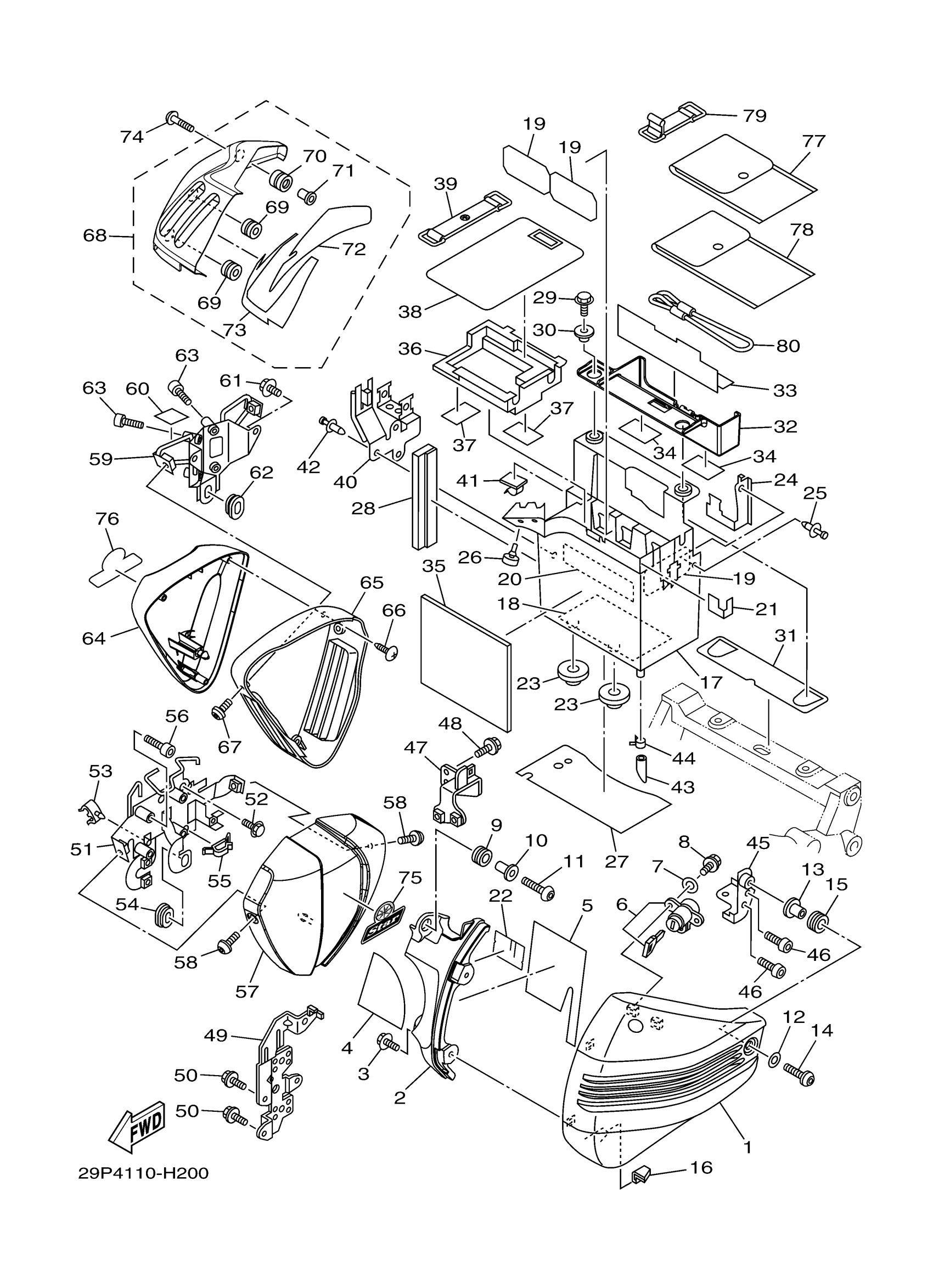

Yamaha XV19CSZCB (RAIDER S CA) 5C75 2010 SIDE COVER Diagram
#
2
COVER 9
1D7-2117X-00-00
Unavailable
3
BOLT, FLANGE
95817-06014-00
Unavailable
5
DAMPER
1D7-21746-00-00
Unavailable
6
ROTOR SET
5PX-W2470-00-00
Unavailable
16
GUIDE
5PX-2171H-00-00
Unavailable
17
BOX, BATTERY
1D7-2177G-02-00
Unavailable
18
DAMPER, LOCATING 2
5C7-21779-00-00
Unavailable
19
PROTECTOR
5PX-21652-00-00
Unavailable
20
DAMPER, LOCATING 1
5PX-21778-00-00
Unavailable
21
SEAL 4
5C7-2173N-00-00
Unavailable
22
SEAL 2
5C7-21735-00-00
Unavailable
23
GROMMET(42X)
90480-20384-00
Unavailable
24
BRACKET 3
5C7-2172M-00-00
Unavailable
25
RIVET(4PH)
90269-07077-00
Unavailable
26
DAMPER
1D7-2174X-00-00
Unavailable
27
DAMPER, LOCATING 4
1D7-2177N-01-00
Unavailable
28
DAMPER, LOCATING 1
1D7-21778-00-00
Unavailable
29
BOLT, FLANGE
95022-06020-00
Unavailable
30
COLLAR
90387-06267-00
Unavailable
31
DAMPER
5C7-21747-00-00
Unavailable
32
BOX, TOOL
5C7-28173-00-00
Unavailable
33
DAMPER
5C7-2174Y-00-00
Unavailable
34
DAMPER
5H0-8235Y-M0-00
Unavailable
35
SEAL 1
1D7-21732-00-00
Unavailable
36
COVER, BATTERY
5PX-82129-00-00
Unavailable
37
DAMPER
5JW-2139X-00-00
Unavailable
38
STAY SETTING
5VN-8412H-00-00
Unavailable
39
BAND,BATTERY
7H3-82131-00-00
Unavailable
40
BRACKET 1
1D7-2172K-00-00
Unavailable
41
CLAMP(3YL)
90464-25160-00
Unavailable
42
RIVET(4PH)
90269-07077-00
Unavailable
43
HOSE (L35)
90445-11027-00
Unavailable
44
CLIP(3BM)
90467-10135-00
Unavailable
45
BRACKET 1
1D7-2175T-00-00
Unavailable
46
BOLT, BUTTON HEAD
92017-06016-00
Unavailable
47
BRACKET 4
5C7-2172N-00-00
Unavailable
48
BOLT, FLANGE
95817-06014-00
Unavailable
49
STAY, SIDE COVER 2
5PX-2174E-01-00
Unavailable
50
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
51
BRACKET 3
5C7-2175V-00-00
Unavailable
52
BOLT, FLANGE
95817-08035-00
Unavailable
53
CLAMP(3LD)
90464-09130-00
Unavailable
54
GROMMET(4DN)
90480-01558-00
Unavailable
55
CLAMP
90464-14001-00
Unavailable
56
. BOLT
91380-06020-00
Unavailable
57
COVER, SIDE 3
5C7-21731-01-00
Unavailable
58
SCREW(4DN)
90149-06302-00
Unavailable
59
BRACKET 4
1D7-2175W-00-00
Unavailable
60
SEAL 3
5C7-2173M-00-00
Unavailable
61
BOLT, FLANGE
95022-06010-00
Unavailable
62
GROMMET(4DN)
90480-01558-00
Unavailable
63
. BOLT
91380-06020-00
Unavailable
64
COVER, SIDE 4
5C7-21741-01-00
Unavailable
65
BODY
1D7-2171D-00-00
Unavailable
66
SCREW, TAPPING(4TV)
90167-05077-00
Unavailable
67
SCREW(4DN)
90149-06302-00
Unavailable
68
PLATE, COVER
5C7-17471-00-P3
Unavailable
69
GROMMET
90480-13007-00
Unavailable
70
GROMMET
90480-13006-00
Unavailable
71
COLLAR
90387-07007-00
Unavailable
72
SEAL, CRANKCASE
5C7-15379-00-00
Unavailable
73
SEAL
5C7-15663-00-00
Unavailable
74
BOLT, HEXAGON SOCKET HEAD(3GM)
90110-06202-00
Unavailable
75
EMBLEM 3D
29P-2173D-00-00
Unavailable
76
EMBLEM 3D
29P-2173D-00-00
Unavailable
77
TOOL KIT
5C7-28100-00-00
Unavailable
78
TOOL KIT, 2
5C7-28110-00-00
Unavailable
79
BAND, BATTERY
3TJ-82131-00-00
Unavailable
80
HANGER, HELMET
4HC-21398-00-00
Unavailable
