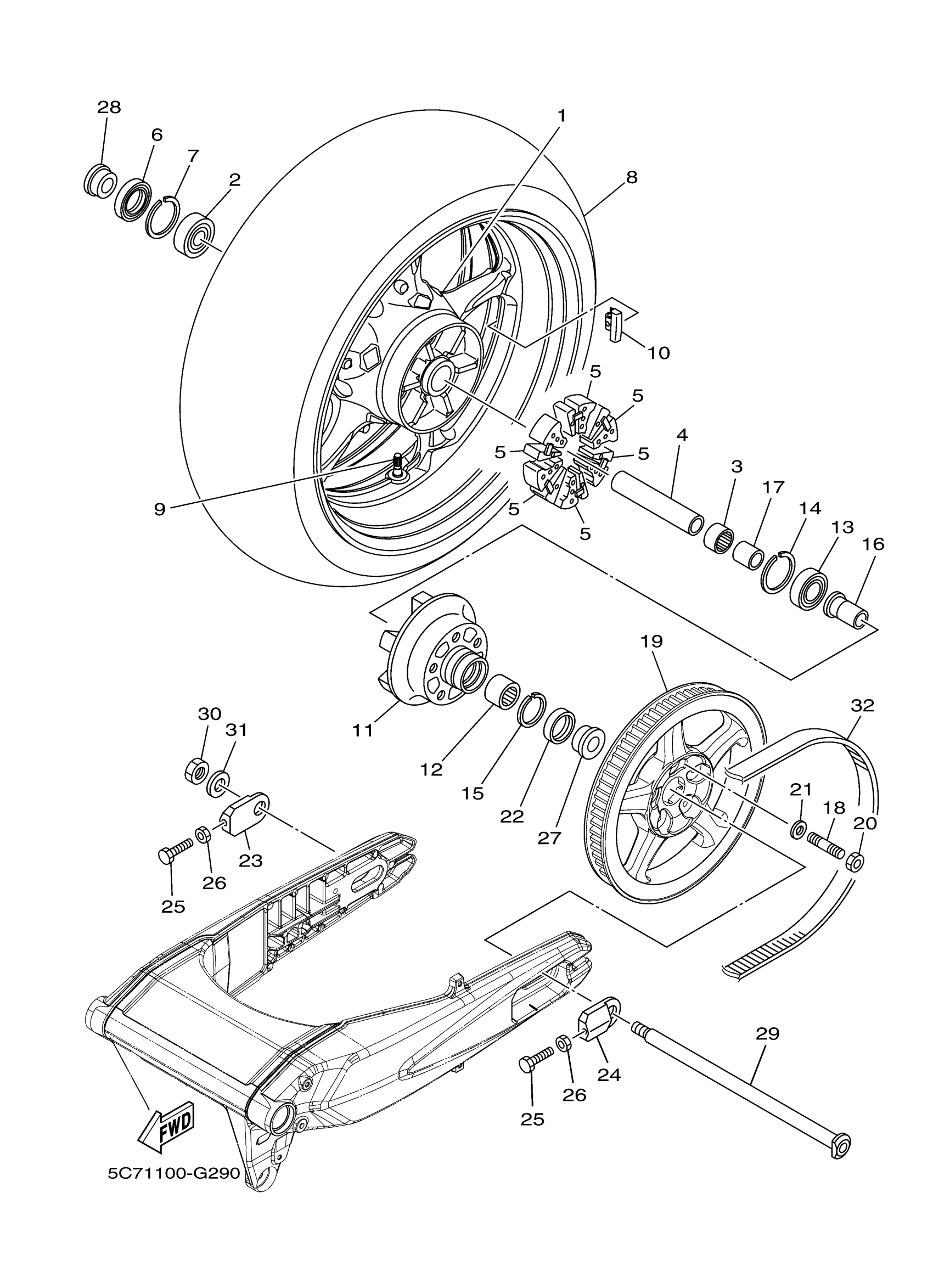

Yamaha XV19CSZCB (RAIDER S CA) 5C75 2010 REAR WHEEL Diagram
#
Description
Price
1
CAST WHEEL, REAR
5C7-25338-01-P0
Unavailable
6
OIL SEAL
93106-28001-00
Unavailable
10
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
15
CIRCLIP
93450-35163-00
Unavailable
16
COLLAR, WHEEL
4WM-25376-10-00
Unavailable
17
COLLAR, WHEEL
1D7-25383-00-00
Unavailable
18
BOLT, STUD
95617-12630-00
Unavailable
19
SPROCKET, DRIVEN (66T)
5C7-25466-01-00
Unavailable
20
NUT, U
95614-12100-00
Unavailable
21
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
22
OIL SEAL (30X42X8-102)
93106-30004-00
Unavailable
23
PULLER, CHAIN 1
1D7-25388-00-00
Unavailable
24
PULLER, CHAIN 2
1D7-25389-00-00
Unavailable
25
BOLT
90101-08012-00
Unavailable
26
NUT
95302-08600-00
Unavailable
27
COLLAR(3BC)
90387-202X9-00
Unavailable
28
COLLAR
90387-20033-00
Unavailable
29
AXLE, WHEEL
1D7-25381-00-00
Unavailable
30
NUT, SELF-LOCKING
90185-18009-00
Unavailable
31
WASHER, PLATE (1J7)
90201-18620-00
Unavailable
32
V BELT
5C7-46241-01-00
Unavailable
