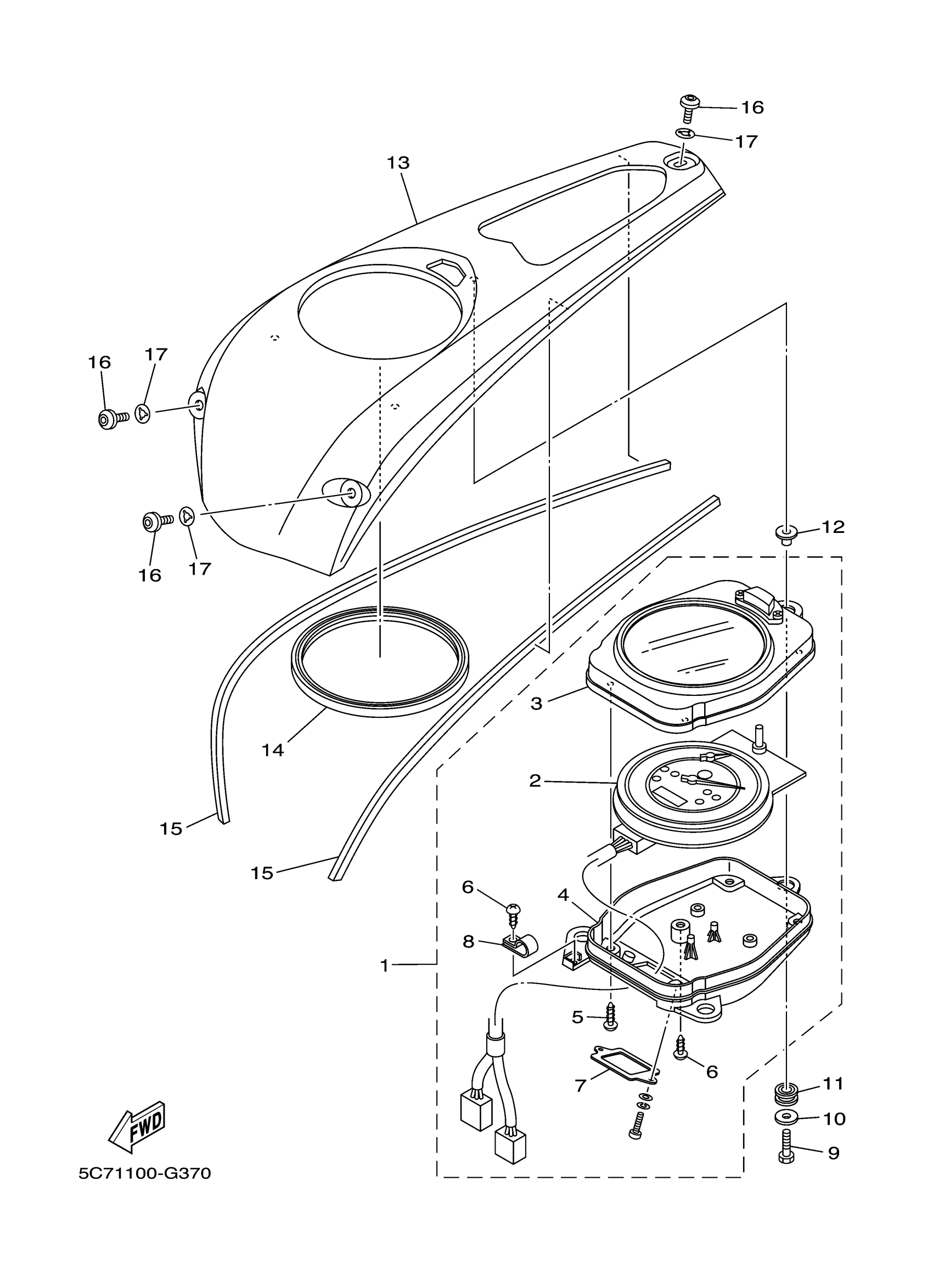

Yamaha XV19CSZCB (RAIDER S CA) 5C75 2010 METER Diagram

#

Description
Price

1

METER ASSY

5C7-83500-02-00

$849.99

2

SPEEDOMETER ASSY

5C7-83510-02-00

$922.99

3

CASE, METER UPPER

5C7-8353E-00-00

Unavailable

4

CASE, METER LOWER

4WM-8353F-02-00

Unavailable

5

SCREW, TRUSS TAP.

97707-40016-00

$8.49

6

SCREW, TAPPING(71E)

90164-04023-00

Unavailable

7

BRACKET, METER

4WM-83519-00-00

$7.99

8

CLAMP

5EL-8357E-00-00

$3.28

9

SCREW, PAN HEAD

98517-05020-00

$4.25

10

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

11

DAMPER

4WM-83513-00-00

$7.99

12

COLLAR(82M)

90387-050T5-00

$7.49

13

COVER, METER

5C7-83559-00-00

Unavailable

14

MOLE 3

5C7-28347-00-00

Unavailable

15

MOLE 1

5C7-28345-00-00

$15.49

16

SCREW(1XL)

90149-06264-00

Unavailable

17

PLATE

4U5-2176E-00-00

Unavailable
