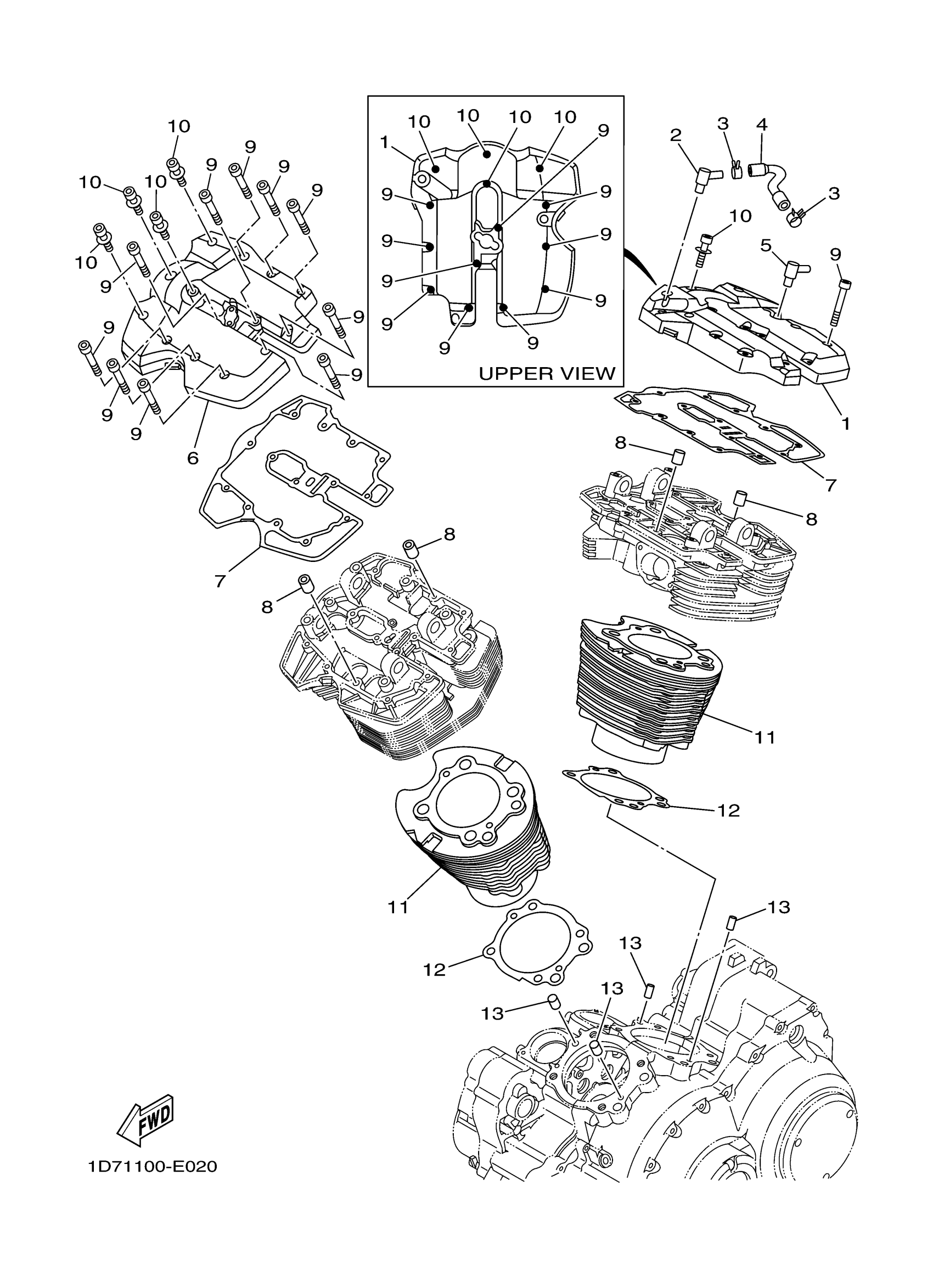

Yamaha XV19CSZCB (RAIDER S CA) 5C75 2010 CYLINDER Diagram

COVER, CYLINDER HEAD 1

1D7-11191-00-00

Unavailable

PIPE, BREATHER 2

5PX-11167-00-00

Unavailable

CLIP

90467-15001-00

$7.49

PIPE, BREATHER 1

1D7-11166-00-00

Unavailable

BREATHER

4GL-15371-01-00

Unavailable

COVER, CYLINDER HEAD 2

1D7-11192-01-00

Unavailable

GASKET, HEAD COVER 1

1D7-11193-00-00

$64.99

PIN, DOWEL(3XW)

91808-16023-00

$8.49

BOLT, HEXAGON SOCKET HEAD

90110-06207-00

$7.49

BOLT, HEXAGON SOCKET HEAD

90110-06421-00

$4.51

CYLINDER 1

1D7-11311-01-00

Unavailable

GASKET, CYLINDER

1D7-11351-00-00

$25.99

COLLAR(2JG)

90387-062T5-00

$9.49
