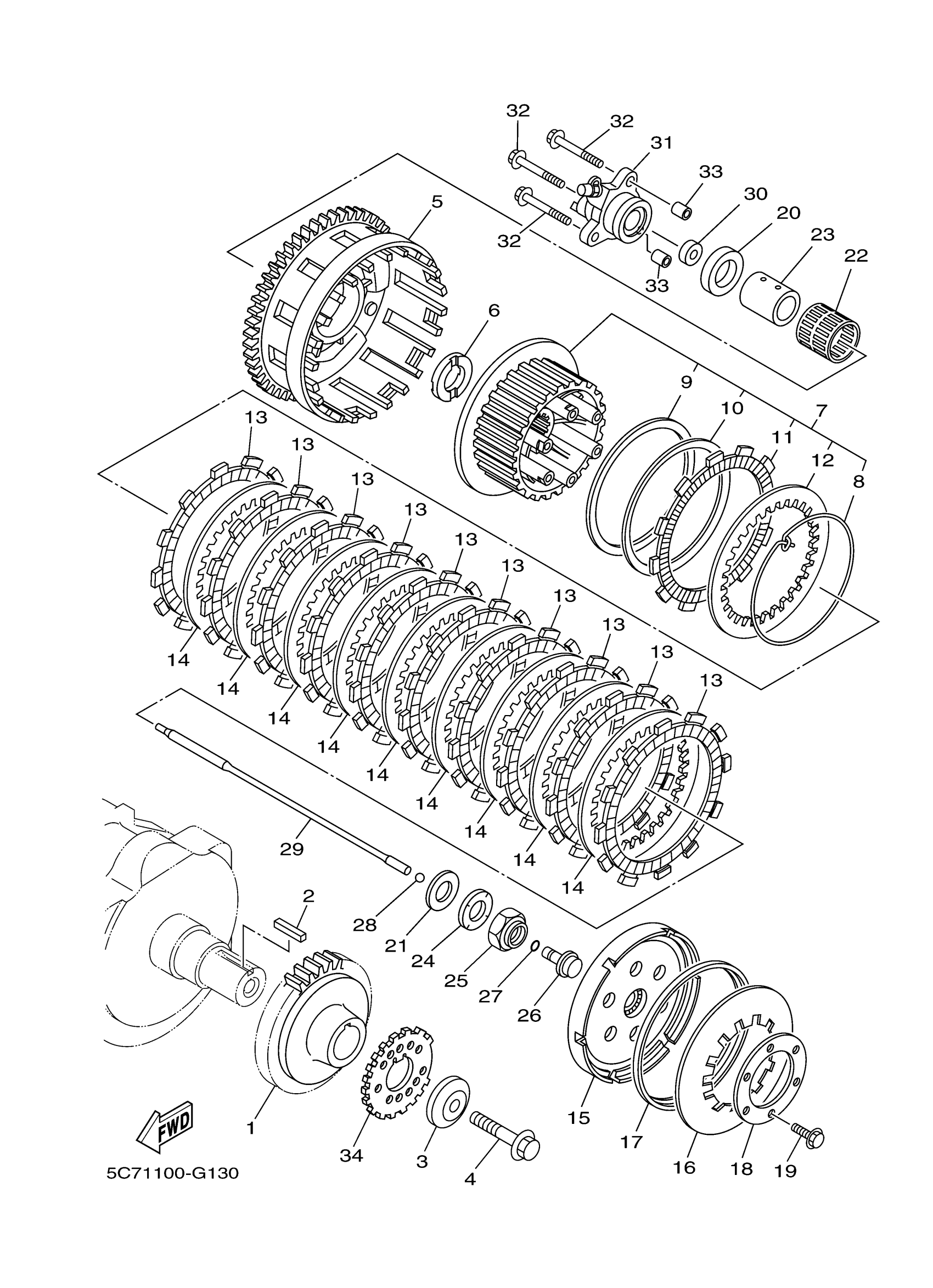

Yamaha XV19CSZCB (RAIDER S CA) 5C75 2010 CLUTCH Diagram
#
Description
Price
1
GEAR, PRIMARY DRIVE
1D7-16111-00-00
Unavailable
2
KEY, FEATHER
4WM-16193-00-00
Unavailable
3
SPACER 1
4WM-16181-00-00
Unavailable
4
BOLT, FLANGE
90105-12059-00
Unavailable
5
PRIMARY DRIVEN GEAR COMP.
1D7-16150-00-00
Unavailable
7
CLUTCH BOSS ASSY
1D7-16370-00-00
Unavailable
15
PRESSURE PLATE ASSY
1D7-16350-00-00
Unavailable
16
SPRING, CLUTCH 2
5C7-16334-00-00
Unavailable
17
HOUSING, SPRING
36Y-16335-00-00
Unavailable
18
PLATE, PRESSURE 2
1TX-16352-00-00
Unavailable
19
BOLT, FLANGE
95817-06025-00
Unavailable
20
PLATE, THRUST 2
1D7-16164-00-00
Unavailable
21
WASHER, PLATE
90201-22013-00
Unavailable
22
BEARING
93310-33559-00
Unavailable
23
COLLAR
90387-28006-00
Unavailable
24
WASHER, CONICAL SPRING
90208-22003-00
Unavailable
25
NUT
90179-22010-00
Unavailable
26
ROD, PUSH 1
4KG-16356-00-00
Unavailable
27
O-RING (26H)
93210-06632-00
Unavailable
28
BALL (498)
93511-32027-00
Unavailable
29
ROD, PUSH 2
1D7-16357-00-00
Unavailable
30
OIL SEAL(12E)
93109-08061-00
Unavailable
31
PUSH LEVER COMP.
1D7-16381-00-00
Unavailable
32
BOLT, FLANGE
95814-06055-00
Unavailable
33
PIN, DOWEL
99530-08012-00
Unavailable
34
ROTOR
1D7-81673-01-00
Unavailable
