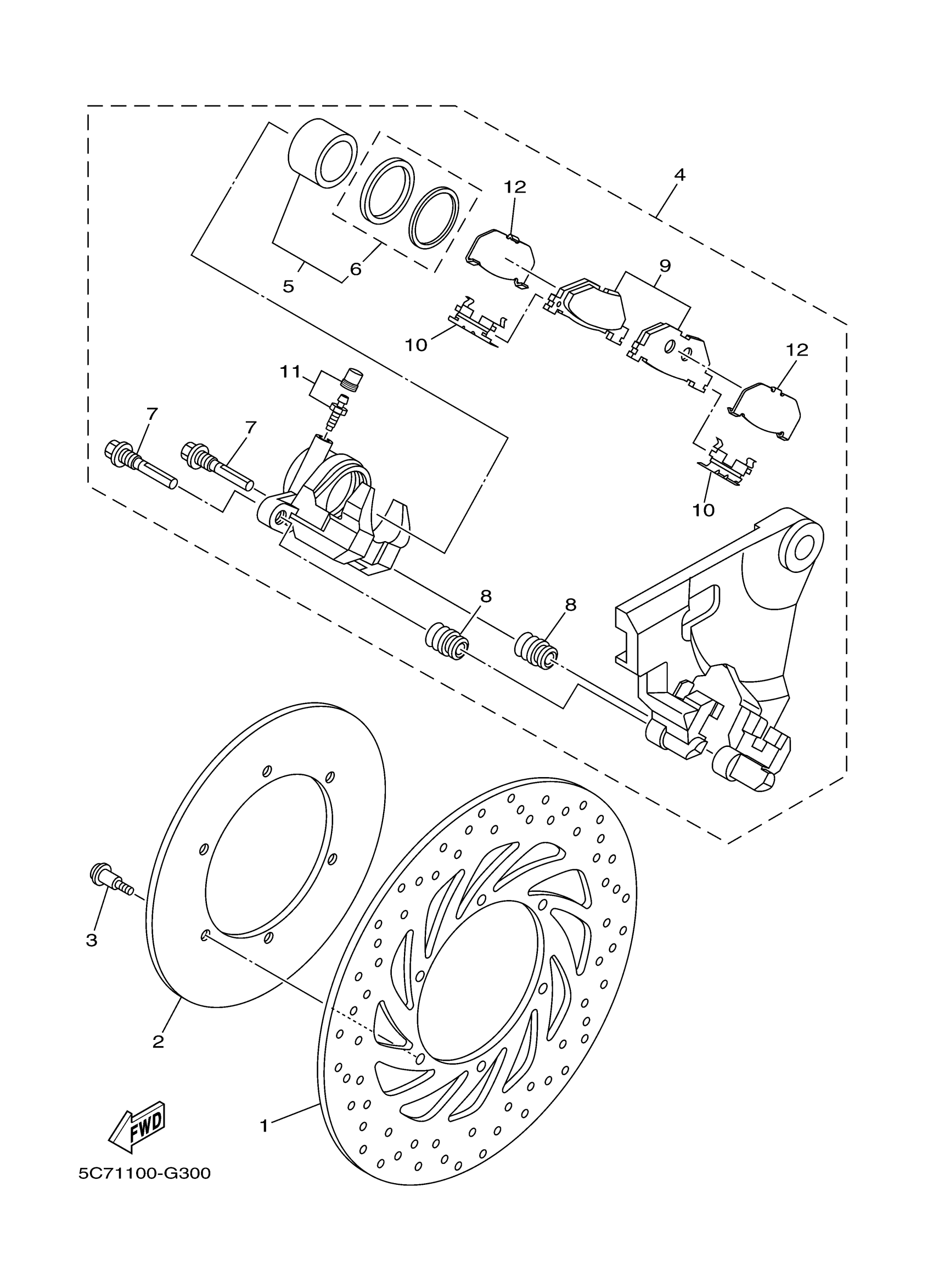

Yamaha XV19CSXR (RAIDER S with Flames) 29P1 2008 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

5C7-2582W-00-00

Unavailable

2

PLATE, DISK

5C7-2581A-00-00

Unavailable

3

BOLT

90109-06050-00

$5.50

4

CALIPER ASSY, REAR 2

5C7-2580W-20-00

Unavailable

5

PISTON ASSY, CALIPER

1D7-25802-00-00

$45.90

6

CALIPER SEAL KIT

5JW-25803-00-00

$13.44

7

PIN, SLIDE

4D9-25914-00-00

$8.92

8

BOOT 2

4TT-25937-00-00

$13.33

9

BRAKE PAD KIT 2

3D8-25806-00-00

$42.94

10

SUPPORT, PAD

1D7-25919-00-00

$14.81

11

BLEED SCREW KIT

15B-W0048-00-00

$16.89

12

SHIM, CALIPER

5GJ-25827-00-00

$9.71
