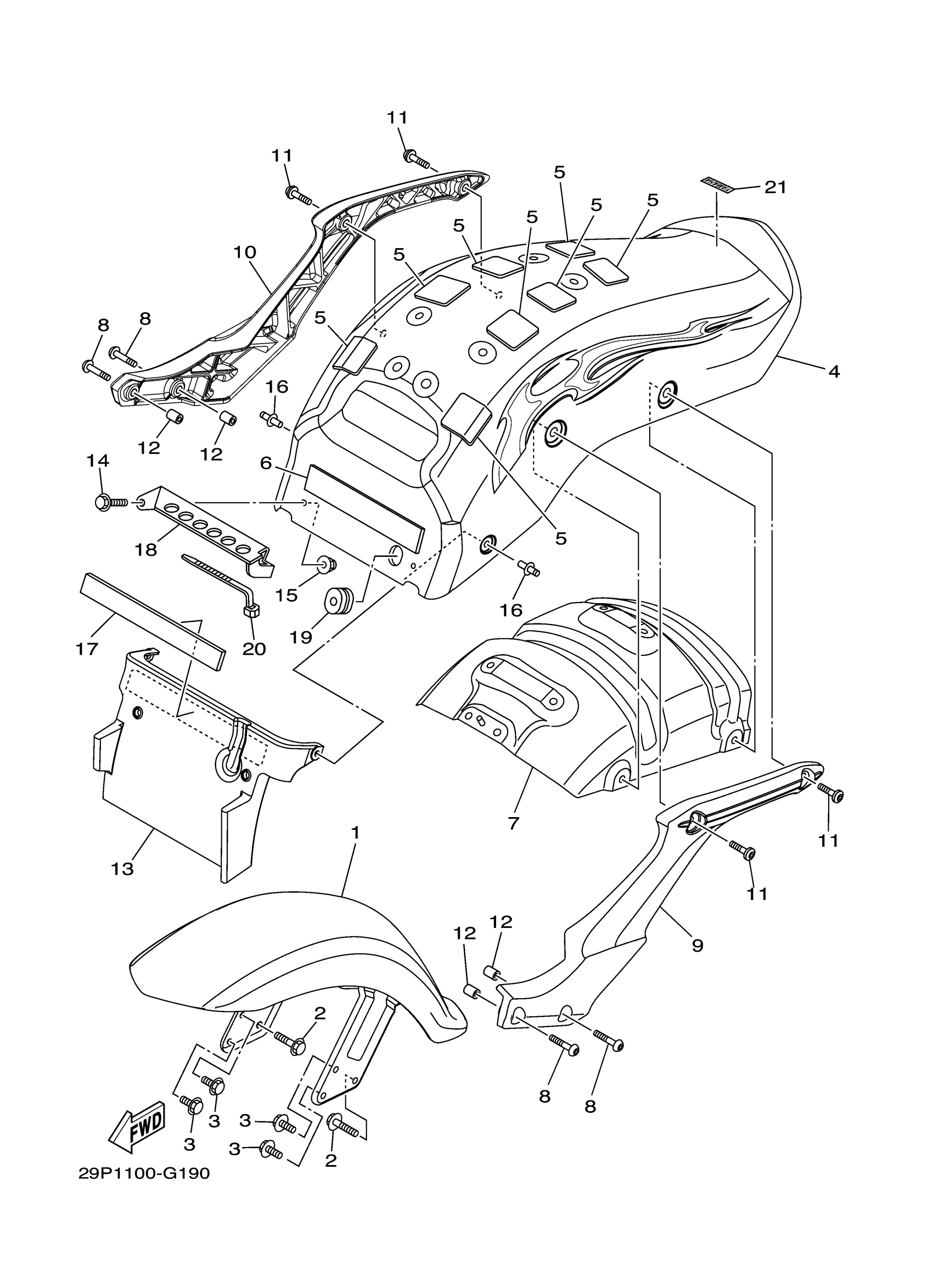

Yamaha XV19CSXR (RAIDER S with Flames) 29P1 2008 FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
5C7-YK215-02-P0
Unavailable
4
REAR FENDER COMP.
5C7-Y2161-00-P0
Unavailable
9
STAY, FENDER 1
5C7-21613-01-00
Unavailable
10
STAY, FENDER 2
5C7-21614-01-00
Unavailable
13
GUARD, MUD
5C7-21629-00-00
Unavailable
16
RIVET(4PH)
90269-07077-00
Unavailable
17
DAMPER 2
5C7-21639-00-00
Unavailable
18
BRACKET, REAR STAY
5C7-21688-00-00
Unavailable
19
GROMMET
90480-01015-00
Unavailable
20
CLAMP
90464-13077-00
Unavailable
21
EMBLEM, YAMAHA
3WF-2153E-71-00
Unavailable
