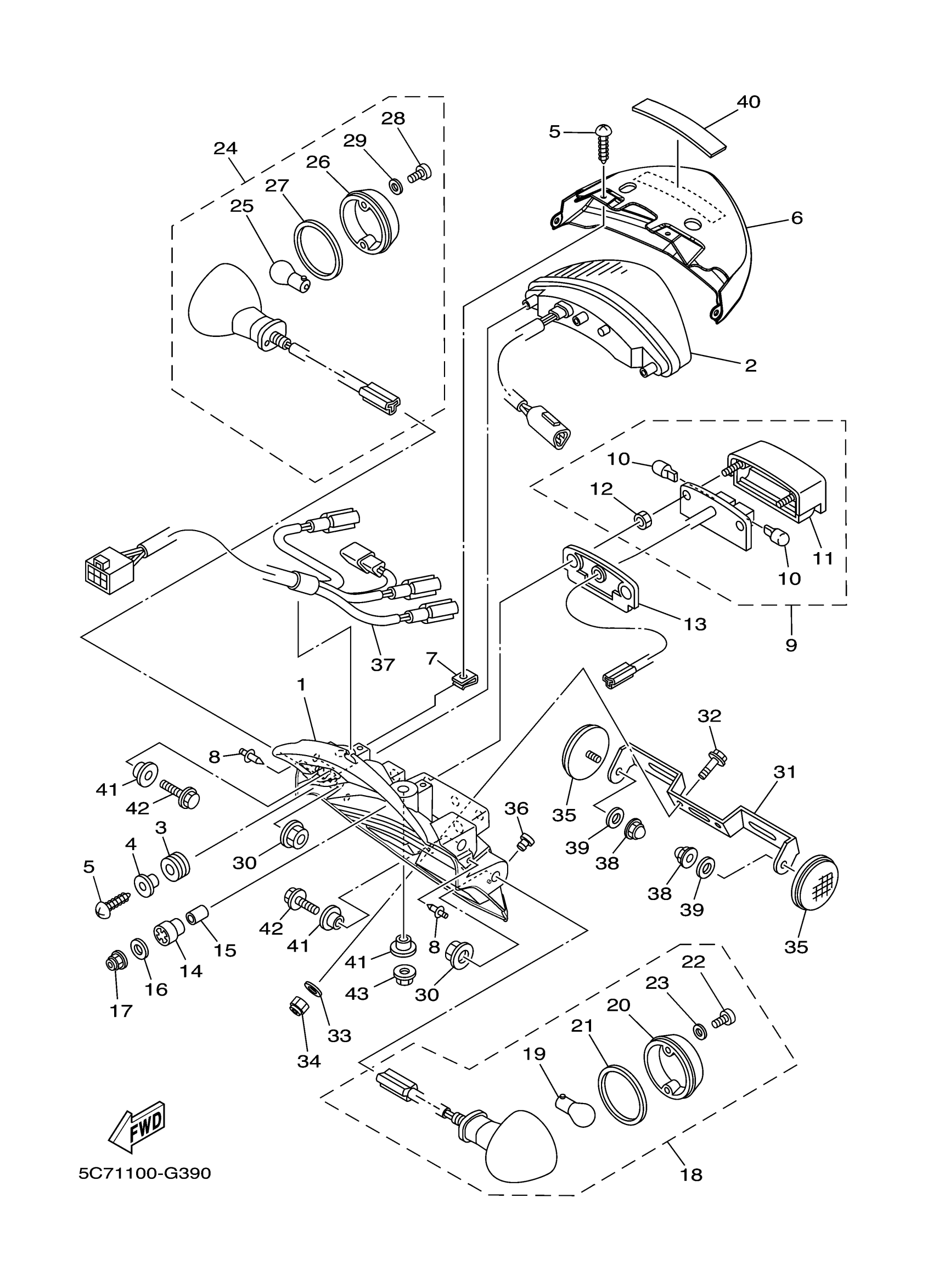

Yamaha XV19CSXL (RAIDER S) 5C71 2008 TAILLIGHT Diagram

BASE, TAILLIGHT

5C7-84711-00-00

$155.99

TAILLIGHT UNIT ASSY

5C7-84710-00-00

Unavailable

DAMPER

5PX-84553-00-00

$3.64

COLLAR

5PX-84557-00-00

$3.74

SCREW, TRUSS TAP.

97707-50012-00

$4.63

COVER, TAILLIGHT

5C7-84716-01-00

Unavailable

NUT, SPRING(1YT)

90183-05042-00

$5.60

RIVET

90269-06012-00

$11.49

LICENCE LIGHT UNIT ASSY

5C7-84745-00-00

$115.99

BULB

5PX-84744-00-00

$3.22

BODY, LICENCE LIGHT

5PX-84749-00-00

$83.99

NUT, SPECIAL

5PX-84748-00-00

Unavailable

SEAT, BASE

5PX-84742-00-00

$7.99

DAMPER

3F9-84553-00-00

Unavailable

COLLAR (420)

90387-06241-00

$8.49

WASHER, PLATE

90201-05025-00

Unavailable

NUT, U

95617-05100-00

Unavailable

REAR FLASHER LIGHT ASSY 1

5C7-83330-00-00

Unavailable

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

LENS, FLASHER

5PX-83312-10-00

Unavailable

GASKET, FLASHER LENS

5PX-83313-00-00

Unavailable

SCREW, TAPPING

97704-40625-00

Unavailable

WASHER

5PX-83348-00-00

Unavailable

REAR FLASHER LIGHT ASSY 2

5C7-83340-00-00

Unavailable

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

LENS, FLASHER 2

5PX-83342-10-00

Unavailable

GASKET, FLASHER LENS

5PX-83313-00-00

Unavailable

SCREW, TAPPING

97704-40625-00

Unavailable

WASHER

5PX-83348-00-00

Unavailable

95702-12500

95702-12500-00

Unavailable

BRACKET, LICENSE

5C7-84751-00-00

Unavailable

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

WASHER, PLATE

90201-06380-00

Unavailable

NUT, SELF-LOCKING

95617-06100-00

Unavailable

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

PLUG(1NL)

90338-07180-00

Unavailable

CORD, TAILLIGHT

5C7-84717-00-00

Unavailable

NUT, CROWN

90176-05004-00

Unavailable

WASHER, PLAIN (3GDF)

90201-051K1-00

Unavailable

DAMPER (L.H)

1AE-2834E-00-00

Unavailable

COLLAR

90387-06153-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable

NUT, U FLANGE

95604-06200-00

Unavailable
