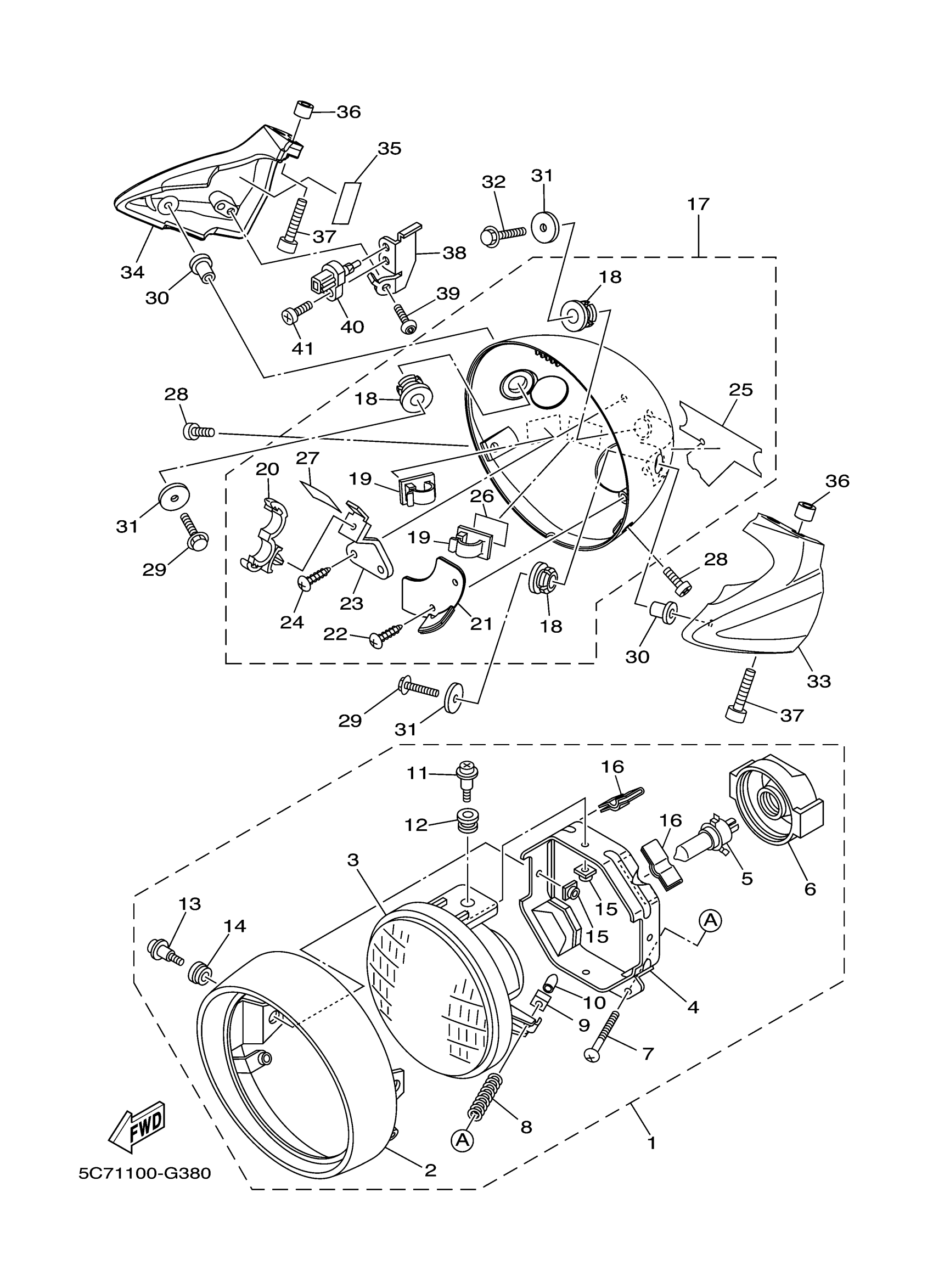

Yamaha XV19CSXL (RAIDER S) 5C71 2008 HEADLIGHT Diagram
#
Description
Price
16
SEAL
5PX-21669-01-00
Unavailable
17
BODY ASSY
5C7-84330-01-00
Unavailable
18
DAMPER, HEADLIGHT 1
5PX-84366-00-00
Unavailable
19
CLAMP(4FM)
90464-13185-00
Unavailable
20
CLAMP(4TR)
90464-18246-00
Unavailable
21
PLATE, SET
5C7-84309-00-00
Unavailable
22
SCREW, TAPPING
97702-50016-00
Unavailable
23
METAL, ADJUSTING
5C7-8431T-00-00
Unavailable
24
SCREW, TAPPING
97702-50016-00
Unavailable
25
PLATE, GUIDE
5C7-8413G-00-00
Unavailable
26
SEAL
5C7-28307-00-00
Unavailable
27
DAMPER
2AL-84553-00-00
Unavailable
28
SCREW, BIND(4DN)
98980-05014-00
Unavailable
29
BOLT, FLANGE
95022-06025-00
Unavailable
30
COLLAR
90387-06206-00
Unavailable
31
WASHER, PLATE
90201-06086-00
Unavailable
32
BOLT, FLANGE
95022-06012-00
Unavailable
33
STAY, HEADLIGHT 1
5C7-84118-00-00
Unavailable
34
STAY, HEADLIGHT 2
5C7-84119-00-00
Unavailable
35
DAMPER, HEADLIGHT STAY
5C7-84143-00-00
Unavailable
36
PIN, DOWEL(N02)
91810-08012-00
Unavailable
37
BOLT, SOCKET
91317-08035-00
Unavailable
38
STAY, SETTING
5C7-8431R-00-00
Unavailable
39
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
40
SENSOR, AIR TEMPERATURE
5YU-85886-00-00
Unavailable
41
SCREW, PAN HEAD
98507-05014-00
Unavailable
