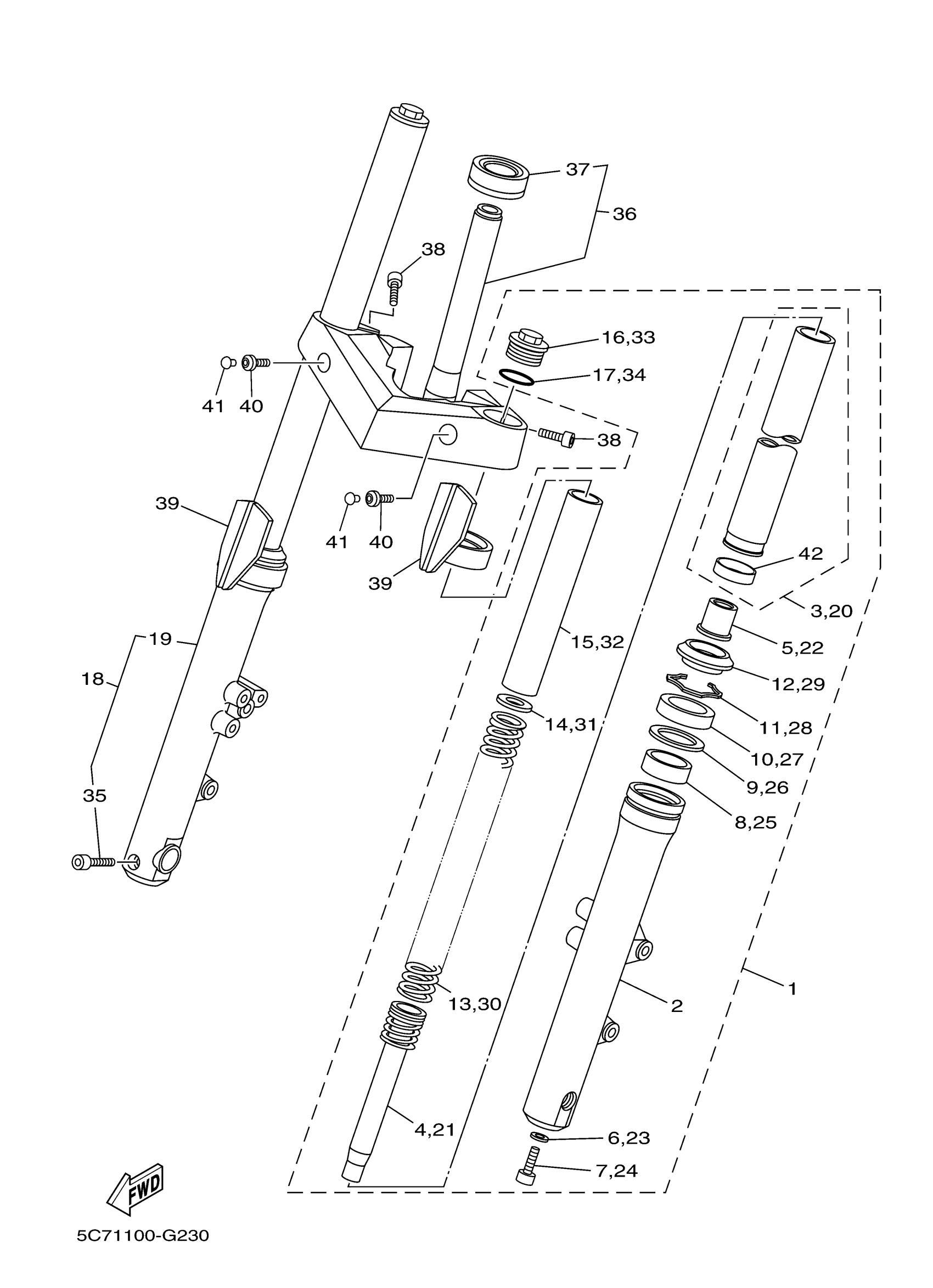

Yamaha XV19CSXL (RAIDER S) 5C71 2008 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L.H)
5C7-23102-00-00
Unavailable
2
TUBE, OUTER (LEFT)
5C7-23126-01-00
Unavailable
4
CYLINDER COMP., FRONT FORK
5C7-23170-00-00
Unavailable
5
SPINDLE, TAPER
1D7-23173-00-00
Unavailable
7
BOLT
3R4-23181-L0-00
Unavailable
15
SPACER
1D7-23118-00-00
Unavailable
16
BOLT, CAP
1D7-23111-00-00
Unavailable
17
O-RING
1D7-23188-00-00
Unavailable
18
FRONT FORK ASSY (R.H)
5C7-23103-00-00
Unavailable
19
TUBE, OUTER (RIGHT)
5C7-23136-01-00
Unavailable
21
CYLINDER COMP., FRONT FORK
5C7-23170-00-00
Unavailable
22
SPINDLE, TAPER
1D7-23173-00-00
Unavailable
24
BOLT
3R4-23181-L0-00
Unavailable
32
SPACER
1D7-23118-00-00
Unavailable
33
BOLT, CAP
1D7-23111-00-00
Unavailable
34
O-RING
1D7-23188-00-00
Unavailable
35
BOLT,SOCKET
91314-08040-00
Unavailable
36
UNDER BRACKET COMP.
5C7-23340-00-00
Unavailable
37
BEARING
93332-00096-00
Unavailable
38
BOLT,SOCKET
91314-08025-00
Unavailable
39
COVER
5C7-2331G-00-00
Unavailable
40
BOLT
90111-08010-00
Unavailable
41
PLUG(42X)
90338-08163-00
Unavailable
42
METAL, SLIDE
5C7-23171-00-00
Unavailable
43
FORK SEAL KIT (TWO FORKS)
1D7-W003B-00-00
Unavailable
