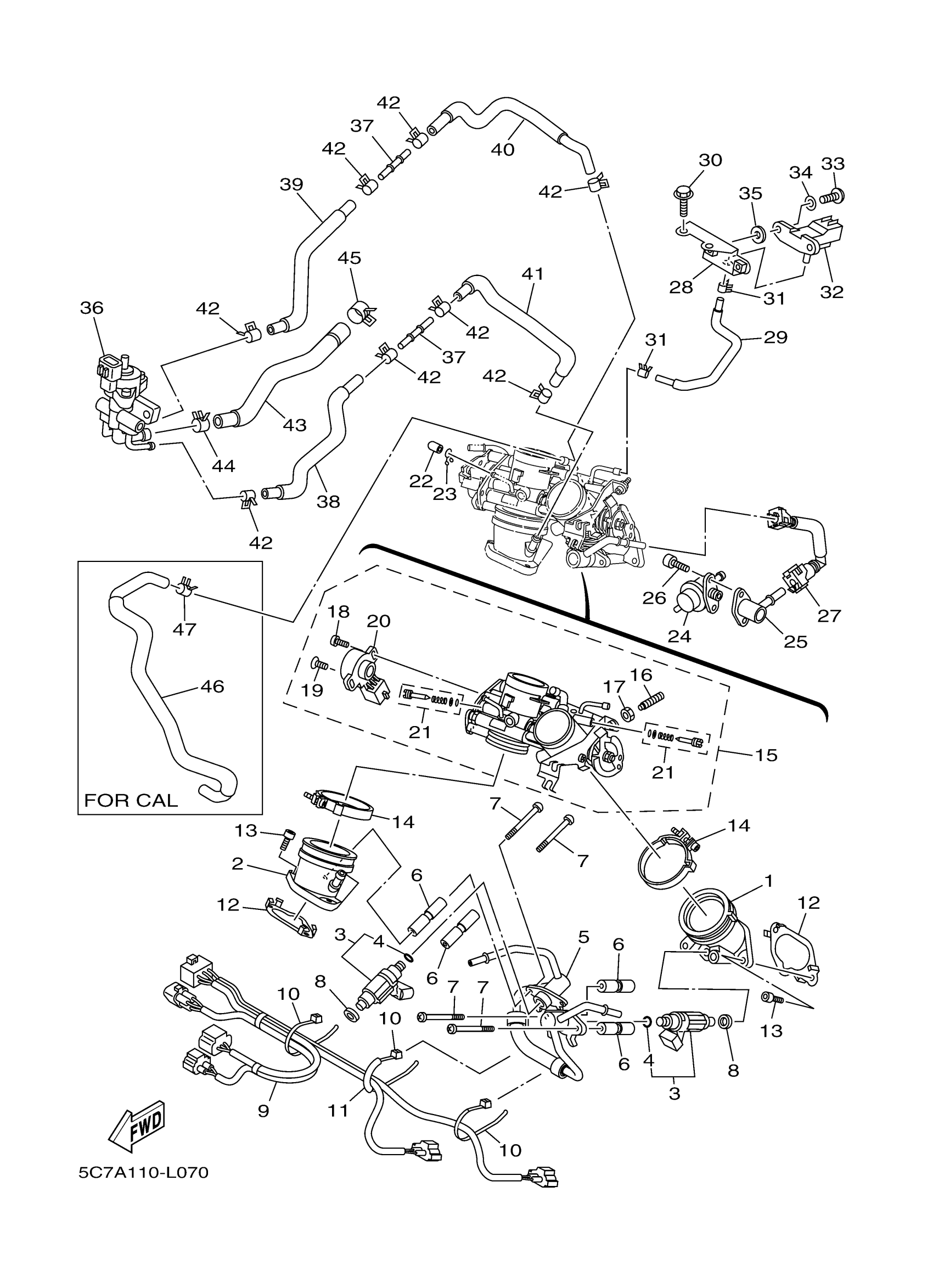

Yamaha XV19CSFR (RAIDER S) 29PS 2015 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
1D7-13586-00-00
Unavailable
2
JOINT, CARBURETOR 2
1D7-13596-00-00
Unavailable
3
INJECTOR ASSY
5YU-13761-00-00
Unavailable
5
PIPE INLET ASSEMBLY
1D7-13930-00-00
Unavailable
6
COLLAR
1D7-13716-00-00
Unavailable
9
WIRE, SUB LEAD
1D7-82509-40-00
Unavailable
10
CLAMP
90464-55002-00
Unavailable
11
HOSE
90445-08039-00
Unavailable
14
HOSE CLAMP ASSY
90450-62004-00
Unavailable
15
THROTTLE BODY ASSY
5C7-13750-10-00
Unavailable
16
SCREW
3FV-14567-00-00
Unavailable
17
NUT, CABLE ADJUSTING
3JD-14161-00-00
Unavailable
18
SCREW
4KM-24453-00-00
Unavailable
19
SCREW, FLAT
98707-04010-00
Unavailable
20
THROTTLE SENSOR AS
8GL-85885-01-00
Unavailable
21
AIR SCREW SET
5JW-14104-00-00
Unavailable
22
CAP
895-14169-00-00
Unavailable
23
CLIP, PIPE
8A7-14139-00-00
Unavailable
24
REGULATOR, PRESSURE
5C7-13906-00-00
Unavailable
25
JOINT
5PX-13595-00-00
Unavailable
26
BOLT
91312-05025-00
Unavailable
27
PIPE, FUEL 2
5C7-13972-00-00
Unavailable
28
STAY 1
1D7-14493-00-00
Unavailable
29
HOSE, AIR
1D7-13895-00-00
Unavailable
30
BOLT, FLANGE
95817-06012-00
Unavailable
31
CLIP(42X)
90467-07093-00
Unavailable
32
SENSOR, PRESSURE
1C7-82380-00-00
Unavailable
33
BOLT(6A1)
97095-05016-00
Unavailable
34
WASHER, PLAIN (646)
92990-05600-00
Unavailable
35
WASHER, PLATE (35R)
90201-060H9-00
Unavailable
36
LINEAR, CONTROL VALVE
5C7-85880-01-00
Unavailable
37
PIPE
5PX-14466-00-00
Unavailable
38
HOSE 1
5C7-13545-00-00
Unavailable
39
HOSE 2
5C7-13546-00-00
Unavailable
40
HOSE 3
5C7-13547-00-00
Unavailable
41
HOSE, AIR 4
5C7-13548-00-00
Unavailable
42
CLIP(3BM)
90467-10135-00
Unavailable
43
PIPE, AIR
5C7-13897-00-00
Unavailable
44
CLIP
90467-15001-00
Unavailable
45
CLIP(3TB)
90467-17128-00
Unavailable
46
PIPE
5C7-14349-00-00
Unavailable
47
CLIP
90467-09120-00
Unavailable
