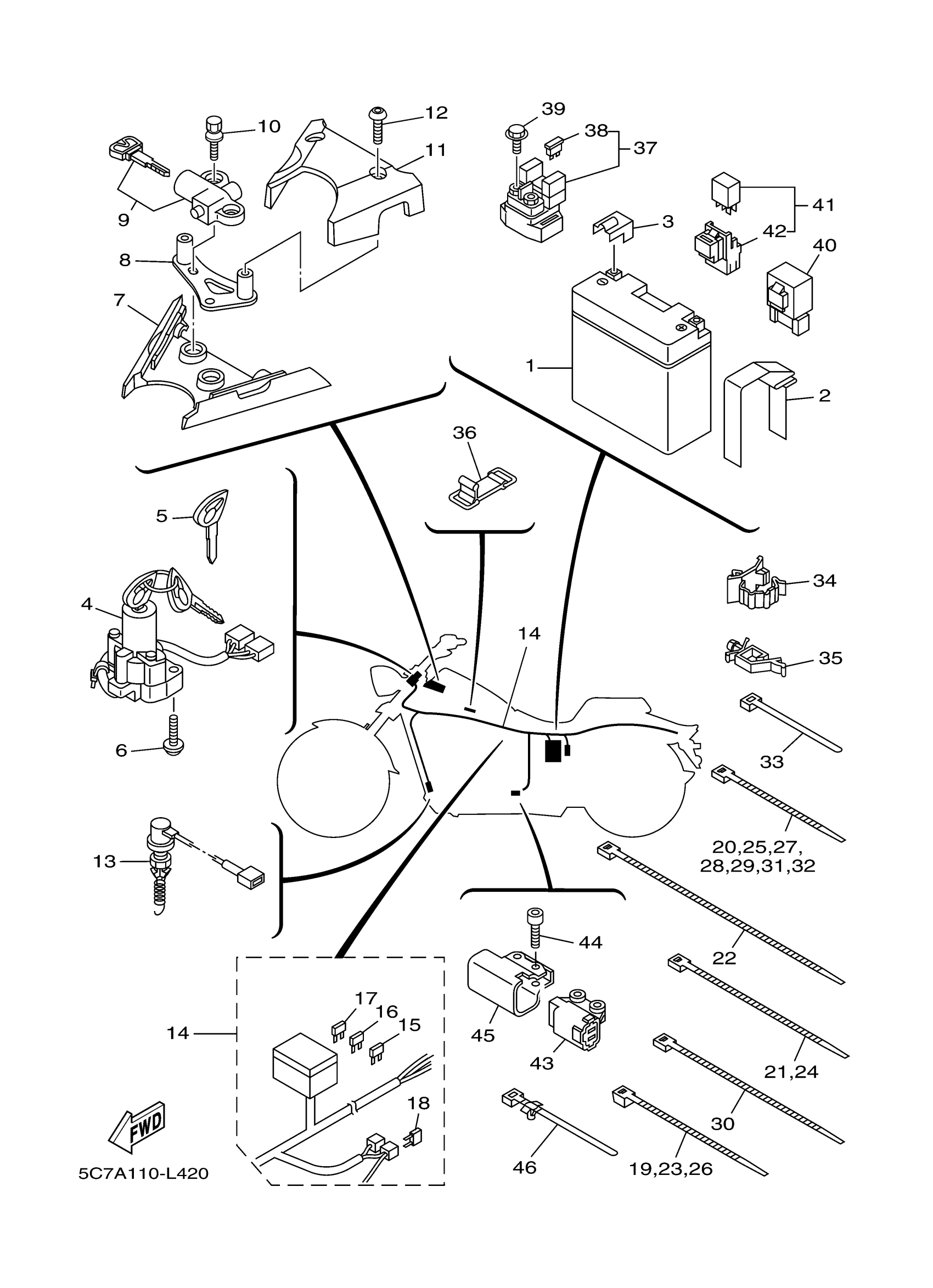

Yamaha XV19CSEL (RAIDER S) 29PN 2014 ELECTRICAL 2 Diagram

#

Description
Price

1

GT14B4 GS BATTERY - FA

GT1-4B400-00-00

Unavailable

2

BAND, BATTERY

4AS-82131-01-00

$15.49

3

COVER, LEAD WIRE

1D7-82119-00-00

Unavailable

4

MAIN SWITCH ASSY

5C7-82510-10-00

Unavailable

5

BLANK KEY

5PX-82511-09-00

$73.99

6

BOLT

90111-06030-00

$4.41

7

COVER

5C7-8252U-00-00

Unavailable

8

BRACKET

5C7-21158-00-00

Unavailable

9

STEERING LOCK ASSY

5C7-W2348-00-00

$137.99

10

BOLT

90109-08196-00

$8.49

11

COVER, LOCK

5C7-2848Y-00-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06146-00

$2.17

13

STOP SWITCH ASSY

5C7-82530-02-00

$67.99

14

WIRE HARNESS ASSY

30B-82590-01-00

$521.99

15

. FUSE (3A)

67F-82151-30-00

Unavailable

16

FUSE (15A)

67F-82151-50-00

Unavailable

17

FUSE

5JJ-82151-20-00

Unavailable

18

FUSE (50A)

5JW-82151-10-00

Unavailable

19

CLAMP

90464-55001-00

Unavailable

20

BAND

1UA-82591-00-00

Unavailable

21

BAND

3MA-82591-00-00

Unavailable

22

CLAMP

90464-50003-00

Unavailable

23

CLAMP

90464-55001-00

Unavailable

24

BAND

3MA-82591-00-00

Unavailable

25

BAND

1UA-82591-00-00

Unavailable

26

CLAMP

90464-55001-00

Unavailable

27

BAND

1UA-82591-00-00

Unavailable

28

BAND

1UA-82591-00-00

Unavailable

29

BAND

1UA-82591-00-00

Unavailable

30

CLAMP

90464-80002-00

Unavailable

31

BAND

1UA-82591-00-00

Unavailable

32

BAND

1UA-82591-00-00

Unavailable

33

CLAMP

90464-16061-00

Unavailable

34

CLAMP

90464-20002-00

Unavailable

35

CLAMP (1J7)

90464-16021-00

Unavailable

36

BAND, BATTERY

1KH-82131-00-00

Unavailable

37

STARTER RELAY ASSY (RC19-032)

5JW-81940-02-00

Unavailable

38

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

39

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

40

RELAY ASSY

5VK-81950-33-00

Unavailable

41

RELAY ASSY

1TP-81950-00-00

Unavailable

42

HOLDER,RELAY

5EA-81952-00-00

Unavailable

43

SENSOR, LEAN ANGLE

5VU-82576-03-00

Unavailable

44

BOLT

91312-04025-00

Unavailable

45

PLATE

5C7-82388-00-00

Unavailable

46

CLAMP

90464-34002-00

Unavailable
