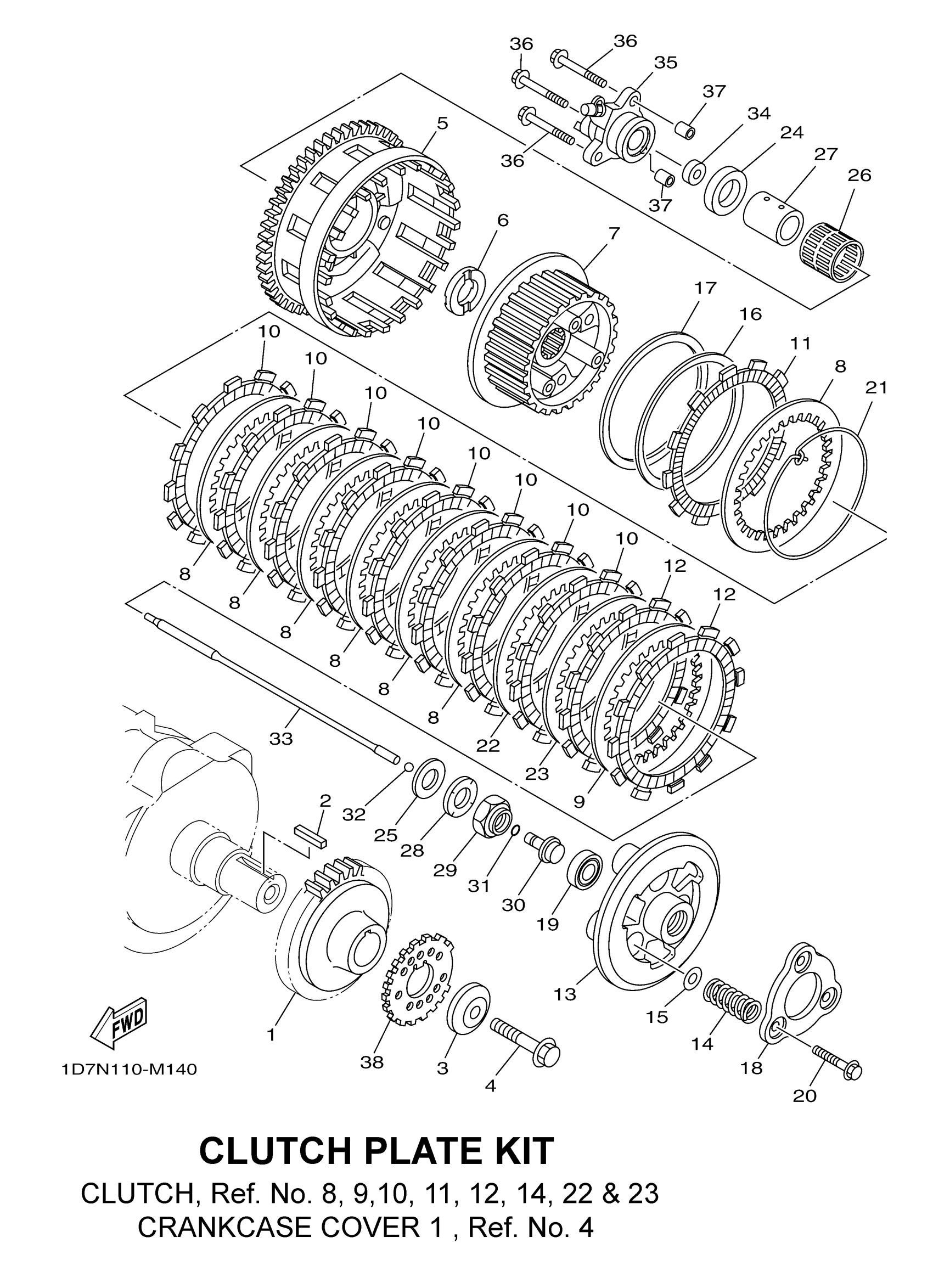

Yamaha XV19CSEL (RAIDER S) 29PN 2014 CLUTCH Diagram
#
1
GEAR, PRIMARY DRIVE
1D7-16111-00-00
Unavailable
2
KEY, FEATHER
4WM-16193-00-00
Unavailable
3
SPACER 1
4WM-16181-00-00
Unavailable
4
BOLT, FLANGE
90105-12059-00
Unavailable
7
BOSS, CLUTCH
1D7-16371-10-00
Unavailable
14
SPRING, COMPRESSION
1D7-16173-00-00
Unavailable
16
SPRING, CLUTCH BOSS
36Y-16383-00-00
Unavailable
17
PLATE, SEAT
36Y-16384-00-00
Unavailable
18
PLATE, PRESSURE 2
1D7-16352-00-00
Unavailable
19
BEARING(2JN)
93306-00315-00
Unavailable
20
SCREW, SPRING
1D7-16337-00-00
Unavailable
21
RING, CLUTCH BOSS SPRING SET
2H7-16385-00-00
Unavailable
22
PLATE, CLUTCH 1
2H7-16324-10-00
Unavailable
22
PLATE, CLUTCH 1
47X-16324-10-00
Unavailable
23
PLATE, CLUTCH 1
2H7-16324-10-00
Unavailable
23
PLATE, CLUTCH 1
47X-16324-10-00
Unavailable
24
PLATE, THRUST 2
1D7-16164-00-00
Unavailable
25
WASHER, PLATE
90201-22013-00
Unavailable
26
BEARING
93310-33559-00
Unavailable
27
COLLAR
90387-28006-00
Unavailable
28
WASHER, CONICAL SPRING
90208-22003-00
Unavailable
29
NUT
90179-22010-00
Unavailable
30
ROD, PUSH 1
4KG-16356-00-00
Unavailable
31
O-RING (26H)
93210-06632-00
Unavailable
32
BALL (498)
93511-32027-00
Unavailable
33
ROD, PUSH 2
1D7-16357-00-00
Unavailable
34
OIL SEAL(12E)
93109-08061-00
Unavailable
35
PUSH LEVER COMP.
1D7-16381-00-00
Unavailable
36
BOLT, FLANGE
95814-06055-00
Unavailable
37
PIN, DOWEL
99530-08012-00
Unavailable
38
ROTOR
1D7-81673-01-00
Unavailable
39
CLUTCH KIT
1D7-W001G-00-00
Unavailable
