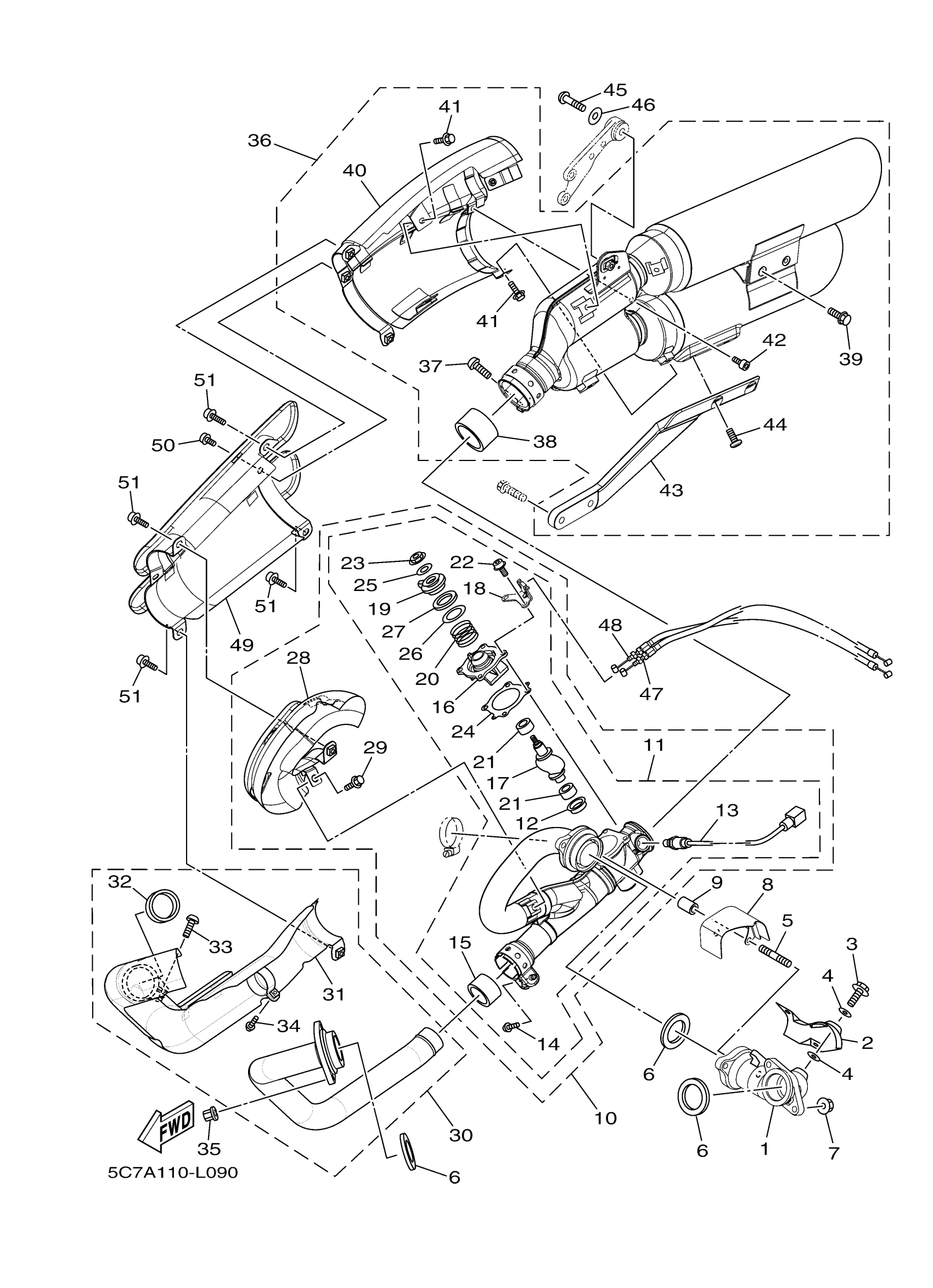

Yamaha XV19CSDW (RAIDER S) 29PK0 2013 EXHAUST Diagram

#

Description
Price

1

JOINT, EXHAUST 1

1D7-14615-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

1D7-14628-00-00

Unavailable

3

BOLT, FLANGE

95880-06012-00

$4.14

4

WASHER, PLATE

90201-05015-00

$8.49

5

BOLT, STUD 3

95617-08630-00

$4.99

6

GASKET, EXHAUST PIPE

3EG-14613-00-00

$23.99

7

NUT, SELF-LOCKING(3BN)

90185-08146-00

$9.49

8

COVER, EXHAUST

1D7-14624-00-00

$95.99

9

NUT

90179-08022-00

$12.49

10

EXHAUST PIPE ASSY 1

5C7-14610-01-00

$671.99

11

PIPE, EXHAUST 1

5C7-14611-01-00

Unavailable

12

PLUG, BLIND

5VY-14816-00-00

Unavailable

13

SENSOR, OXYGEN

5C7-8592A-00-00

Unavailable

14

BOLT, BUTTON HEAD(3YF)

92014-08035-00

$8.49

15

GASKET, SILENCER

5PX-14755-00-00

$29.99

16

HOUSING

1D7-14811-01-00

Unavailable

17

ARM, SHAFT (VALVE)

1D7-14821-00-00

Unavailable

18

BRACKET

1D7-14849-00-00

Unavailable

19

PULLEY

1D7-14865-01-00

Unavailable

20

SPRING

1D7-14856-00-00

Unavailable

21

COLLAR

5VY-14638-00-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

90110-06025-00

Unavailable

23

NUT

90179-06063-00

Unavailable

24

GASKET 3

1D7-14643-00-00

Unavailable

25

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

26

VALVE, PLATE

5VY-14674-00-00

Unavailable

27

COLLAR 2

5VY-14648-00-00

Unavailable

28

PROTECTOR, MUFFLER 1

5C7-14718-00-00

Unavailable

29

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

30

EXHAUST PIPE ASSY 2

5C7-14620-00-00

Unavailable

31

PROTECTOR, MUFFLER 2

5C7-14728-00-00

Unavailable

32

GASKET, MUFFLER

5C7-14714-00-00

Unavailable

33

BOLT, FLANGE(2UJ)

95024-08020-00

Unavailable

34

BOLT, BUTTON

92014-06016-00

Unavailable

35

NUT (22U)

90179-08410-00

Unavailable

36

MUFFLER ASSY 1

5C7-14710-30-00

Unavailable

37

BOLT, BUTTON HEAD(3YF)

92014-08035-00

$8.49

38

GASKET, MUFFLER

5YU-14714-00-00

Unavailable

39

BOLT, FLANGE(2UJ)

95024-08020-00

Unavailable

40

PROTECTOR, MUFFLER 3

5C7-14738-00-00

Unavailable

41

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

42

BOLT,SOCKET HEAD

91314-06010-00

Unavailable

43

STAY, MUFFLER 2

5C7-14772-00-00

Unavailable

44

BOLT

90111-08029-00

Unavailable

45

BOLT (3XF1)

90110-08221-00

Unavailable

46

WASHER, PLATE(3DM)

90201-087G2-00

Unavailable

47

CABLE, PULLEY 1

5C7-1133E-00-00

Unavailable

48

CABLE, PULLEY 2

5C7-1133F-00-00

Unavailable

49

COVER, EXHAUST

5C7-14627-00-00

Unavailable

50

BOLT, HEXAGON SOCKET HEAD

90110-06288-00

Unavailable

51

BOLT, HEXAGON SOCKET HEAD

90110-06301-00

Unavailable
