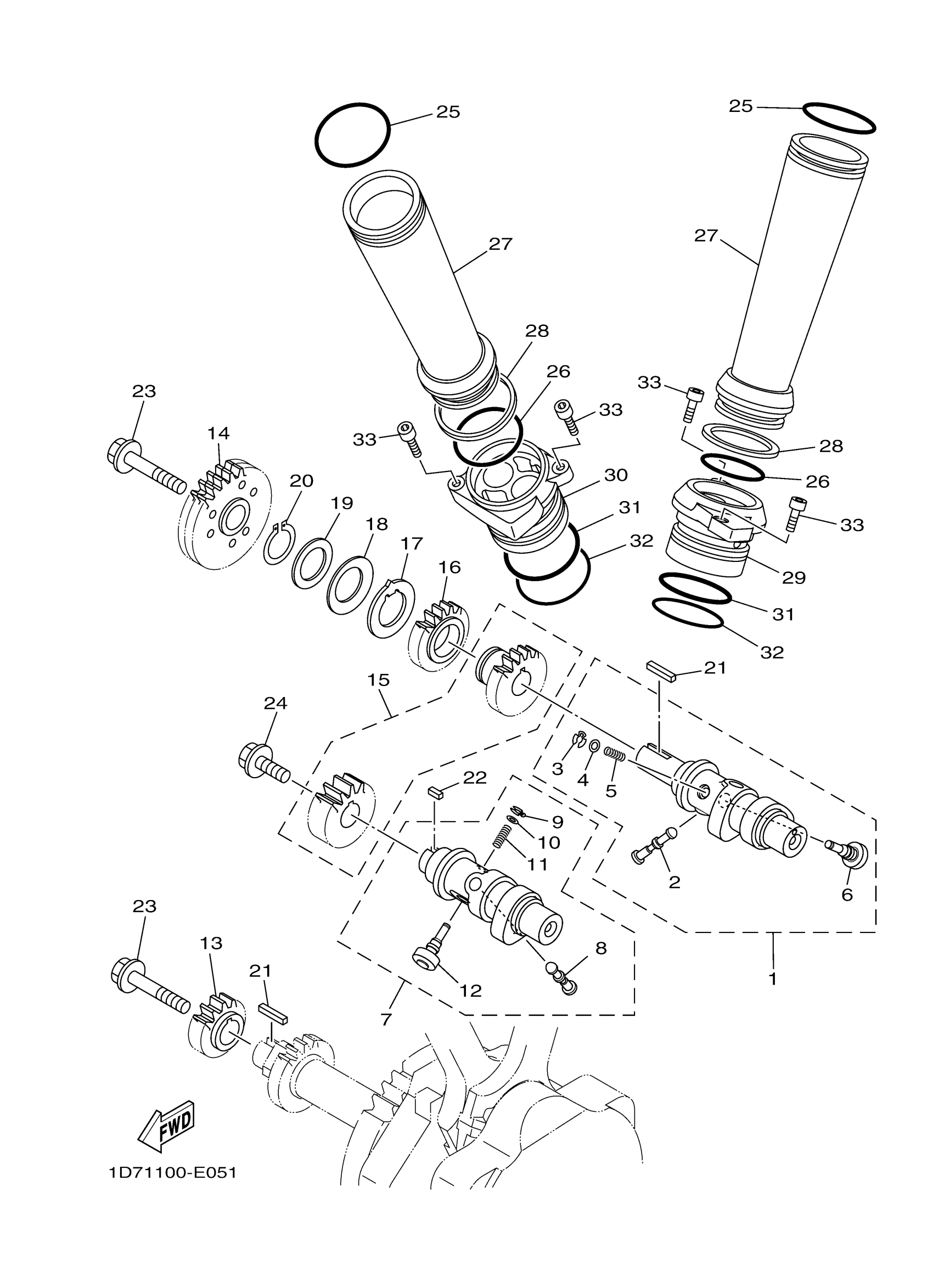

Yamaha XV19CSDW (RAIDER S) 29PK0 2013 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1D7-12170-03-00

Unavailable

2

PIN, DECOMPR .

1D7-12276-03-00

Unavailable

3

CIRCLIP

93430-04055-00

Unavailable

4

. WASHER, PLATE

90201-05M04-00

Unavailable

5

SPRING, DECOMPRESSION

1D7-12287-00-00

$1.04

6

DECOMPRESSION ASSY

1D7-12280-00-00

Unavailable

7

CAMSHAFT ASSY 2

1D7-12180-03-00

Unavailable

8

PIN, DECOMPR .

1D7-12276-03-00

Unavailable

9

CIRCLIP

93430-04055-00

Unavailable

10

. WASHER, PLATE

90201-05M04-00

Unavailable

11

SPRING, DECOMPRESSION

1D7-12287-00-00

$1.04

12

DECOMPRESSION ASSY

1D7-12280-00-00

Unavailable

13

GEAR, BREAKER DRIVE

1D7-11534-00-00

Unavailable

14

DRIVEN GEAR COMP.

1D7-Y115B-00-00

Unavailable

15

DRIVE GEAR SET

1D7-W115A-00-00

Unavailable

16

GEAR 2

4WM-11544-01-00

Unavailable

17

WASHER 1

1D7-11557-00-00

Unavailable

18

SPRING

4WM-12216-01-00

Unavailable

19

WASHER, PLATE

90201-283U6-00

Unavailable

20

CIRCLIP

99009-28400-00

Unavailable

21

KEY, STRAIGHT

90282-03002-00

Unavailable

22

KEY, STRAIGHT

90282-04001-00

Unavailable

23

BOLT, FLANGE

90105-10159-00

Unavailable

24

BOLT, WASHER BASED(1TX)

90105-10445-00

Unavailable

25

O-RING

93210-53638-00

Unavailable

26

O-RING(4MX)

93210-472A9-00

Unavailable

27

GUIDE, PUSH ROD

1D7-12155-10-00

Unavailable

28

CAP, TENSIONER CASE

5PX-12215-00-00

Unavailable

29

HOUSING

1D7-12147-00-00

Unavailable

30

HOUSING

1D7-12148-00-00

Unavailable

31

O-RING (341)

93210-54175-00

Unavailable

32

O-RING (4X7)

93210-54452-00

Unavailable

33

BOLT,SOCKET HEAD

91314-06025-00

Unavailable
