2012 Yamaha Raider S (XV19CSBP) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2012 Yamaha Raider S (XV19CSBP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

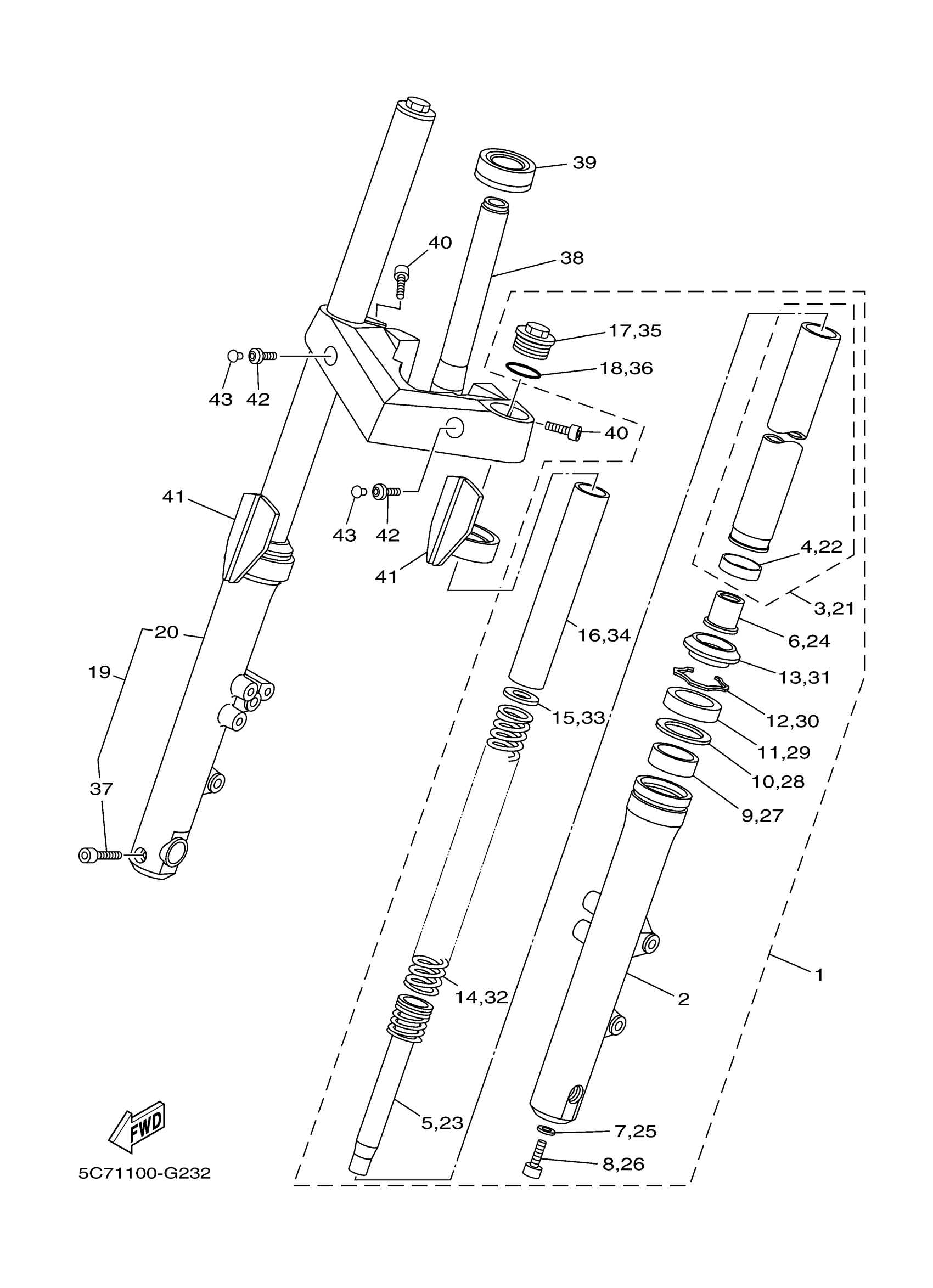

2012 Yamaha Raider S (XV19CSBP) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

5C7-23102-00-00

—
Out of stock

2

TUBE, OUTER (LEFT)

5C7-23126-01-00

—
Out of stock

3

INNER TUBE COMP.1

5C7-23110-00-00

1
Out of stock

4

METAL, SLIDE

5C7-23171-00-00

1
Out of stock

5

CYLINDER COMP., FRONT FORK

5C7-23170-00-00

—
Out of stock

6

SPINDLE, TAPER

1D7-23173-00-00

—
Out of stock

7

GASKET

2K8-23158-L0-00

1
Out of stock

8

BOLT

3R4-23181-L0-00

—
Out of stock

9

METAL, SLIDE 1

5TJ-23125-50-00

1

$30.34

In stock

10

WASHER, OIL SEAL

4SS-23146-L0-00

1

$6.72

In stock

11

OIL SEAL

1D7-23145-00-00

1

$20.80

In stock

12

RING, SNAP

4SS-23153-L0-00

1

$6.11

In stock

13

SEAL, DUST

1D7-23144-00-00

1

$28.54

In stock

14

SPRING, FRONT FORK

5C7-23141-00-00

1
Out of stock

15

WASHER, SPRING UPPER

1D7-23149-00-00

1
Out of stock

16

SPACER

1D7-23118-00-00

—
Out of stock

17

BOLT, CAP

1D7-23111-00-00

—
Out of stock

18

O-RING

1D7-23188-00-00

—

$13.80

In stock

19

FRONT FORK ASSY (R.H)

5C7-23103-00-00

—
Out of stock

20

TUBE, OUTER (RIGHT)

5C7-23136-01-00

—
Out of stock

21

INNER TUBE COMP.1

5C7-23110-00-00

1
Out of stock

22

METAL, SLIDE

5C7-23171-00-00

1
Out of stock

23

CYLINDER COMP., FRONT FORK

5C7-23170-00-00

—
Out of stock

24

SPINDLE, TAPER

1D7-23173-00-00

—
Out of stock

25

GASKET

2K8-23158-L0-00

1
Out of stock

26

BOLT

3R4-23181-L0-00

—
Out of stock

27

METAL, SLIDE 1

5TJ-23125-50-00

1

$30.34

In stock

28

WASHER, OIL SEAL

4SS-23146-L0-00

1

$6.72

In stock

29

OIL SEAL

1D7-23145-00-00

1

$20.80

In stock

30

RING, SNAP

4SS-23153-L0-00

1

$6.11

In stock

31

SEAL, DUST

1D7-23144-00-00

1

$28.54

In stock

32

SPRING, FRONT FORK

5C7-23141-00-00

1
Out of stock

33

WASHER, SPRING UPPER

1D7-23149-00-00

1
Out of stock

34

SPACER

1D7-23118-00-00

—
Out of stock

35

BOLT, CAP

1D7-23111-00-00

—
Out of stock

36

O-RING

1D7-23188-00-00

—

$13.80

In stock

37

BOLT,SOCKET

91314-08040-00

—
Out of stock

38

UNDER BRACKET COMP.

5C7-23340-00-00

—
Out of stock

39

BEARING

93332-00096-00

—
Out of stock

40

BOLT,SOCKET

91314-08025-00

—

$6.17

In stock

41

COVER

5C7-2331G-00-00

—
Out of stock

42

BOLT

90111-08010-00

—

$5.14

In stock

43

PLUG(42X)

90338-08163-00

—
Out of stock

44

FORK SEAL KIT (TWO FORKS)

1D7-W003B-00-00

—

$48.30

In stock
