Description

Price

1

CAST WHEEL, REAR

5C7-25338-01-35

$1,057.99

2

BEARING(3BC)

93306-30437-00

$55.54

3

BEARING

93320-32811-00

$39.00

4

SPACER, BEARING

1D7-25317-00-00

$22.09

5

DAMPER

1D7-25364-00-00

$29.16

6

OIL SEAL

93106-28001-00

$10.37

7

CIRCLIP(26H)

99009-52500-00

$10.68

8

TIRE (210/40 R 18 M/C 73H)

94121-18012-00

Unavailable

9

VALVE, RIM(2GH)

93900-00030-00

$14.46

10

BALANCER, WHEEL

5MT-25398-00-00

$15.54

10

BALANCER, WHEEL

5MT-25398-10-00

$15.37

10

BALANCER, WHEEL

5MT-25398-20-00

$38.22

11

CLUTCH, HUB

4WM-25366-00-00

$427.18

12

BEARING

93311-32698-00

$64.14

13

BEARING(3BC)

93306-30437-00

$55.54

14

CIRCLIP(26H)

99009-52500-00

$10.68

15

CIRCLIP

93450-35163-00

$2.57

16

COLLAR, WHEEL

4WM-25376-10-00

$38.07

17

COLLAR, WHEEL

1D7-25383-00-00

$51.37

18

BOLT, STUD

95617-12630-00

$9.12

19

SPROCKET, DRIVEN (66T)

5C7-25466-01-00

$915.99

20

NUT, U

95614-12100-00

$3.97

21

WASHER, PLATE (4N0)

90201-126A7-00

$6.28

22

OIL SEAL (30X42X8-102)

93106-30004-00

$10.98

23

PULLER, CHAIN 1

1D7-25388-00-00

$81.32

24

PULLER, CHAIN 2

1D7-25389-00-00

$94.31

25

BOLT

90101-08012-00

$5.34

26

NUT

95302-08600-00

$6.57

27

COLLAR(3BC)

90387-202X9-00

$28.48

28

COLLAR

90387-20033-00

$30.25

29

AXLE, WHEEL

1D7-25381-00-00

$104.62

30

NUT, SELF-LOCKING

90185-18009-00

$15.86

31

WASHER, PLATE (1J7)

90201-18620-00

$3.89

32

V BELT

5C7-46241-01-00

Unavailable

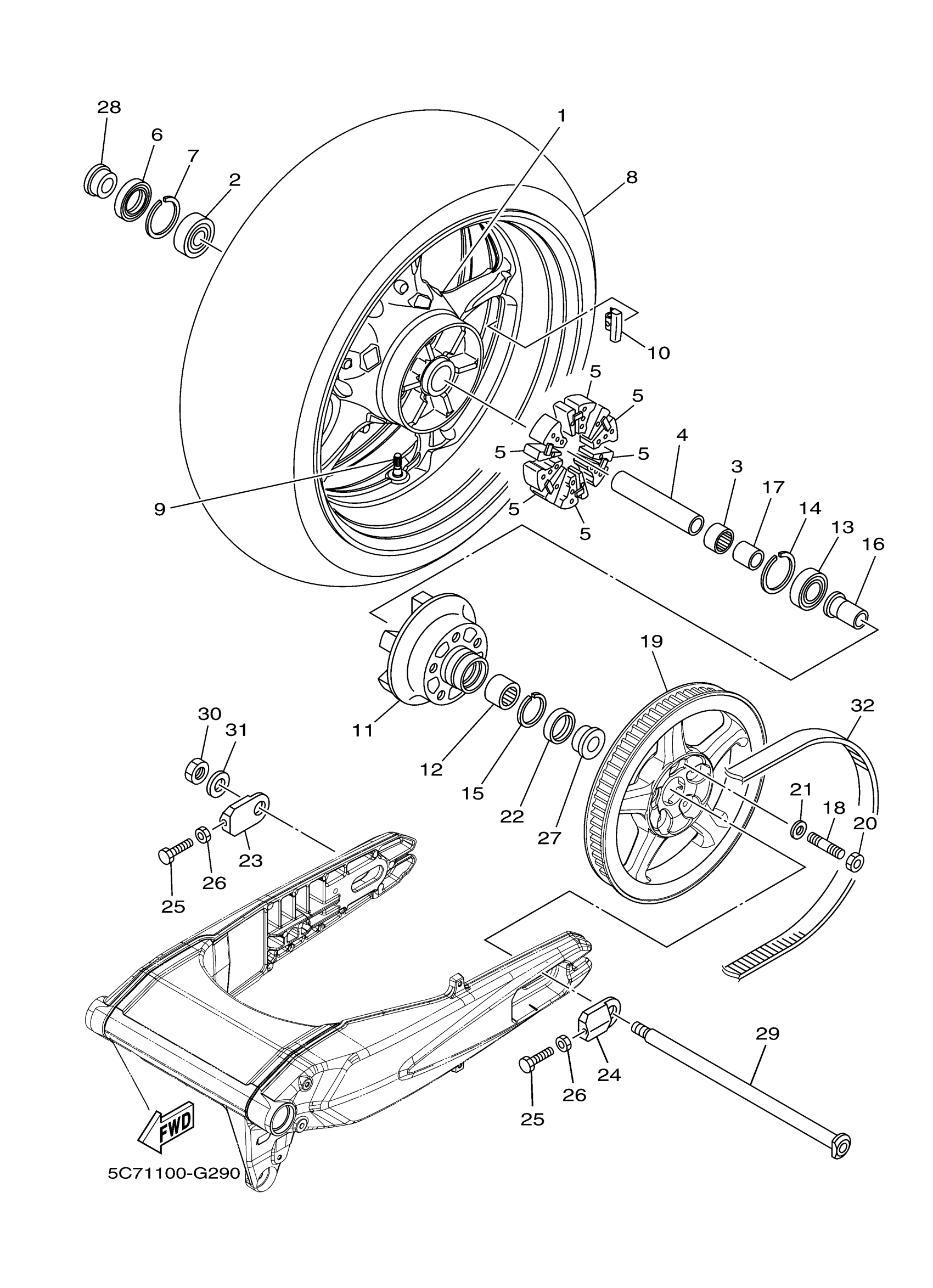

Yamaha XV19CSBP (RAIDER S) 29PG 2012 REAR WHEEL Diagram

TIRE (210/40 R 18 M/C 73H)

V BELT
