2012 Yamaha Raider S CA (XV19CSBCB) Generator Diagram

← All diagrams

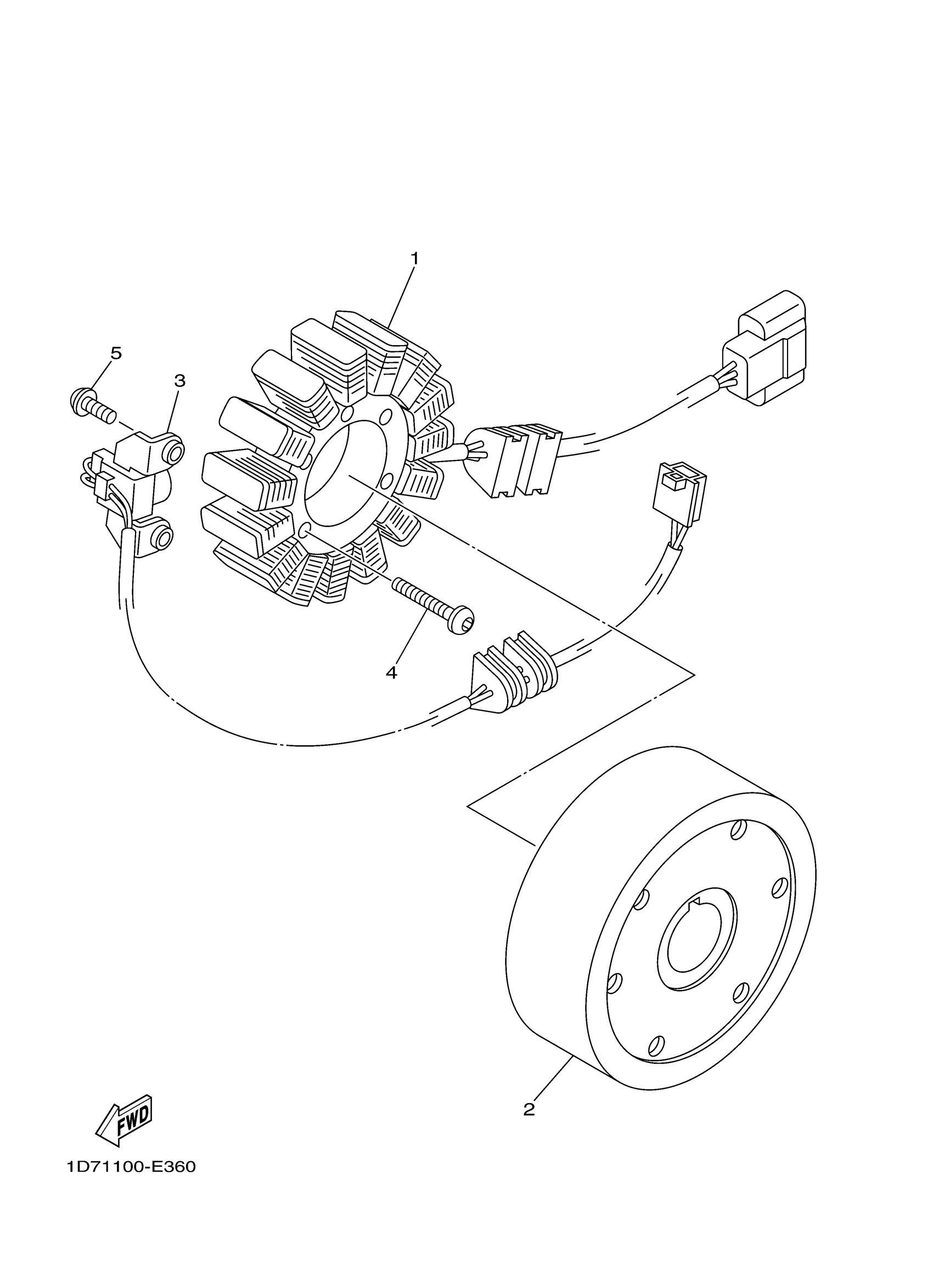

Find the part on the Generator diagram for your 2012 Yamaha Raider S CA (XV19CSBCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Raider S CA (XV19CSBCB) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

1D7-81410-01-00

—
Out of stock

2

ROTOR ASSY

1D7-81450-00-00

—
Out of stock

3

PICK-UP ASSY

5C7-81670-02-00

1
Out of stock

4

SCREW

90149-06122-00

1

$5.24

In stock

5

SCREW

90149-06068-00

1

$3.26

In stock
