2012 Yamaha Raider S CA (XV19CSBCB) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 2012 Yamaha Raider S CA (XV19CSBCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

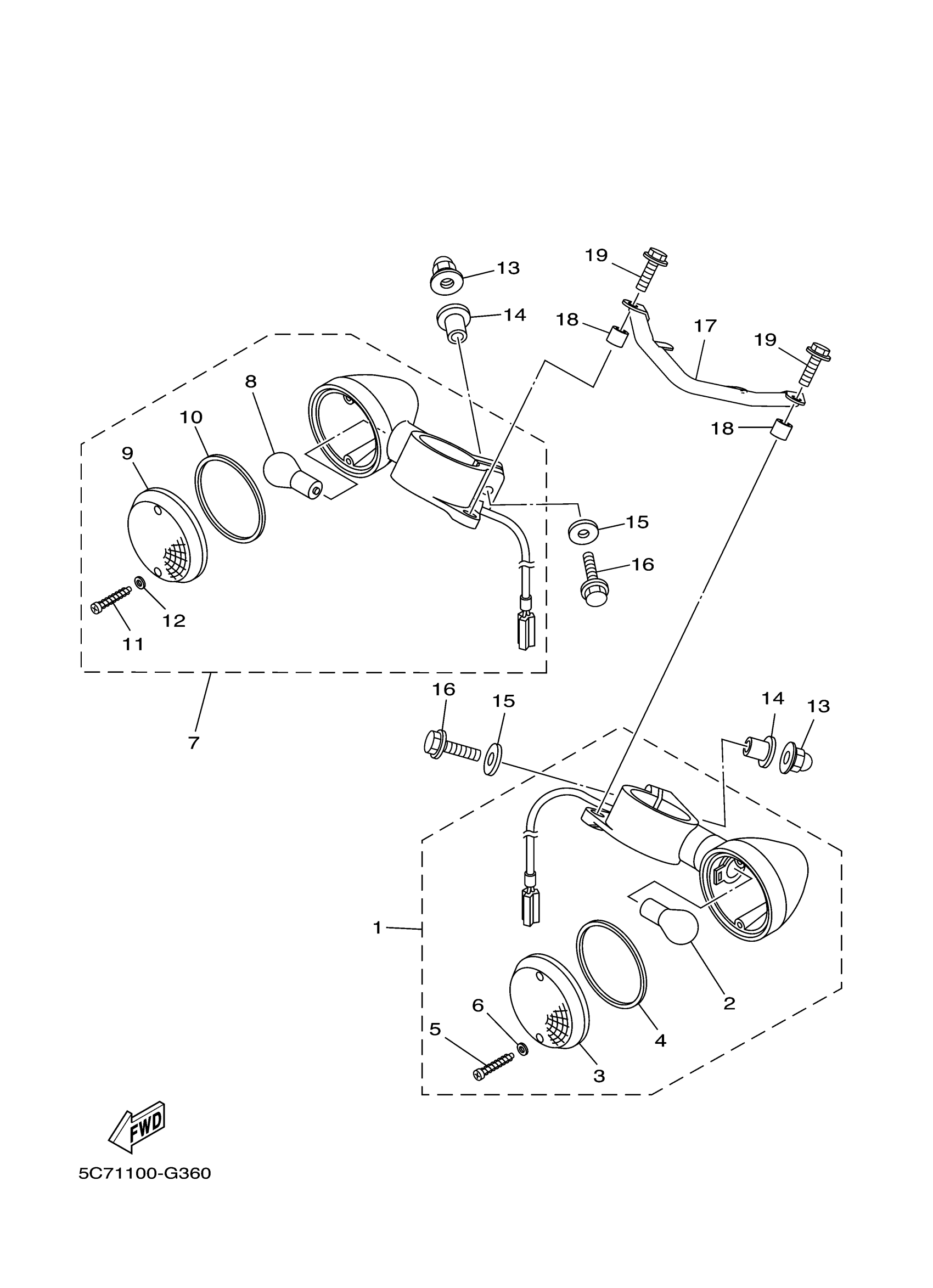

2012 Yamaha Raider S CA (XV19CSBCB) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSY 1

5C7-83310-00-00

1
Out of stock

2

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

1
Out of stock

3

LENS, FLASHER

5PX-83312-10-00

1
Out of stock

4

GASKET, FLASHER LENS

5PX-83313-00-00

1
Out of stock

5

SCREW, TAPPING

97704-40625-00

1
Out of stock

6

WASHER

5PX-83348-00-00

1
Out of stock

7

FRONT FLASHER LIGHT ASSY 2

5C7-83320-00-00

—
Out of stock

8

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

1
Out of stock

9

LENS, FLASHER

5PX-83312-10-00

1
Out of stock

10

GASKET, FLASHER LENS

5PX-83313-00-00

1
Out of stock

11

SCREW, TAPPING

97704-40625-00

1
Out of stock

12

WASHER

5PX-83348-00-00

1
Out of stock

13

NUT, CROWN(1FN)

90176-06055-00

1
Out of stock

14

COLLAR

90387-06076-00

1
Out of stock

15

WASHER, PLATE

90201-06045-00

1
Out of stock

16

BOLT, FLANGE

95822-06025-00

—
Out of stock

17

GUIDE, LEAD WIRE 1

5C7-83335-00-00

—
Out of stock

18

COLLAR

90387-08085-00

—
Out of stock

19

BOLT, FLANGE(4MY)

95027-08025-00

—
Out of stock
