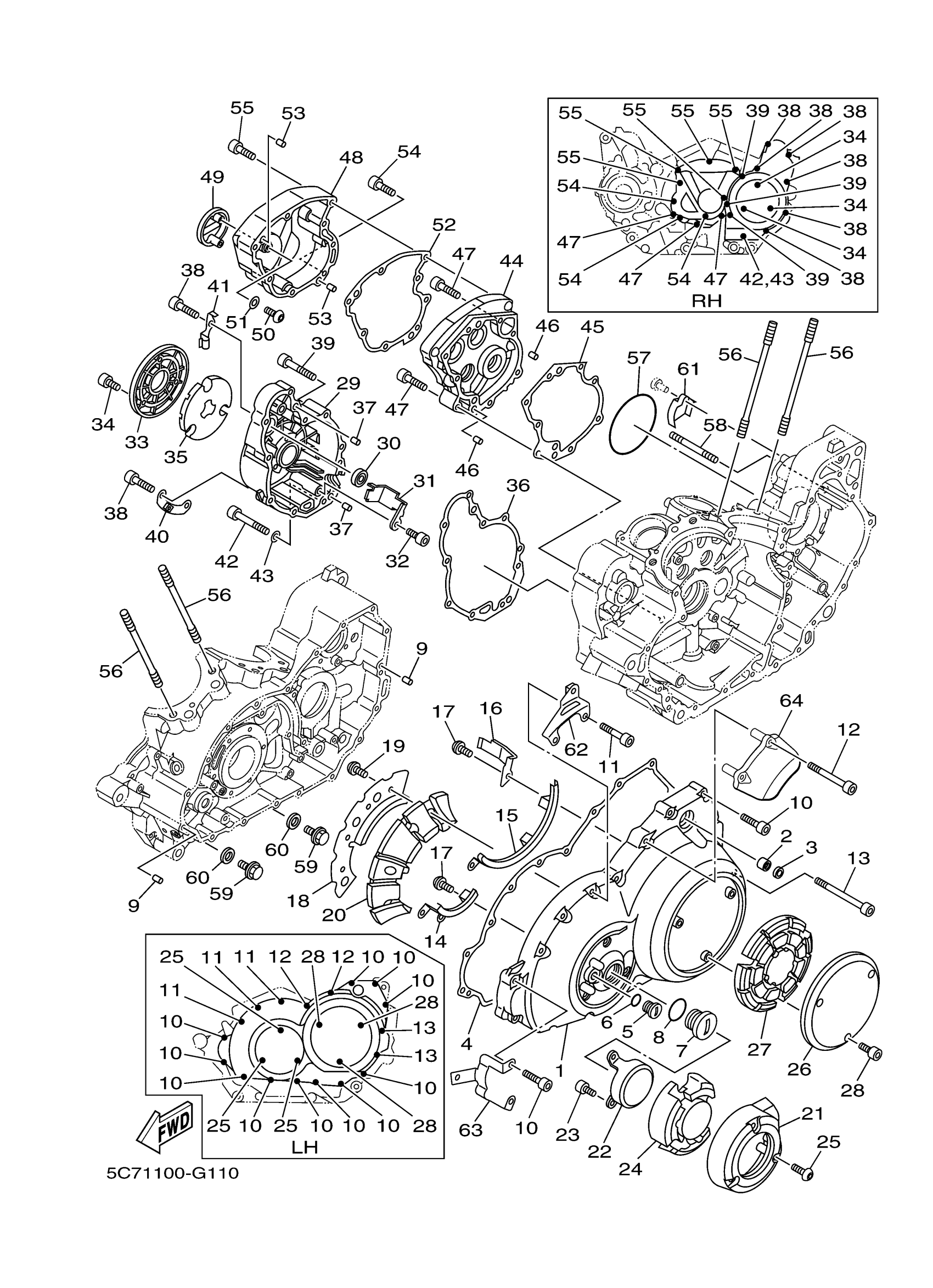

Yamaha XV19CSAL (RAIDER S) 29PA0 2011 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1D7-15411-00-00

Unavailable

2

BEARING

93317-11287-00

$23.99

3

OIL SEAL (4G0)

93102-12224-00

$10.49

4

GASKET, CRANKCASE COVER 1

1D7-15451-00-00

Unavailable

5

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

6

O-RING (2H9)

93210-14369-00

$7.49

7

PLUG, STRAIGHT SCREW(2GV)

90340-32116-00

$15.49

8

O-RING (341)

93210-32172-00

$7.49

9

PIN, DOWEL

99530-08012-00

Unavailable

10

BOLT, SOCKET

91314-06035-00

$8.49

11

BOLT, SOCKET

91314-06045-00

$8.49

12

BOLT, SOCKET

91314-06080-00

$3.88

13

BOLT,SOCKET

91314-06100-00

Unavailable

14

GUIDE 1

1D7-15142-00-00

Unavailable

15

GUIDE

1D7-15143-00-00

$9.99

16

CLAMP 2

5C7-15484-00-00

Unavailable

17

SCREW

90149-06068-00

Unavailable

18

SHIM, KICK SHAFT

1D7-15645-01-00

Unavailable

19

SCREW

90149-06068-00

Unavailable

20

DAMPER 2

1D7-1542B-01-00

Unavailable

21

COVER 2

1D7-15423-00-00

Unavailable

22

COVER, GENERATOR 2

5C7-15425-00-00

Unavailable

23

BOLT

91312-05010-00

Unavailable

24

DAMPER, ENGINE MOUNT 1

1D7-15316-00-00

Unavailable

25

BOLT, BUTTON HEAD

92014-06040-00

Unavailable

26

COVER, GENERATOR

1D7-15415-00-00

Unavailable

27

DAMPER 1

1D7-1542A-00-00

Unavailable

28

BOLT,SOCKET HEAD

91314-06012-00

Unavailable

29

COVER, CRANKCASE 2

1D7-15421-00-00

Unavailable

30

BRG,R-B 6000 26MM 19G KY

93306-00004-00

Unavailable

31

GUIDE, INLET

4WM-15377-00-00

Unavailable

32

SCREW

90149-06156-00

Unavailable

33

COVER

1D7-15492-00-00

Unavailable

34

BOLT, SOCKET

91314-05010-00

Unavailable

35

DAMPER, ENGINE MOUNT 2

1D7-15326-00-00

Unavailable

36

GASKET, CRANKCASE COVER 2

1D7-15461-00-00

Unavailable

37

PIN, DOWEL

99530-08012-00

Unavailable

38

BOLT, SOCKET

91314-06035-00

$8.49

39

BOLT,SOCKET

91314-06055-00

Unavailable

40

PLATE, MIRROR FITTING 1

1D7-26298-00-00

Unavailable

41

BRACKET

1D7-2612E-00-00

Unavailable

42

BOLT, SOCKET

91314-06065-00

Unavailable

43

GASKET 256113960000

90430-06014-00

Unavailable

44

CRANKCASE COVER ASSY 3

1D7-15430-01-00

Unavailable

45

GASKET, CRANKCASE COVER 3

1D7-15462-00-00

Unavailable

46

PIN, DOWEL

99530-08012-00

Unavailable

47

BOLT, HEXAGON SOCKET HEAD

90110-06299-00

Unavailable

48

COVER, SHIFTER

1D7-15429-00-00

Unavailable

49

COVER, CAP 2

1D7-15427-00-00

Unavailable

50

SCREW

90149-06068-00

Unavailable

51

GASKET 256113960000

90430-06014-00

Unavailable

52

GASKET, DECOMPRESSION

1D7-12286-00-00

Unavailable

53

PIN, DOWEL

99530-08012-00

Unavailable

54

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

55

BOLT, SOCKET

91314-06040-00

Unavailable

56

BOLT, STUD

90116-12240-00

Unavailable

57

O-RING (173)

93210-85075-00

Unavailable

58

BOLT, STUD

90116-10028-00

Unavailable

59

PLUG, STRAIGHT SCREW

90340-14005-00

Unavailable

60

GASKET

214-11198-01-00

Unavailable

61

COVER

1D7-15413-00-00

Unavailable

62

STAY

5C7-24364-00-00

Unavailable

63

PLATE

5C7-24396-00-00

Unavailable

64

PROTECTOR, COVER

5C7-15499-00-00

Unavailable
