2016 Yamaha Raider (XV19CGR) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2016 Yamaha Raider (XV19CGR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

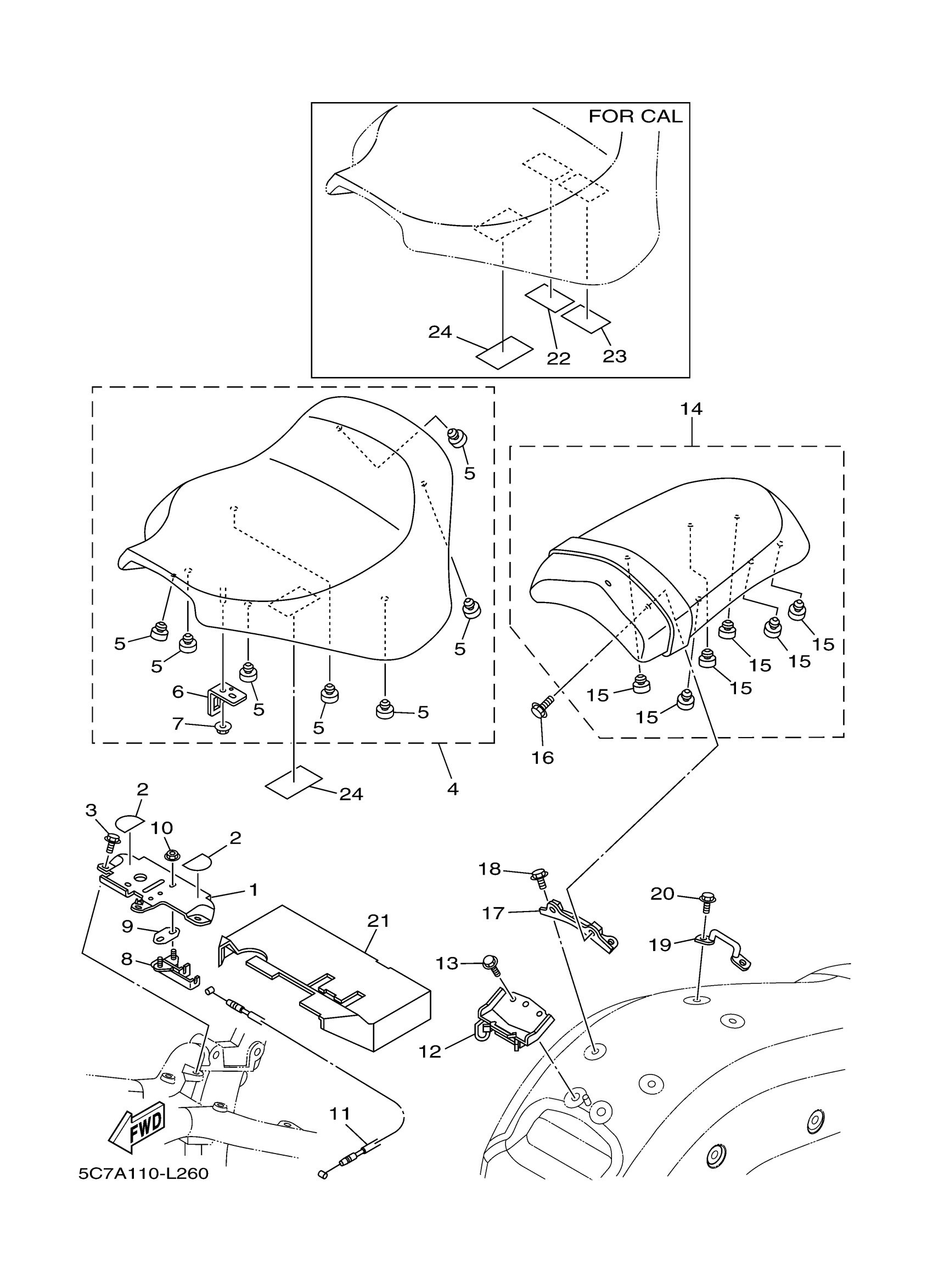

2016 Yamaha Raider (XV19CGR) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, SEAT 1

5C7-21341-00-00

—
Out of stock

2

SEAL 2

5PX-21735-00-00

1
Out of stock

3

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

4

SINGLE SEAT ASSY

5C7-24710-11-00

—
Out of stock

5

PAD, SEAT

22W-24741-00-00

1

$7.72

In stock

6

BRACKET, SEAT

4NK-24728-00-00

1
Out of stock

7

NUT, FLANGE

95702-06500-00

1

$1.98

In stock

8

SEAT LOCK ASSY

4BP-24780-00-00

1

$91.92

In stock

9

PLATE

4BP-24792-00-00

—
Out of stock

10

NUT, FLANGE

95702-06500-00

1

$1.98

In stock

11

CABLE, SEAT LOCK

5PX-2478E-00-00

1

$17.78

In stock

12

BRACKET

5C7-2475N-00-00

—
Out of stock

13

BOLT, FLANGE

95022-08012-00

1

$9.51

In stock

14

TANDEM SEAT ASSY

5C7-24750-12-00

—
Out of stock

15

PAD, SEAT

22W-24741-00-00

1

$7.72

In stock

16

BOLT, FLANGE

95022-08012-00

1

$9.51

In stock

17

BRACKET, SEAT LEVER 1

5C7-2475H-00-00

—
Out of stock

18

BOLT, FLANGE

95022-08012-00

1

$9.51

In stock

19

BRACKET 6

1D7-2475R-00-00

—
Out of stock

20

BOLT, FLANGE

95022-08012-00

1

$9.51

In stock

21

COVER

5C7-24796-00-00

—
Out of stock

22

PLATE, ROUTING

34B-21684-00-00

—

$6.46

In stock

23

PLATE, ROUTING 2

5RU-21686-00-00

—

$4.95

In stock

24

LABEL, TIRE

1D7-21668-00-00

—
Out of stock
