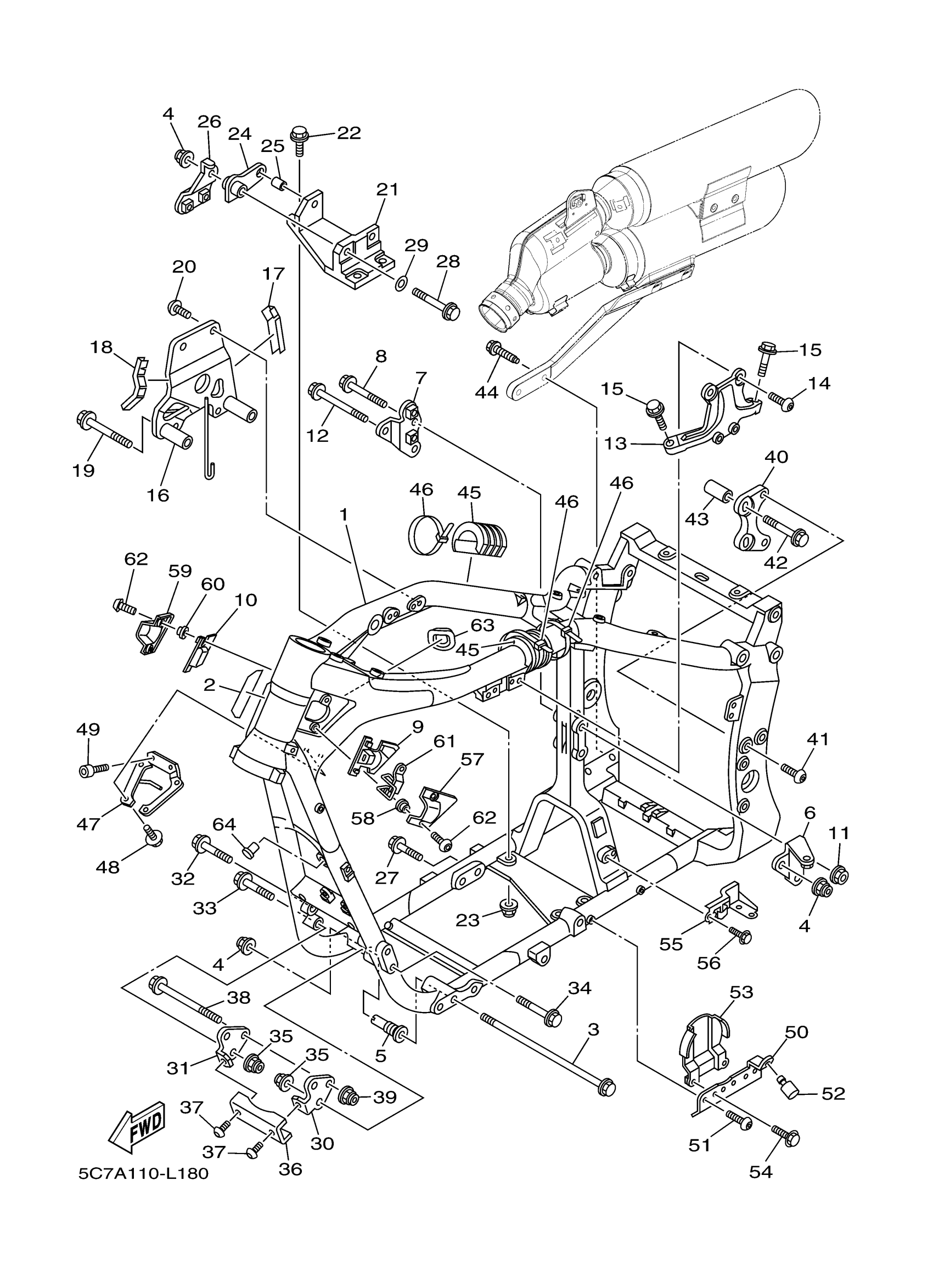

Yamaha XV19CGR (RAIDER) BL91 2016 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5C7-21110-01-00

Unavailable

2

PROTECTOR, FUEL TANK

1D7-24141-00-00

Unavailable

3

BOLT, WASHER BASED

90105-126A6-00

Unavailable

4

NUT, SELF-LOCKING

95602-12200-00

$4.46

5

BOLT, ENGINE ADJUSTING

5PX-21495-01-00

Unavailable

6

STAY, ENGINE 2

1D7-21315-00-00

Unavailable

7

STAY, ENGINE 3

5PX-21316-00-00

Unavailable

8

BOLT, WASHER BASED(4HM)

90105-10737-00

$26.99

9

DAMPER 2

5C7-2112C-00-00

$15.49

10

DAMPER 3

5C7-2112D-00-00

Unavailable

11

NUT, S/L FLANGE

95602-10200-00

$4.82

12

BOLT, WASHER BASED(36Y)

90105-12309-00

$11.49

13

STAY, ENGINE 3

5C7-21317-00-00

Unavailable

14

BOLT

90111-10003-00

$8.49

15

BOLT, FLANGE

90105-12018-00

Unavailable

16

STAY, ENGINE 6

5C7-21319-10-00

Unavailable

17

SEAL

1D7-21669-00-00

Unavailable

18

SEAL

5C7-21268-00-00

Unavailable

19

BOLT, FLANGE

90105-12067-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-10030-00

Unavailable

21

STAY, ENGINE 5

1D7-21318-01-00

Unavailable

22

BOLT, FLANGE

95817-10030-00

Unavailable

23

NUT, S/L FLANGE

95602-10200-00

$4.82

24

STAY 1

1D7-2142G-00-00

Unavailable

25

COLLAR

90387-12033-00

Unavailable

26

STAY, ENGINE 7

1D7-21387-00-00

Unavailable

27

BOLT, FLANGE (8V9)

95812-10045-00

Unavailable

28

BOLT

90101-12025-00

Unavailable

29

WASHER, PLATE

90201-12045-00

Unavailable

30

STAY 2

1D7-2142H-01-00

Unavailable

31

STAY 3

1D7-2142J-01-00

Unavailable

32

BOLT, FLANGE

90105-10049-00

Unavailable

33

BOLT, FLANGE

90105-10060-00

Unavailable

34

BOLT, FLANGE

90105-10167-00

Unavailable

35

NUT, SELF-LOCKING

90185-10008-00

Unavailable

36

BRACKET, MEMBER 1

1D7-2115L-00-00

Unavailable

37

BOLT, BUTTON

92014-08020-00

Unavailable

38

BOLT, FLANGE

90105-12016-00

Unavailable

39

NUT, SELF-LOCKING

90185-12002-00

Unavailable

40

STAY 1

1D7-2137F-00-00

Unavailable

41

BOLT

90111-10009-00

Unavailable

42

BOLT, FLANGE

90105-10447-00

Unavailable

43

COLLAR

1D7-21116-01-00

Unavailable

44

BOLT, FLANGE

90105-10166-00

Unavailable

45

DAMPER, LOCATING 3

5C7-24183-00-00

Unavailable

46

CLAMP

90464-80002-00

Unavailable

47

STAY 1

5C7-2116A-00-00

Unavailable

48

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

49

BOLT,SOCKET

91317-06020-00

Unavailable

50

BRACKET, HORN

5C7-21343-00-00

Unavailable

51

BOLT

90111-08002-00

Unavailable

52

STOPPER, MAIN STAND

1D7-27114-00-00

Unavailable

53

COVER, HORN

5C7-2317L-00-00

Unavailable

54

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

55

BRACKET, SWITCH

5C7-21453-00-00

Unavailable

56

BOLT, FLANGE

95022-06016-00

Unavailable

57

COVER, SIDE 5

5C7-2171E-00-00

Unavailable

58

COLLAR

90387-06210-00

Unavailable

59

COVER, SIDE 6

5C7-2171X-00-00

Unavailable

60

COLLAR

90387-06192-00

Unavailable

61

GUIDE

5C7-2171H-00-00

Unavailable

62

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

63

GROMMET

5C7-21773-00-00

Unavailable

64

PLUG(55K)

90338-16148-00

Unavailable
