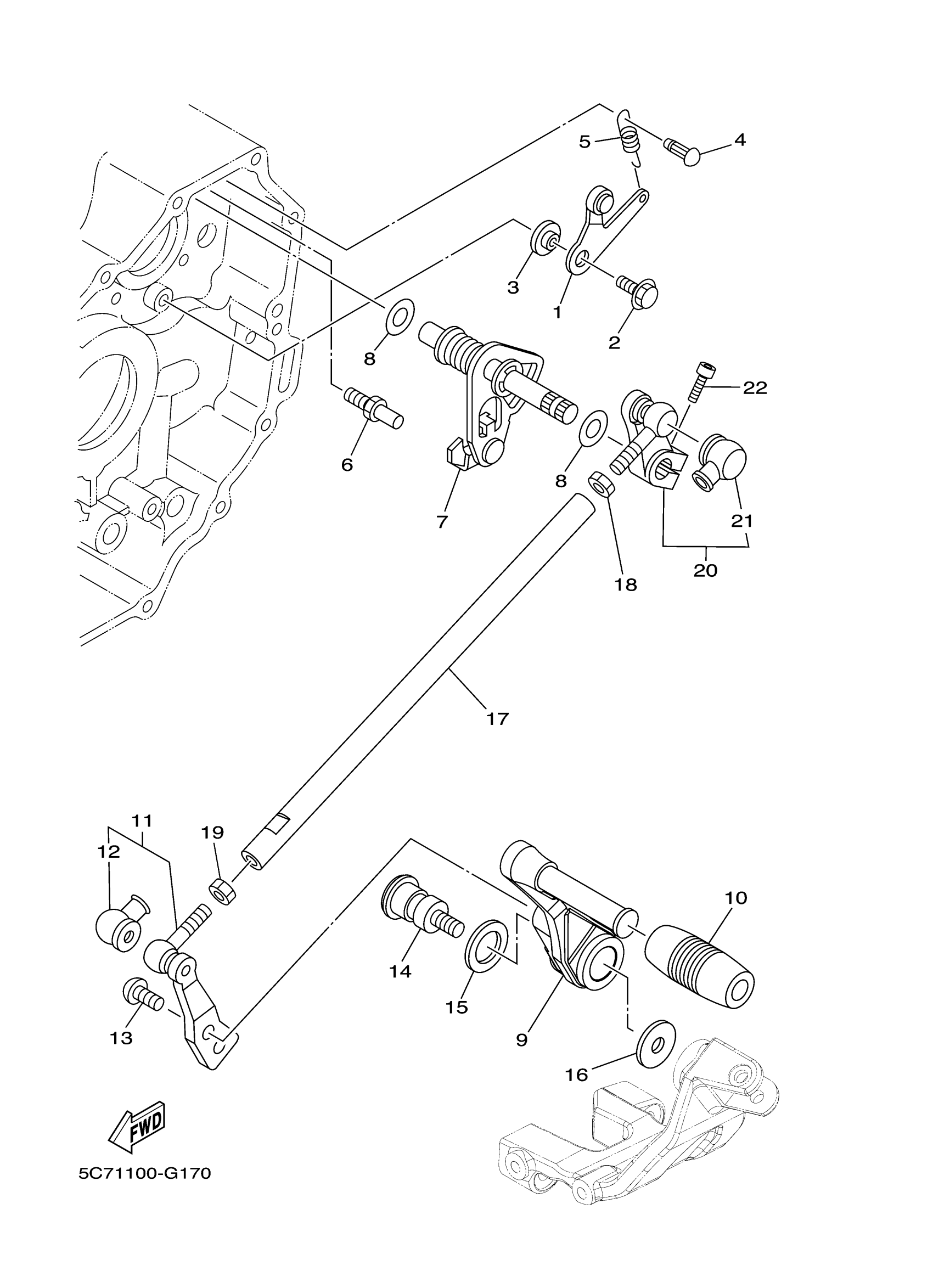

Yamaha XV19CFCB (RAIDER BULLET COWL CA) 30BW 2015 SHIFT SHAFT Diagram
#
Description
Price
1
STOPPER LEVER ASSY
1D7-18140-00-00
Unavailable
3
SPACER
4NX-18175-00-00
Unavailable
5
HANGER, SPRING
5C7-18144-00-00
Unavailable
6
STOPPER, SCREW
5VK-18127-00-00
Unavailable
11
KNOB, SHIFTER
5C7-18164-00-00
Unavailable
14
BOLT
5C7-27434-09-00
Unavailable
16
WASHER, PLATE
90201-08061-00
Unavailable
17
ROD, SHIFT
5C7-18115-00-00
Unavailable
18
. NUT
95380-08700-00
Unavailable
19
NUT(1KT)
90170-08358-00
Unavailable
20
SHIFT LEVER ASSY
5C7-18150-00-00
Unavailable
22
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
