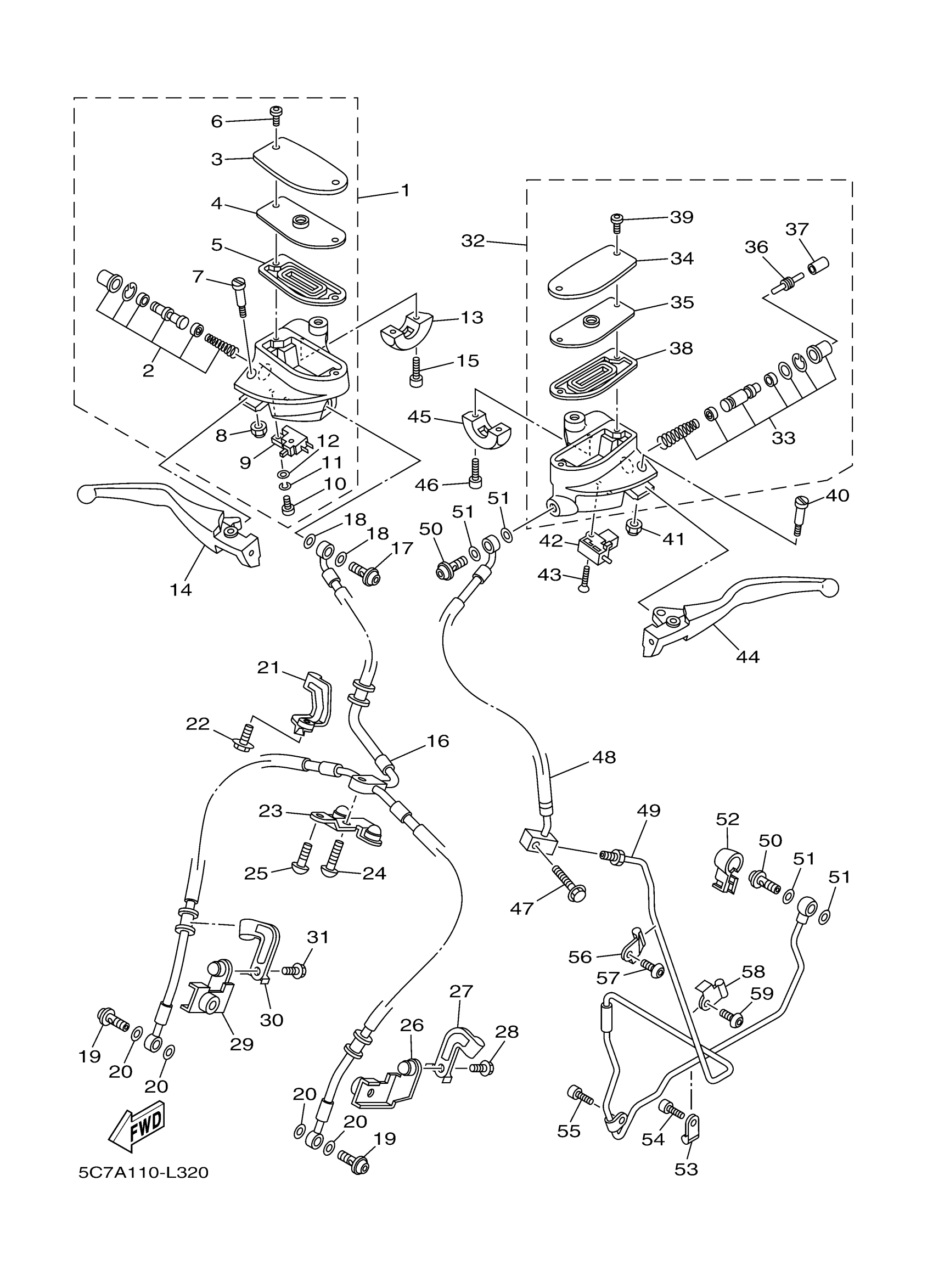

Yamaha XV19CFCB (RAIDER BULLET COWL CA) 30BW 2015 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

1D7-W2587-20-00

Unavailable

2

CYLINDER KIT, MASTER

5PX-W0041-00-00

$75.99

3

CAP, RESERVOIR

1D7-25852-20-00

Unavailable

4

PLATE, DIAPHRAGM

1D7-2585B-00-00

Unavailable

5

DIAPHRAGM, RESERVOIR

1D7-25854-01-00

$30.99

6

SCREW

1D7-2589H-00-00

$14.49

7

BOLT, LEVER

1D7-2589F-00-00

Unavailable

8

NUT, U(4NK)

95604-06100-00

$8.49

9

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

10

SCREW, PAN HEAD

98511-04012-00

Unavailable

11

WASHER(6TA)

92907-04100-00

$8.49

12

WASHER(JF2)

92907-04600-00

$1.71

13

HOLDER

1D7-26467-20-00

Unavailable

14

LEVER 2

1D7-83922-10-00

$138.99

15

BOLT,SOCKET

91317-06025-00

$5.60

16

HOSE, BRAKE 1

5C7-25872-00-00

Unavailable

17

BOLT, UNION

90401-10172-00

Unavailable

18

GASKET

90430-10005-00

Unavailable

19

BOLT, UNION

90401-10172-00

Unavailable

20

GASKET

90430-10005-00

Unavailable

21

HOLDER, BRAKE HOSE

5C7-25886-00-00

Unavailable

22

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

23

HOLDER, BRAKE HOSE

5C7-25887-00-00

Unavailable

24

. BOLT, FLANGE

95027-06020-00

Unavailable

25

BOLT, FLANGE

90105-06090-00

Unavailable

26

HOLDER, BRAKE HOSE 1

5C7-25875-00-00

Unavailable

27

STAY

5C7-25192-00-00

Unavailable

28

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

29

HOLDER, BRAKE HOSE 2

5C7-25876-00-00

Unavailable

30

STAY 2

5C7-2519F-00-00

Unavailable

31

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

32

MASTER CYLINDER SUB ASSY

1D7-W2645-20-00

Unavailable

33

CYLINDER KIT, MASTER (CLUTCH)

5JW-W0099-00-00

Unavailable

34

CAP, RESERVOIR

1D7-25852-70-00

Unavailable

35

PLATE, DIAPHRAGM

1D7-2585B-10-00

Unavailable

36

ROD, PUSH

1D7-26464-00-00

Unavailable

37

BUSH

3GM-26455-00-00

Unavailable

38

DIAPHRAGM, RESERVOIR

1D7-25854-11-00

Unavailable

39

SCREW

1D7-2589H-00-00

$14.49

40

BOLT, LEVER

1D7-2589F-00-00

Unavailable

41

NUT, U(4NK)

95604-06100-00

$8.49

42

SWITCH

3YX-82917-01-00

Unavailable

43

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

44

LEVER 1

1D7-83912-10-00

Unavailable

45

HOLDER

1D7-26467-70-00

Unavailable

46

BOLT,SOCKET

91317-06025-00

$5.60

47

BOLT, WASHER BASED(4EB)

90105-06791-00

Unavailable

48

HOSE, CLUTCH 1

5C7-26472-00-00

Unavailable

49

HOSE, CLUTCH 2

5C7-26473-00-00

Unavailable

50

BOLT, UNION

90401-10172-00

Unavailable

51

GASKET

90430-10005-00

Unavailable

52

COVER

1D7-26477-00-00

Unavailable

53

HOLDER

1D7-26475-00-00

Unavailable

54

BOLT (33M)

91312-06014-00

Unavailable

55

BOLT (33M)

91312-06014-00

Unavailable

56

HOLDER, 2

5C7-26481-00-00

Unavailable

57

BOLT,HEX. SOCKET BUTTON

90111-06103-00

Unavailable

58

HOLDER, 3

5C7-26482-00-00

Unavailable

59

BOLT,HEX. SOCKET BUTTON

90111-06103-00

Unavailable
