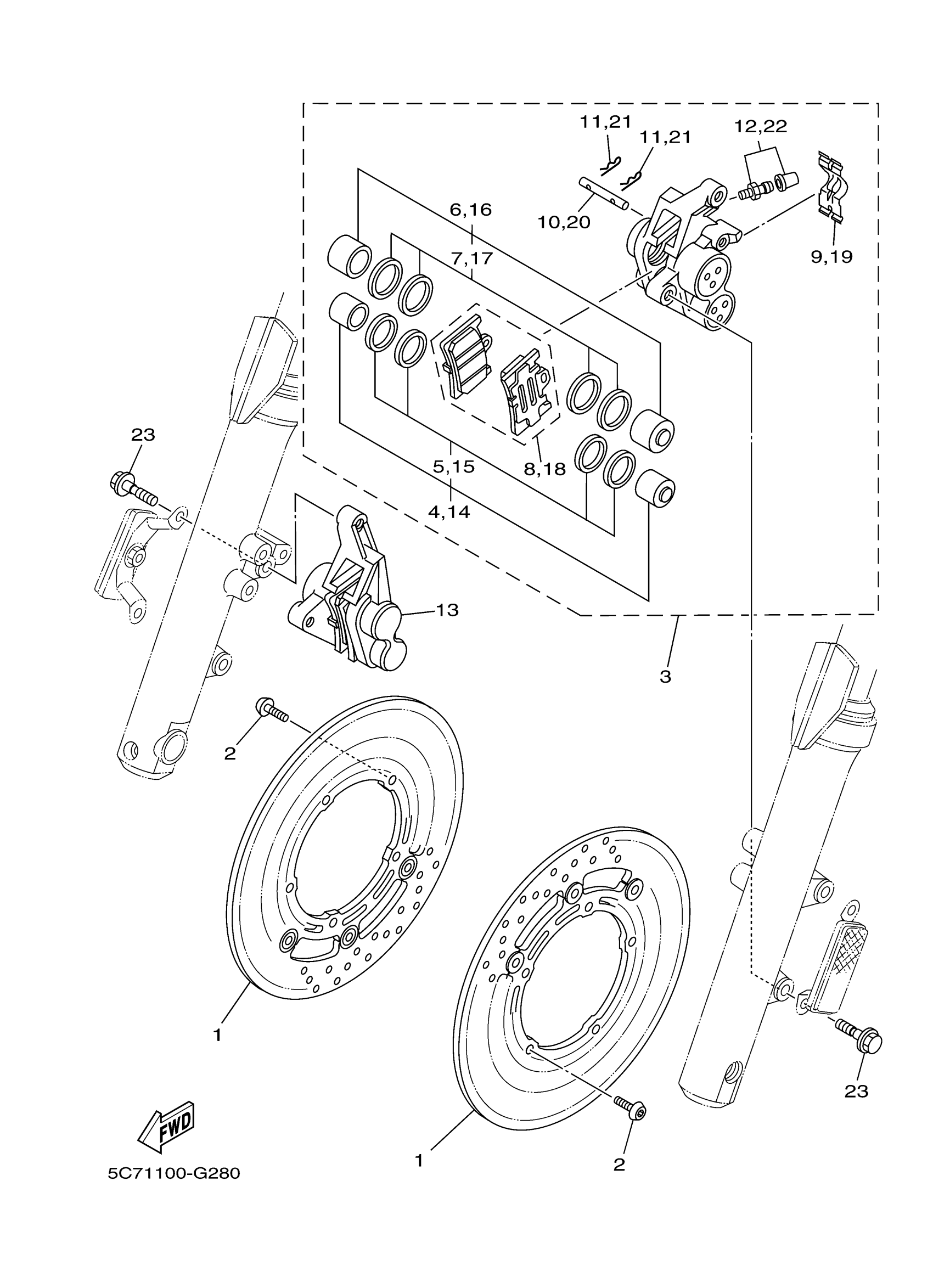

Yamaha XV19CBO (RAIDER SCL) 1US1 2012 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

5VX-2581T-10-00

Unavailable

2

SCREW

90149-08052-00

$5.59

3

CALIPER ASSY (LEFT)

1D7-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

5

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

6

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

7

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

8

BRAKE PAD KIT

1D7-25805-00-00

Unavailable

9

SUPPORT, PAD

4SV-25919-00-00

$20.59

10

PIN, PAD

4SV-25924-00-00

$34.81

11

CLIP, PAD PIN

3GM-25925-00-00

$9.15

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

CALIPER ASSY (RIGHT)

1D7-2580U-00-00

Unavailable

14

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

15

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

16

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

17

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

18

BRAKE PAD KIT

1D7-25805-00-00

Unavailable

19

SUPPORT, PAD

4SV-25919-00-00

$20.59

20

PIN, PAD

4SV-25924-00-00

$34.81

21

CLIP, PAD PIN

3GM-25925-00-00

$9.15

22

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

23

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
