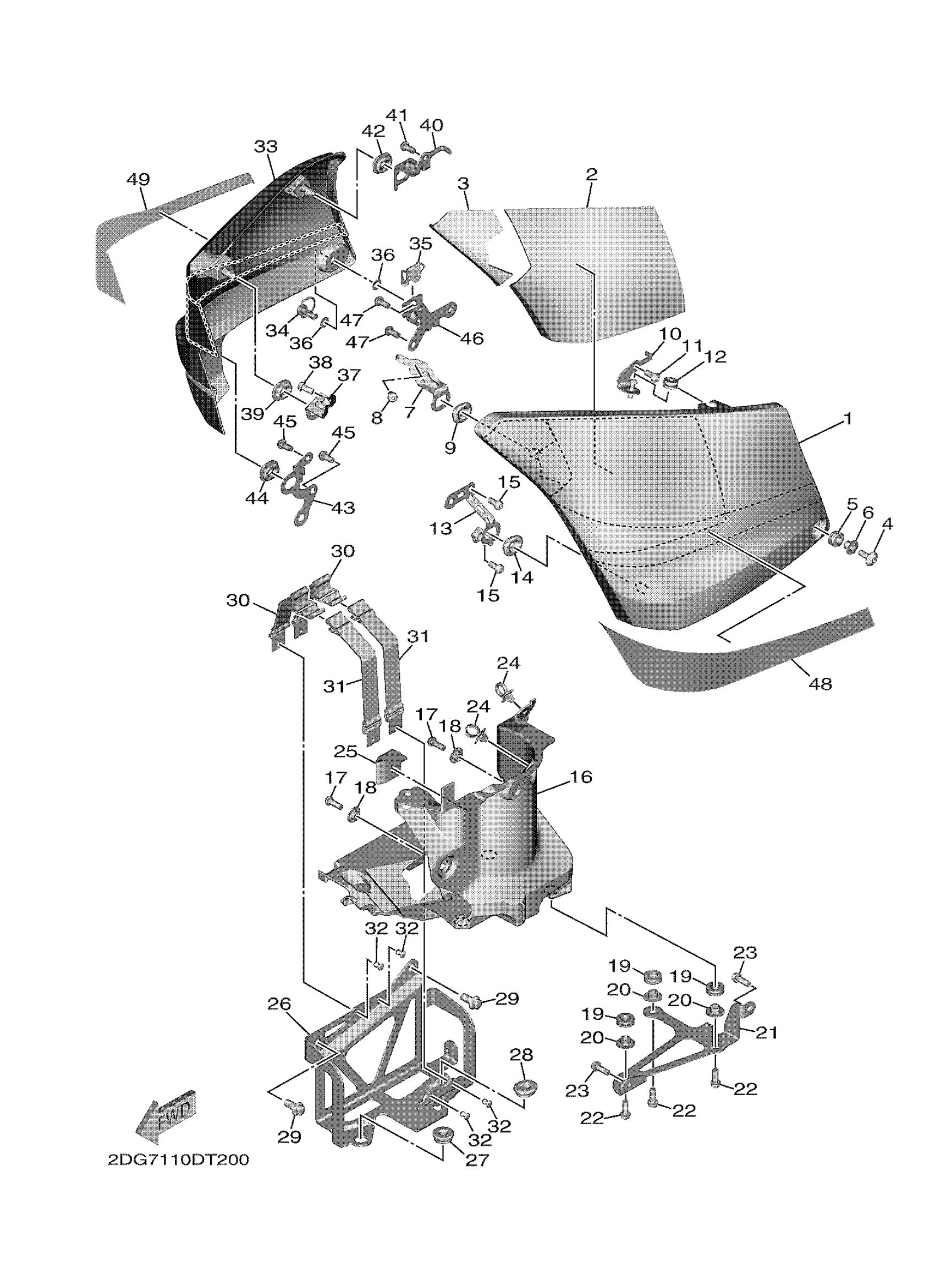

Yamaha XV19BJS (STAR ELUDER) 2DG7 2018 SIDE COVER Diagram
#
1
COVER, SIDE 1
2DF-Y2171-10-P0
Unavailable
2
SEAL 3
2DF-2173M-00-00
Unavailable
7
BRKT 7
2DF-2172U-00-00
Unavailable
10
BRACKET 1
2DF-2172K-00-00
Unavailable
12
GROMMET
90480-10015-00
Unavailable
16
BOX, BATTERY
2DF-2177G-00-00
Unavailable
17
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
18
COLLAR
90387-06170-00
Unavailable
19
GROMMET
90480-13004-00
Unavailable
20
COLLAR (3Y2)
90387-07789-00
Unavailable
21
PANEL, 5
2DF-2172J-00-00
Unavailable
22
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
23
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
24
CLAMP
90464-12001-00
Unavailable
25
DAMPER
2DF-21747-00-00
Unavailable
26
BRACKET 5
2DF-2172R-00-00
Unavailable
27
GROMMET
90480-13014-00
Unavailable
28
GROMMET(4BH)
90480-01559-00
Unavailable
29
BOLT, FLANGE
95022-08016-00
Unavailable
30
BAND, BATTERY
2DF-82131-00-00
Unavailable
31
BAND ASSY
2DF-82130-00-00
Unavailable
32
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
33
COVER, SIDE 2
2DF-Y2172-10-P0
Unavailable
34
HEAD
3FV-28386-00-00
Unavailable
35
PLATE, SPRING
4XV-2177L-01-00
Unavailable
36
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
37
BRKT 8
2DF-2172V-00-00
Unavailable
40
BRACKET 2
2DF-2172L-00-00
Unavailable
43
BRACKET 4
2DF-2172N-00-00
Unavailable
46
BRKT 6
2DF-2172T-00-00
Unavailable
48
GRAPHIC 1
2DG-2173E-00-00
Unavailable
49
GRAPHIC 2
2DG-2173F-00-00
Unavailable
